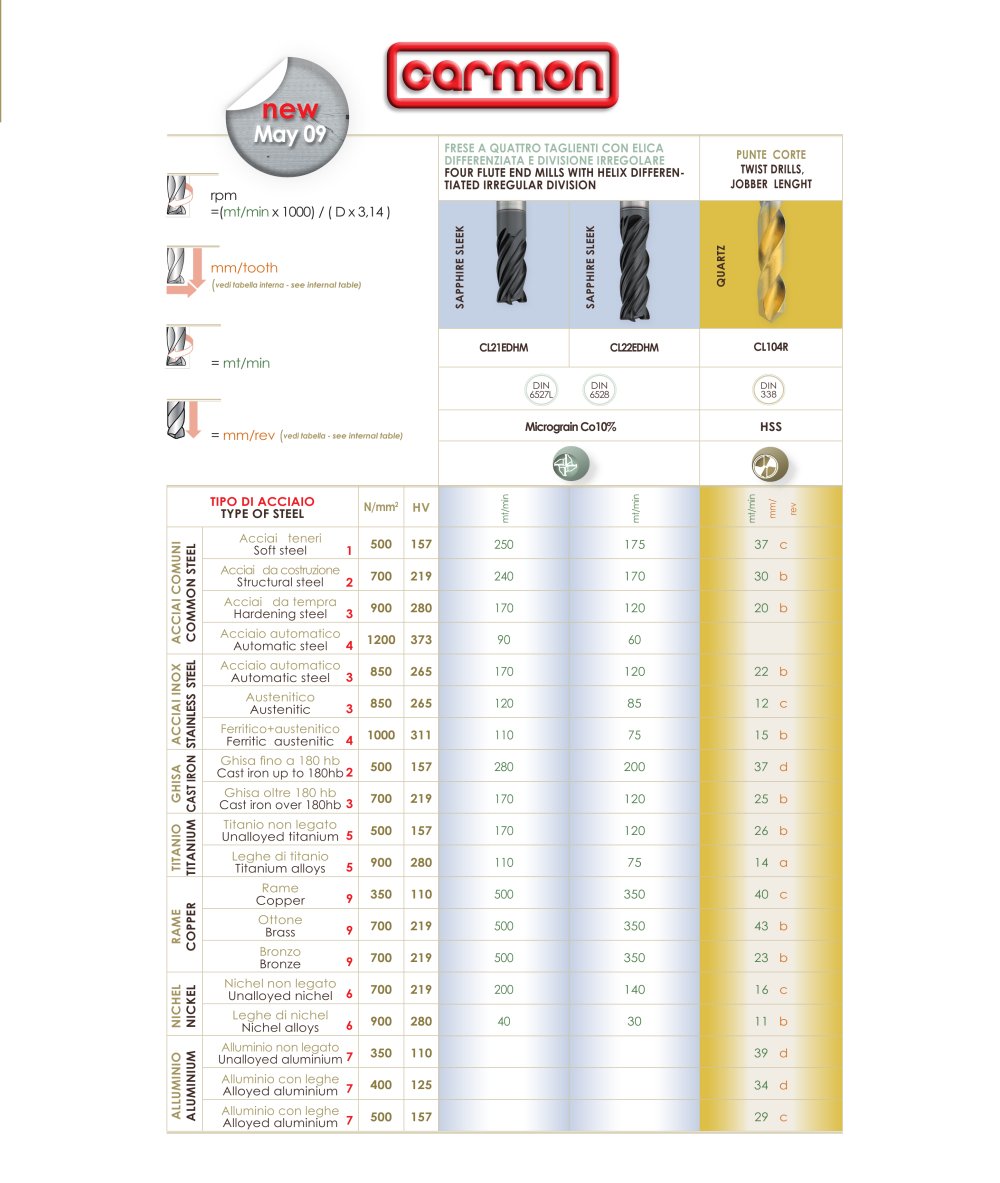

Overview: This document provides technical specifications and parameters for various cutting tools, including four flute end mills and twist drills. It includes details on materials, dimensions, and recommended usage parameters.

Specifications:

Four Flute End Mills: These tools feature a differentiated helix and irregular division, designed for efficient milling operations. They are available in various diameters and lengths, with specific codes for ordering.
Twist Drills: Short twist drills with jobber length specifications are detailed, including dimensions and material composition.

Materials and Hardness:

Steel Types: The document lists different types of steel, including soft, structural, hardening, and automatic steel, with their respective hardness values in N/mm² and HV.
Stainless Steel: Includes automatic, austenitic, and ferritic-austenitic types with hardness specifications.
Other Materials: Information on cast iron, titanium, copper, nickel, and aluminum, including their unalloyed and alloyed forms, is provided with hardness values.

Operational Parameters:

Feed Rates: Tables provide recommended feed data in mm/tooth for milling and mm/rev for drilling, based on tool diameter and type of milling or drilling operation.
Speed Calculations: The document includes formulas for calculating RPM based on cutting speed and tool diameter.

Product Codes and Ordering: Specific product codes for ordering tools are provided, along with dimensions and pricing information for different tool sizes.

Additional Information: The document references DIN standards for tool specifications and includes contact information for Carmon S.r.l., the tool manufacturer.
