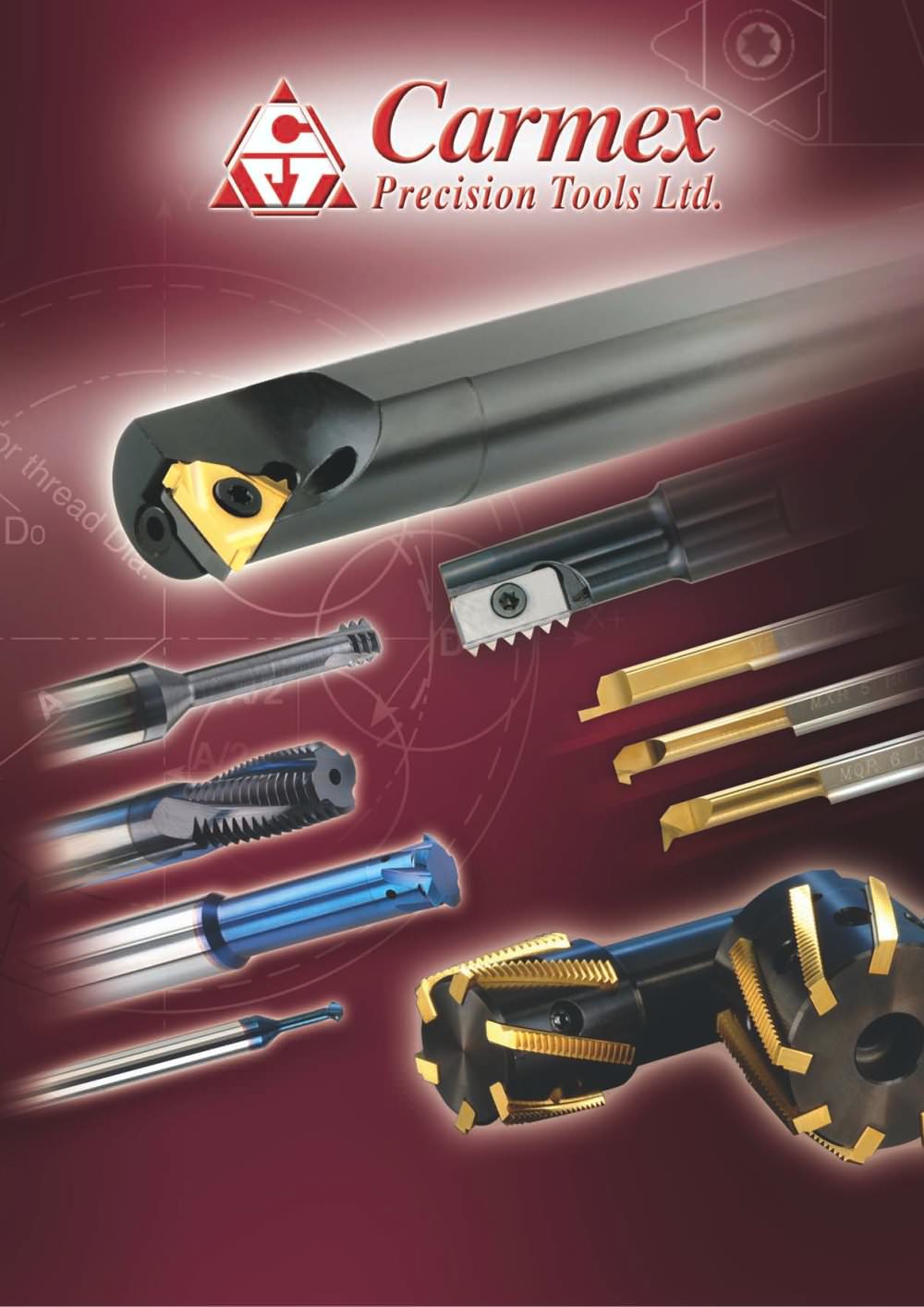

Carmex Company profile Leaflet
12Pages

tr.row {} td.cell {} div.block {} div.paragraph {}

Carmex Precision Tools Ltd. is a leading manufacturerof high quality cutting tools. The company was founded in 1988 in Maalot, located in the beautiful North West part of Israel. > Carmex specializes in the production of threading tools. Our product lines include Thread Turning inserts and tool holders, Mill-Thread inserts and tool holders, Mill-Thread Solid Carbide and Spiral Mill-Thread. In addition to threading, we produce grooving tools, Mini Chamfer mills and the Tiny-Tools line of small boring bars for threading, turning, grooving small parts.The company's different product lines are...

Carmex Thread-Turning product line is recognizedworldwide for its full range of top quality laydown triangular inserts answering to most of the threading standards. A wide range of threading tool holders for external or internal threads, and carbide shank tool holders.These inserts deliver high quality threads and areavailable in a wide variety of grades and coatings to fit all manufacturing applications. > Inserts for threading bores as small as 6mmdiameter. A combination of ground profile and sintered chipbreaker threading inserts. Type B inserts are availble in BMA -TiAIN grade....

Same tool holder for grooving and threading.Minimum investment in tooling. Three cutting edges. Precision ground. Improved chip control. Inserts for external and internal Snap Ringgrooves are also available. CARBIDE GRADE: BXC (P30 - P50, K25 - K40)PVD TiN coated grade for low cutting speed. Works well with a wide range of stainless steels. >

Carmexs Mill-Thread line is recognized worldwidefor its full range of high quality inserts and tool holders answering to all the common thread standards and more. Five different insert length sizes from 12mmup to 40mm.Prismatic shape of insert's tail ensures exactand reliable clamping in the tool holder.Most inserts are double sided, having twocutting edges.Longer tool life thanks to a special multilayercoating process.Inserts for NPS & NPSF threads also available. A wide range of tool holders, steel shank orcarbide shank, for one insert or more. All the tool holders include a built-in...

Spiral fluted tool holders hold 2 to 9 inserts in acomparatively small cutting diameter.The unique clamping method enables optimalindexability.These tools reduce vibration and chatter. High grade finish is achieved in all applications:threading, roughing and finishing.MT7 Sub-Micron Grade with Titanium AluminiumNitride multi-layer coating. > Milling a 90 shoulder with variety of corner radiuses.Maximum depth of cut in one tool pass - 37 mm. >

Sub-micron grade with Titanium AluminiumNitride multi-layer coating (ISO K10-K20). To be run at medium to high cutting speeds. General purpose for all materials. > Spiral flutes allow smooth cutting action.Shorter machining time due to multi, 3 to 6,spiral flutes.2.2 mm and up cutting diameter. Longer tool life due to special multi-layer coating. Coolant fluid washes the chips out of hole. Increased tool life. These unique thread mills enable the coolantfluid stream to efficiently reach the cutting edge, for smooth cutting operations. > Especially for threading on through holesӔ.Direct chip...

The tools are available with internal coolantthrough the flutes for smooth cutting operations. Specially designed solid-carbide thread mills for theproduction of internal threads in very small bores. Due to the unique tool design, accurate geometries and high quality, the following are achieved:Threading from M1.0 x 0.25 (bore diameter 0.75mm).Working at high cutting speed. Short machining time. Low cutting forces thanks to the short profile. No broken taps. Threading up to shoulder in blind holes. Machining of hardened materials. Including tools for the production of dentalimplants. A...

MILL-THREADSOLID CARBIDE > For Threading and Grooving Deep Parts Threading > Partial Profile 60˚ Same tool can produce a wide range of threads and pitches.Same tool can produce both External and Internalthreads. Enables machining in deep holes.Coolant through the flutes is very effective fordeep holes.Spiral flutes allow smooth cutting action. Shorter machining time due to multi, 3 to 5,flutes.Longer tool life due to special multi-layer coating. 60 ˚ Groove Milling Full Radius Groove Milling Offered in Carmex advanced MT8 Grade.This grade delivers extremely high heat resistant and smooth...

Optimal for deburring and back chamfering.Double side cutting. Spiral flute allows smooth cutting action. Offered in Carmex advanced MT8 Grade.This grade delivers extremely high heat resistant and smooth cutting operation, for high performance, and normal machining conditions. General purpose for all materials. >

Solid Carbide tools for working in small bores (from 1.0mm). These tools are made for the high tech, medical and small components industry. They are used in maching centers or conventional machines. These tools can perform the following applications: All tools include cooling channel on the shank, enablingthe cooling fluid to reach efficiently the cutting edge, for easy chip removal and smooth cutting operations. The Tiny Tools are available in the excellent BXC TiNcoated grade, for machining a wide range of stainless steels in low cutting speeds. BoringBack Turning Profiling and Boring...

2008Info 09/2008 . on Tools Ltd i s i ght CARMEX Prec i Copyr 1st Hacharoshet St . , Maalot Industr i al Zone, 24952, ISRAEL . Tel (972) 4-9077400, Fax (972) 4-9077440 . E-Ma i l : i nfo@carmex . com Web s i te : www . carmex . comPostal address : P . O . Box 404, Maalot 24952, ISRAEL >
