Discharge line mufflers
3Pages

{{requestButtons}}

Catalog excerpts

Discharge line mufflers - 1

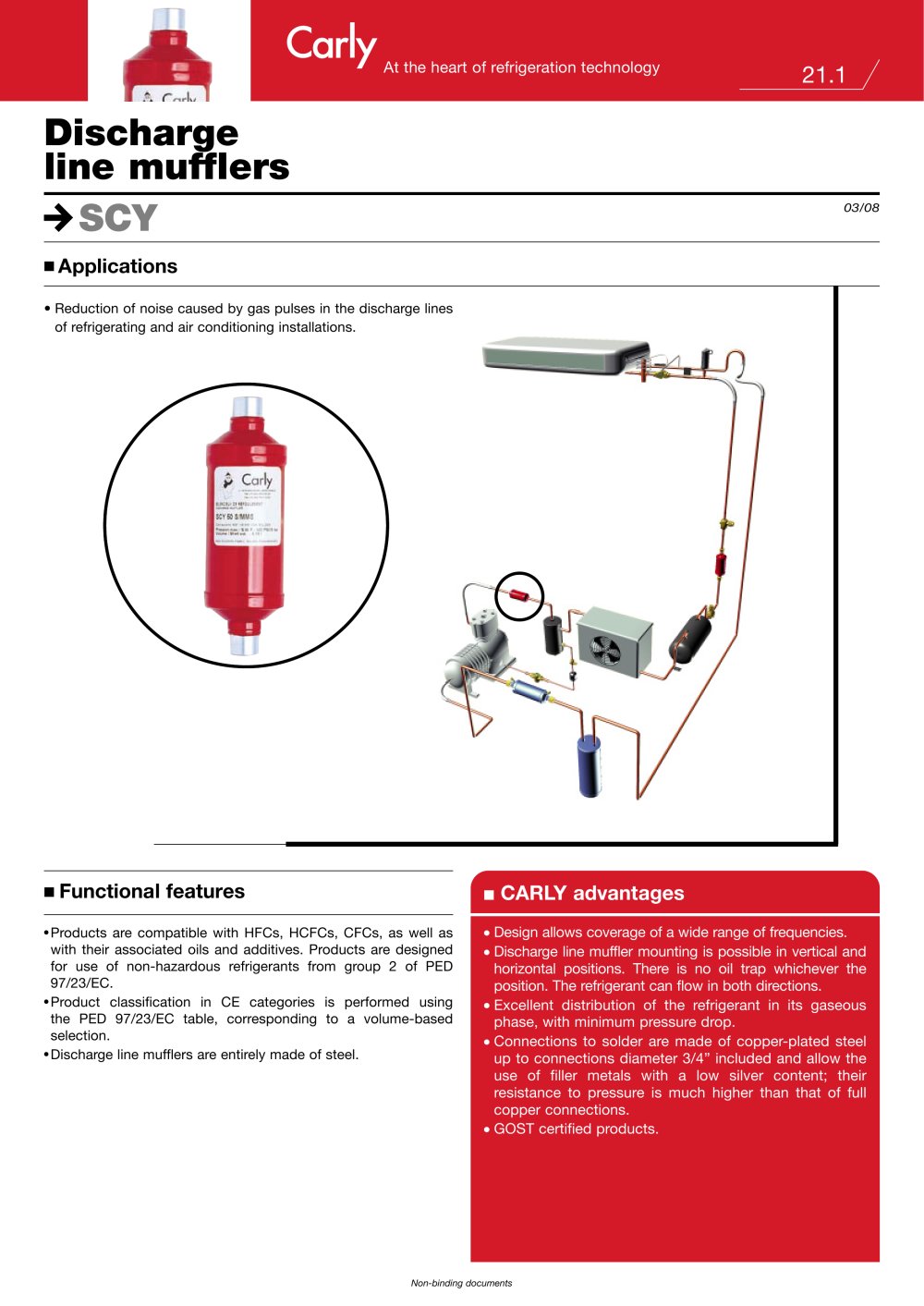

21.1 n Functional features n CARLY advantages Discharge line mufflers SCY n Applications • Reduction of noise caused by gas pulses in the discharge lines of refrigerating and air conditioning installations. C o Products are compatible with HFCs, HCFCs, CFCs, as well as with their associated oils and additives. Products are designed for use of non-hazardous refrigerants from group 2 of PED 97/23/EC. o Product classification in CE categories is performed using the PED 97/23/EC table, corresponding to a volume-based selection. o Discharge line mufflers are entirely made of steel. o Design allows coverage of a wide range of frequencies. o Discharge line muffler mounting is possible in vertical and horizontal positions. There is no oil trap whichever the position. The refrigerant can flow in both directions. o Excellent distribution of the refrigerant in its gaseous phase, with minimum pressure drop. o Connections to solder are made of copper-plated steel up to connections diameter 3/4” included and allow the use of filler metals with a low silver content; their resistance to pressure is much higher than that of full copper connections. o GOST certified products. At the heart of refrigeration technology 03/08 Non-binding documents

Open the catalog to page 1
Discharge line mufflers - 2

21.2 * The discharge line mufflers are to be mounted on the discharge gas line between the compressor and the condenser; the optimum muffler position will be determined according to your installation’s features, by getting in touch with your distributor or with CARLY’s technical services. * In the case of a horizontal mounting, it is recommended to perform an inner connection at the intake point, and an outer connection at the muffler outlet point (refer to drawing below, item 2). * Provide for efficient clamping before the intake and after the outlet of the mufflers (refer to drawing...

Open the catalog to page 2
Discharge line mufflers - 3

21.3 Discharge line mufflers SCY n Technical features C 03/08 Non-binding documents At the heart of refrigeration technology L (1) Chapter "Connection features and drawings" (refer to chapter 114). (1) The working pressure is limited to the PS BT value when working temperature is lower than or equal to TS BT value. (2) Classification by volume, according to PED 97/23/EC (refer to chapter 0 page 7). CARLY references Connections types (1) Dimensions (mm) ø L Net weight (kg) SCY 30 S SCY 30 MMS 2 53 162,5 0,35 SCY 40 S SCY 40 MMS 2 53 162,5 0,35 SCY 50 S/MMS 2 53 166,5 0,35 SCY 60 S SCY 60 MMS...

Open the catalog to page 3
