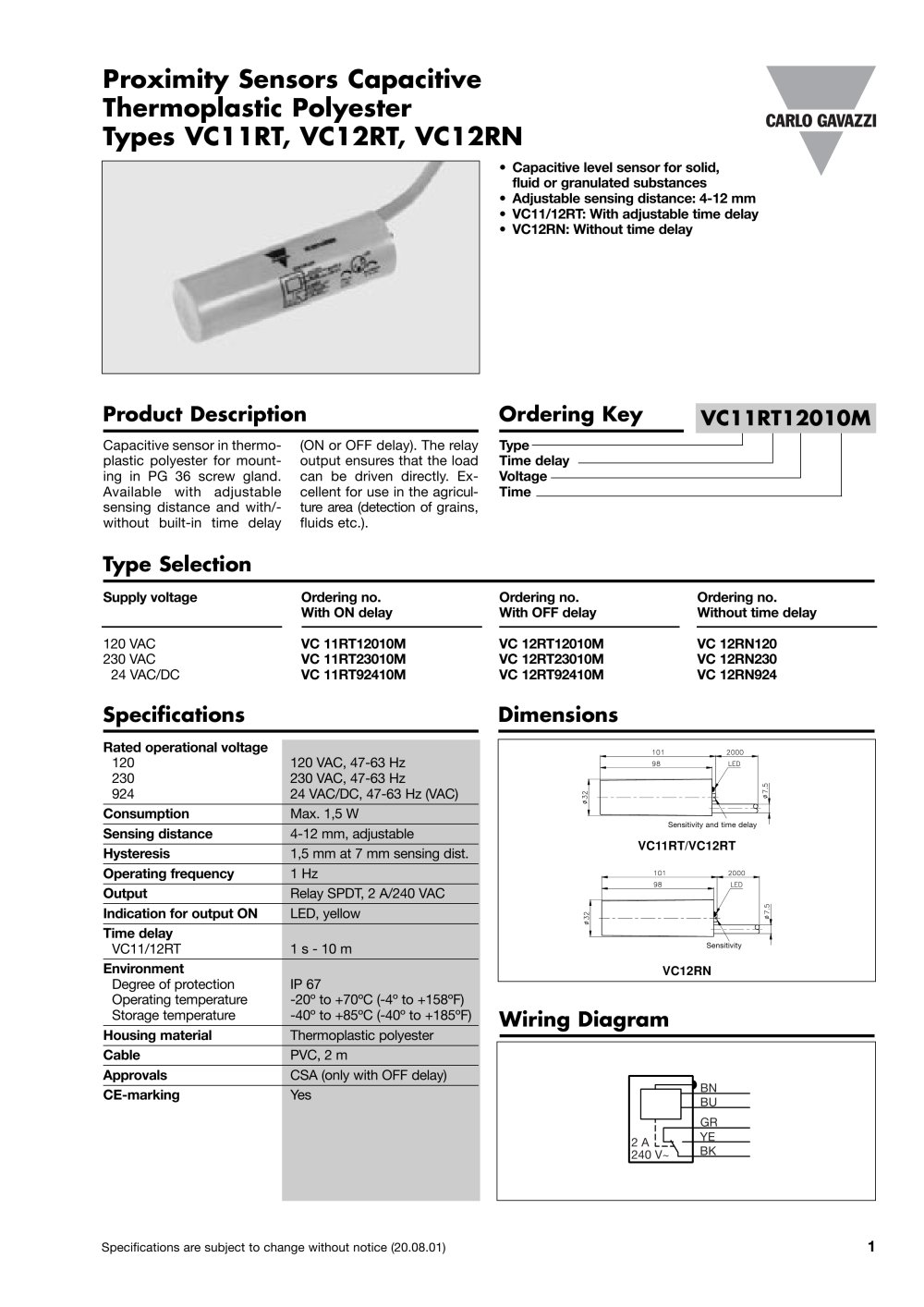

Specifications are subject to change without notice (20.08.01) 1 Proximity Sensors Capacitive • Capacitive level sensor for solid, fluid or granulated substances • Adjustable sensing distance: 4-12 mm • VC11/12RT: With adjustable time delay • VC12RN: Without time delay Product Description Ordering Key VC11RT12010M Capacitive sensor in thermoplastic polyester for mounting in PG 36 screw gland. Available with adjustable sensing distance and with/- without built-in time delay (ON or OFF delay). The relay output ensures that the load can be driven directly. Excellent for use in the agriculture area (detection of grains, fluids etc.). Type Time delay Voltage Time Specifications Supply voltage Ordering no. Ordering no. Ordering no. With ON delay With OFF delay Without time delay 120 VAC VC 11RT12010M VC 12RT12010M VC 12RN120 230 VAC VC 11RT23010M VC 12RT23010M VC 12RN230 24 VAC/DC VC 11RT92410M VC 12RT92410M VC 12RN924 Type Selection Rated operational voltage 120 120 VAC, 47-63 Hz 230 230 VAC, 47-63 Hz 924 24 VAC/DC, 47-63 Hz (VAC) Consumption Max. 1,5 W Sensing distance 4-12 mm, adjustable Hysteresis 1,5 mm at 7 mm sensing dist. Operating frequency 1 Hz Output Relay SPDT, 2 A/240 VAC Indication for output ON LED, yellow Time delay VC11/12RT 1 s - 10 m Environment Degree of protection IP 67 Operating temperature -20º to +70ºC (-4º to +158ºF) Storage temperature -40º to +85ºC (-40º to +185ºF) Housing material Thermoplastic polyester Cable PVC, 2 m Approvals CSA (only with OFF delay) CE-marking Yes Thermoplastic Polyester Types VC11RT, VC12RT, VC12RN VC11RT/VC12RT VC12RN Wiring Diagram 2 A 240 V~ BN BU GR YE BK Sensitivity and time delay Dimensions Sensitivity

2 Specifications are subject to change without notice (20.08.01) Mode of Operation VC11RT (See operation diagram). Power supply is applied to the sensor (brown and blue cables). When sensor is not activated, the relay operates (connection between black and yellow cables) and LED lights. When sensor is activated the time measurement starts and LED flashes. After expiration of the set time (0-10 min.), the relay releases (connection between black and grey cables) and LED turns off. The relay remains released until sensor is activated again. VC12RN (See operation diagram). Power supply is applied...
