Motor Controllers TSE6-1A1113100

Motor Controllers TSE6-1A1113100

Product catalog summary

Specifications and Overview:
The TSE6-1 is a transformer soft starter designed to switch on single-phase transformers without inrush current. It supports transformers with EI-cut strip-wound cores or toroidal cores and can handle parallel connections of different transformer types. The device is available in three versions: a compact version for currents up to 16 A with an internal thyristor and bypass relay, and versions for higher currents using external thyristors or semiconductor relays.

Key Features:

Rated operational voltage: 110 VAC to 500 VAC, 50/60 Hz.
Rated operational current: up to 63 A.
Remote-On input: 4-32 VDC.
LED indication for operation and alarm.
Patented soft start procedure with transformer premagnetisation.

Mode of Operation:
The TSE6-1 soft-starts 1-phase transformers and is calibrated for transformers with EI, MI, or UI cores. It can be controlled via direct voltage or a volt-free contact. The device includes a bypass relay to prevent energy loss and automatically detects if a bypass contactor is connected. It monitors main voltage and turns off if voltage limits are exceeded, with LED indicators for status and faults.

Environmental and Housing Specifications:

Degree of protection: IP 20.
Ambient temperature: 0° to +50°C (32° to 122°F).
Housing material: PC/ABS blend, grey color.
Dimensions: 120 x 45 x 110 mm for RTH1, 120 x 90 x 110 mm for RTH2 and RTH3.

Thermal and Electrical Specifications:

Operational voltage range: 42 to 530 VAC.
Non-repetitive peak voltage: 1200 Vp.
Power factor at rated voltage: ≥ 0.5.
External thyristor modules (RTH1, RTH2, RTH3) are required for currents > 16 A.

Installation and Wiring:
The TSE6-1 can be installed on a DIN-rail and does not require a main switch when using the remote-On input. Fast fuses or circuit breakers with B characteristics are recommended for operational current protection. The device automatically detects bypass contactors and can be configured for automatic or manual reset after faults using internal jumpers.

Conclusion:
The TSE6-1 transformer soft starter is a versatile and efficient solution for managing inrush currents in single-phase transformers, offering flexibility in control and robust protection features.

Catalog excerpts

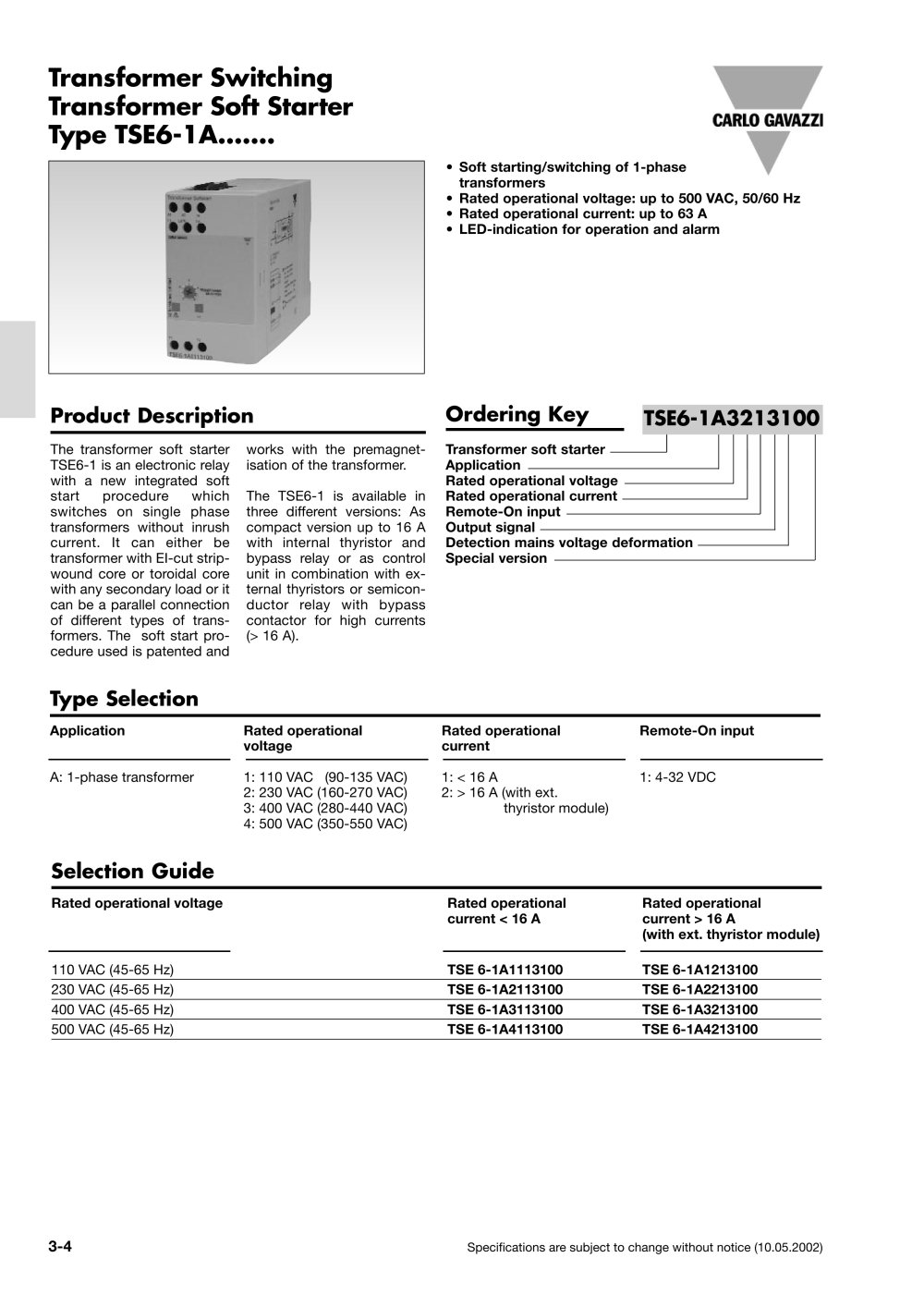

Soft starting/switching of 1-phasetransformersՕRated operational voltage: up to 500 VAC, 50/60 HzRated operational current: up to 63 AՕLED-indication for operation and alarm > Transformer soft starterApplicationRated operational voltageRated operational current Remote-On input Output signal Detection mains voltage deformation Special version > The transformer soft starterTSE6-1 is an electronic relay with a new integrated soft start procedure whichswitches on single phasetransformers without inrush current. It can either be transformer with EI-cut strip- wound core or toroidal core with any secondary load or it can be a parallel connection of different types of trans- formers. The soft start pro- cedure used is patented and works with the premagnet-isation of the transformer.The TSE6-1 is available inthree different versions: As compact version up to 16 Awith internal thyristor andbypass relay or as control unit in combination with ex- ternal thyristors or semicon- ductor relay with bypass contactor for high currents (> 16 A). > ApplicationRated operational Rated operational Remote-On input voltagecurrent A: 1-phase transformer1: 110 VAC (90-135 VAC)1: < 16 A1: 4-32 VDC 2: 230 VAC (160-270 VAC)2: > 16 A (with ext.3: 400 VAC (280-440 VAC)thyristor module) 4: 500 VAC (350-550 VAC) > Rated operational voltageRated operationalRated operationalcurrent < 16 Acurrent > 16 A (with ext. thyristor module) 110 VAC (45-65 Hz) TSE 6-1A1113100TSE 6-1A1213100 230 VAC (45-65 Hz) TSE 6-1A2113100TSE 6-1A2213100 400 VAC (45-65 Hz) TSE 6-1A3113100TSE 6-1A3213100 500 VAC (45-65 Hz) TSE 6-1A4113100TSE 6-1A4213100 > Specifications are subject to change without notice (10.05.2002) size="-1">
