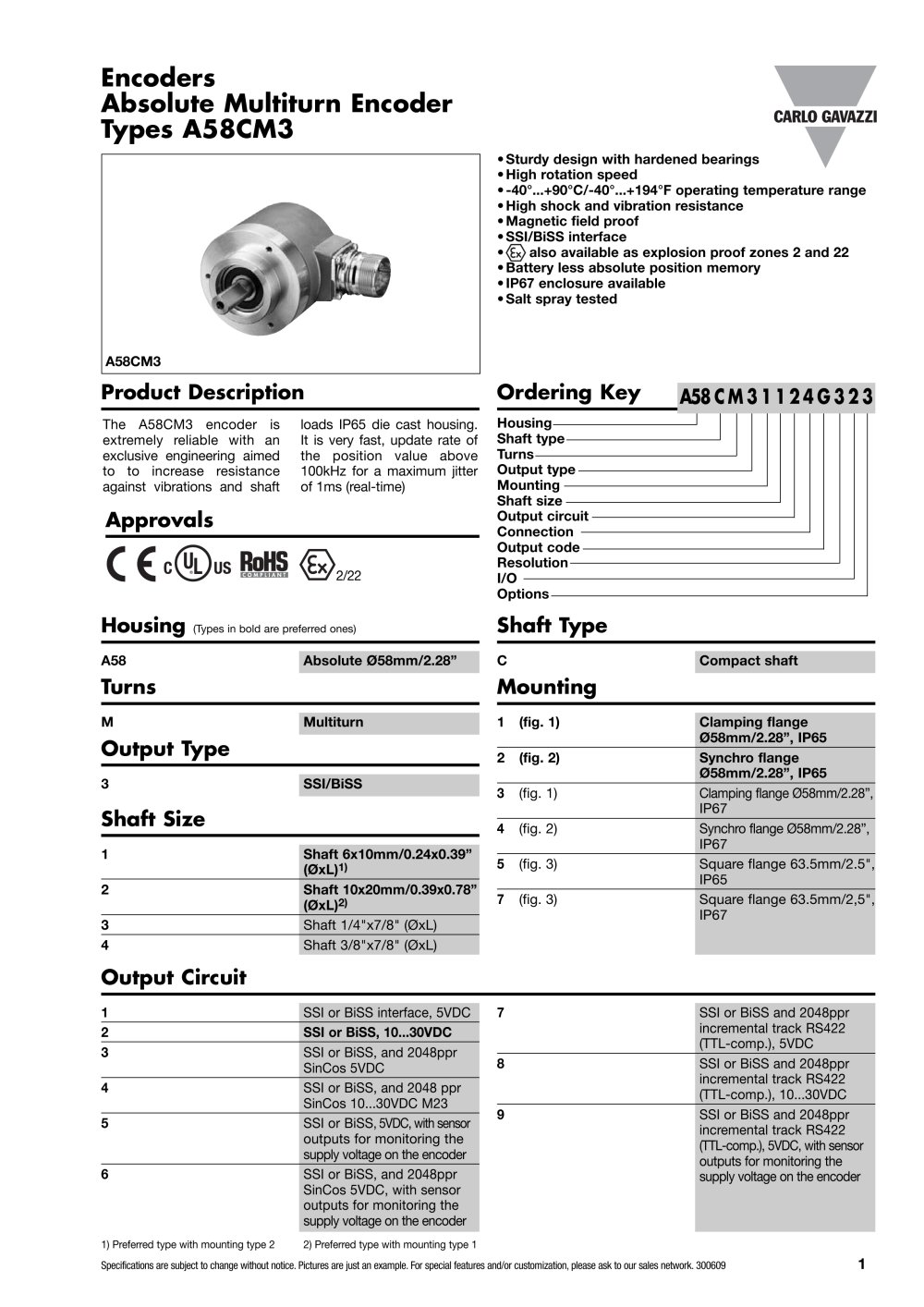

Encoders Absolute Multiturn Encoder Types A58CM3
4Pages

Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 300609 1 Product Description Ordering Key • Sturdy design with hardened bearings • High rotation speed • -40°...+90°C/-40°...+194°F operating temperature range • High shock and vibration resistance •Magnetic field proof • SSI/BiSS interface • also available as explosion proof zones 2 and 22 •Battery less absolute position memory • IP67 enclosure available • Salt spray tested Housing (Types in bold are preferred ones) A58 C M 3 1 1 2 4 G 3 2 3 Housing Shaft type Turns Output type Mounting Shaft size Output circuit Connection Output code Resolution I/O Options Encoders Absolute Multiturn Encoder Types A58CM3 The A58CM3 encoder is extremely reliable with an exclusive engineering aimed to to increase resistance against vibrations and shaft loads IP65 die cast housing. It is very fast, update rate of the position value above 100kHz for a maximum jitter of 1ms (real-time) Approvals A58CM3 A58 Absolute Ø58mm/2.28” Shaft Type C Compact shaft Turns M Multiturn Mounting 1 (fig. 1) Clamping flange Ø58mm/2.28”, IP65 2 (fig. 2) Synchro flange Ø58mm/2.28”, IP65 3 (fig. 1) Clamping flange Ø58mm/2.28”, IP67 4 (fig. 2) Synchro flange Ø58mm/2.28”, IP67 5 (fig. 3) Square flange 63.5mm/2.5", IP65 7 (fig. 3) Square flange 63.5mm/2,5", IP67 Shaft Size 1 Shaft 6x10mm/0.24x0.39” (ØxL)1) 2 Shaft 10x20mm/0.39x0.78” (ØxL)2) 3 Shaft 1/4"x7/8" (ØxL) 4 Shaft 3/8"x7/8" (ØxL) Output Circuit 1 SSI or BiSS interface, 5VDC 2 SSI or BiSS, 10...30VDC 3 SSI or BiSS, and 2048ppr SinCos 5VDC 4 SSI or BiSS, and 2048 ppr SinCos 10...30VDC M23 5 SSI or BiSS, 5VDC, with sensor outputs for monitoring the supply voltage on the encoder 6 SSI or BiSS, and 2048ppr SinCos 5VDC, with sensor outputs for monitoring the supply voltage on the encoder 7 SSI or BiSS and 2048ppr incremental track RS422 (TTL-comp.), 5VDC 8 SSI or BiSS and 2048ppr incremental track RS422 (TTL-comp.), 10...30VDC 9 SSI or BiSS and 2048ppr incremental track RS422 (TTL-comp.), 5VDC, with sensor outputs for monitoring the supply voltage on the encoder 1) Preferred type with mounting type 2 2) Preferred type with mounting type 1 Output Type 3 SSI/BiSS 2/22

Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 300609 3 Encoders Absolute Multiturn Encoder Types A58CM3 Status output and LED Output driver Open collector, internal pull up resistor 22kÙ Permissible load -20mA Signal level high +V Signal level low <1V Active at Low Option incremental output (A/B), 2048ppr Sin/Cos -3dB frequency 400kHz Signal level 1Vpp (+20%) Short circuit proof Yes8) 8) Short circuit to 0V or to output, one channel at a time, supply voltage correctly applied Top...
