Electromechanical Relays RMIB0020012DC

Product catalog summary

Specifications
The document outlines the specifications for the Midi Industrial Relay Type RMI. 2-10 10A, a monostable relay suitable for a wide range of industrial applications. Key specifications include:

High switching power and small size.
12 A switching capacity with a lifespan of 50,000 cycles.
Available in 2 change-over contact configurations (DPDT).
AC coils range from 6 to 230 VAC, and DC coils from 5 to 110 VDC.
Dielectric strength of 3750 VAC between coil and contacts.
Standard features include LED, push with arm, and flag.
IP 40 protection and compliance with CE low voltage directive.
Approved by IMQ, UL, TÜV, and CSA.

Coil Characteristics
The relay is available with both DC and AC coil options, with specific nominal, pick-up, and drop-out voltages provided for each. The coil resistance varies with voltage, and the operating range is detailed in a diagram.

Contact Characteristics
The relay has a contact rating of 10 A at 250 VAC or 30 VDC, with a maximum switching current of 10 A. The initial contact resistance is 50 mΩ, and the maximum switching power is 2500 VA or 300 W. The relay's electrical life is rated at 100,000 cycles, while the mechanical life is 10 million cycles.

General Data
The relay operates at a nominal coil power of 0.9 W for DC and 1.2 VA for AC. It has an operating and release time of 25 ms max, and can function in ambient temperatures ranging from -55°C to +70°C. The relay is resistant to vibrations and shocks, and has a humidity tolerance of 35% to 95%.

Diagrams and Approvals
The document includes diagrams illustrating the coil operating range, electrical life, and maximum DC load breaking capacity. The relay is approved for use in the USA, Canada, Germany, and Italy.

Catalog excerpts

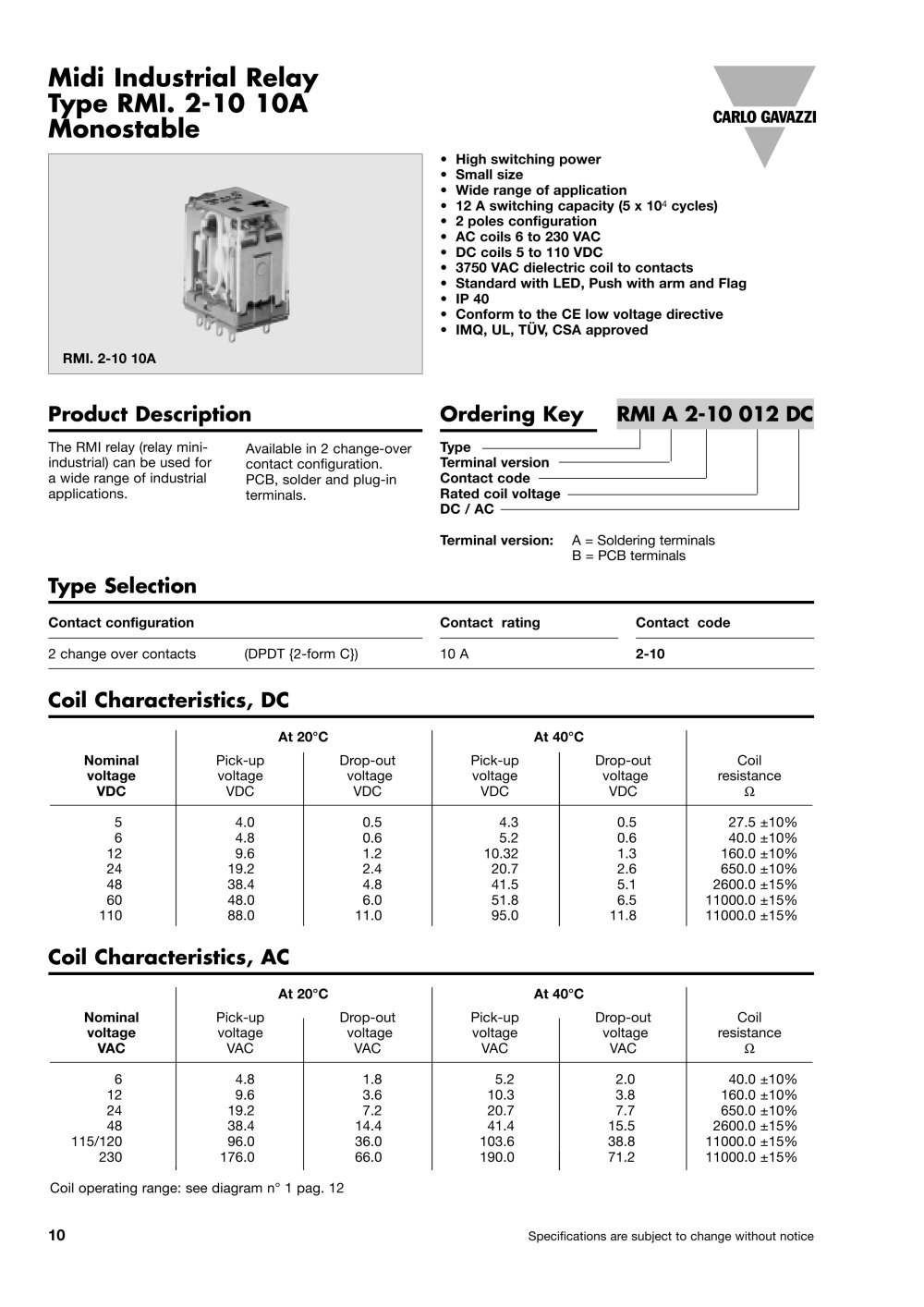

Electromechanical Relays RMIB0020012DC-1

High switching powerՕSmall sizeWide range of application Օ12 A switching capacity (5 x 10 > 4 cycles)2 poles configurationՕAC coils 6 to 230 VAC DC coils 5 to 110 VDC Օ3750 VAC dielectric coil to contacts Standard with LED, Push with arm and Flag ՕIP 40 Conform to the CE low voltage directive ՕIMQ, UL, TV, CSA approvedRMI. 2-10 10A The RMI relay (relay mini-industrial) can be used for a wide range of industrial applications. > Available in 2 change-overcontact configuration. PCB, solder and plug-in terminals. TypeTerminal version Contact code Rated coil voltage DC / ACTerminal version: A = Soldering terminalsB = PCB terminals > Contact configuration 2 change over contacts(DPDT {2-form C}) Contact rating 10 A Contact code2-10 At 20ܰCAt 40CNominal Pick-upDrop-outPick-upDrop-outCoil voltage voltagevoltagevoltagevoltageresistance > At 20ѰCAt 40CNominal Pick-upDrop-outPick-upDrop-outCoil voltage voltagevoltagevoltagevoltageresistance VAC VACVACVACVAC ТĦ 64.81.85.22.040.0 10%129.63.610.33.8160.0 ѱ10% 2419.27.220.77.7650.0 10%4838.414.441.415.52600.0 ѱ15%115/12096.036.0103.638.811000.0 15%230176.066.0190.071.211000.0 ѱ15%Coil operating range: see diagram n1 pag. 12 > Specifications are subject to change without notice size="-1">

Open the catalog to page 1

Electromechanical Relays RMIB0020012DC-2

Midi Industrial Relay Type RMI. 2-10 10A Monostable Only for PCB terminals > Contact rating Min. applicable load 100 mA at 5 VDC/12 VAC (with resistive load) 10 A - 250 VACUL rating10 A - 250 VAC/30VDC Initial contact resistance50 m Ω (at 1 A 6 VDC) > 1 Max. switch. voltage250 VAC / 30 VDC at 10 A / > 3 HP at 240 VAC Max. switch. power2500 VA / 300Wat 10 ALife Usually rating (1x10 > 5 ops) 10 A - 250 VAC / 30 VDC Max. rating (5x10 > 4 ops) 12 A - 250 VAC / 30 VDC Electrical life 1x10 > 5 cycles (1800 ops/h) MaterialSilver alloyCurrent Mechanical life 1x10 > 7 cycles (18000 ops/h) Max. switching...

Open the catalog to page 2
