DCT86A12300
3Pages

{{requestButtons}}

Catalog excerpts

DCT86A12300 - 1

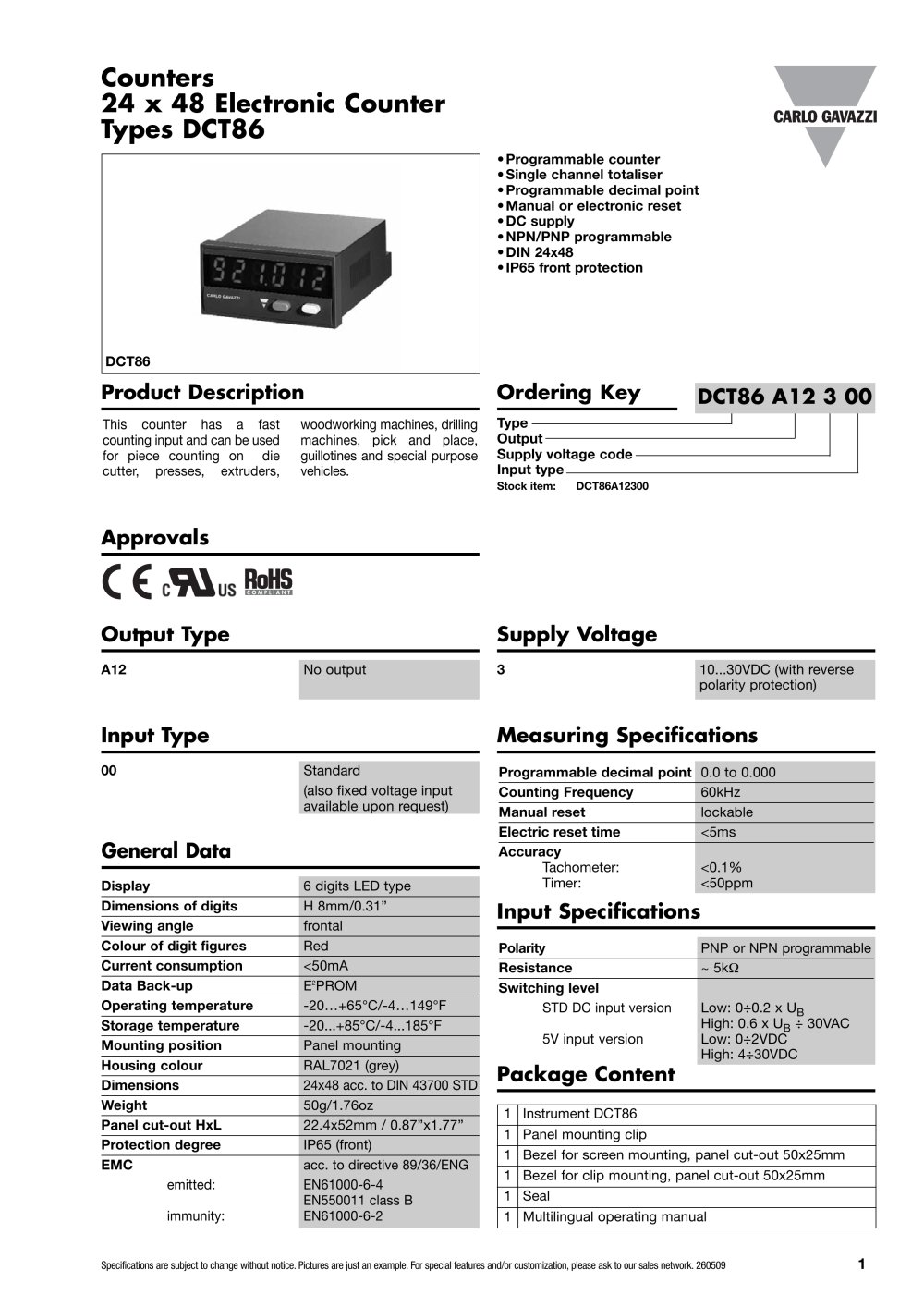

Type Output Supply voltage code Input type Stock item: DCT86A12300 Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 260509 1 Product Description Ordering Key •Programmable counter •Single channel totaliser •Programmable decimal point •Manual or electronic reset •DC supply •NPN/PNP programmable •DIN 24x48 • IP65 front protection Output Type DCT86 A12 3 00 Counters 24 x 48 Electronic Counter Types DCT86 Display 6 digits LED type Dimensions of digits H 8mm/0.31” Viewing angle frontal Colour of digit figures Red Current consumption <50mA Data Back-up E2PROM Operating temperature -20…+65°C/-4…149°F Storage temperature -20...+85°C/-4...185°F Mounting position Panel mounting Housing colour RAL7021 (grey) Dimensions 24x48 acc. to DIN 43700 STD Weight 50g/1.76oz Panel cut-out HxL 22.4x52mm / 0.87”x1.77” Protection degree IP65 (front) EMC acc. to directive 89/36/ENG emitted: EN61000-6-4 EN550011 class B immunity: EN61000-6-2 General Data This counter has a fast counting input and can be used for piece counting on die cutter, presses, extruders, woodworking machines, drilling machines, pick and place, guillotines and special purpose vehicles. Approvals DCT86 A12 No output Supply Voltage 3 10...30VDC (with reverse polarity protection) Input Type 00 Standard (also fixed voltage input available upon request) Measuring Specifications Programmable decimal point 0.0 to 0.000 Counting Frequency 60kHz Manual reset lockable Electric reset time <5ms Accuracy Tachometer: <0.1% Timer: <50ppm Input Specifications Polarity PNP or NPN programmable Resistance ~ 5kÙ Switching level STD DC input version Low: 0÷0.2 x UB High: 0.6 x UB ÷ 30VAC 5V input version Low: 0÷2VDC High: 4÷30VDC Package Content 1 Instrument DCT86 1 Panel mounting clip 1 Bezel for screen mounting, panel cut-out 50x25mm 1 Bezel for clip mounting, panel cut-out 50x25mm 1 Seal 1 Multilingual operating manual

Open the catalog to page 1
DCT86A12300 - 3

Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 260509 3 Display Keypad ì-processor Power supply 10...30 V DC Count input Reset input A Block Diagram Connections Counters 24 x 48 Electronic Counter Types DCT86 1. VDC + 2. GND 3. INP 4. Not connected 5. Reset

Open the catalog to page 3
