Conductive Level Sensors ILSP.8

Product catalog summary

Overview: The document provides technical specifications for the ILSP Series Level Magnetic Sensors, which are designed with a non-toxic polypropylene body and offer various output functions. These sensors are adaptable, allowing changes in output function by adjusting the float or rod.

Specifications:

Material: Non-toxic polypropylene
Output Functions: Normally Open (NO), Normally Closed (NC), or Change-over
Reversible Output: Achieved by float overturning
Connection: Silicone cable output

Type Selection:

Float Diameter: Ø 44 mm and Ø 25 mm options
Operating Temperature: -25 to +100 °C for ILSP.2, ILSP.8, ILSP.S.2; -20 to +80 °C for ILSP.3M/S2

General Specifications:

Minimum Liquid Specific Gravity: 0.65 Kg/dm3 for ILSP.3M/S2; 0.75 kg/dm3 for ILSP.2, ILSP.8, ILSP.S.2
Maximum Pressure: 2 kg/cm2 for ILSP.3M/S2; 6 kg/cm2 for ILSP.2, ILSP.8, ILSP.S.2
Case Material: Plastic
Protection Degree: IP68 (Cable output IP67)

Electrical Specifications:

Contacts: Various models with different specifications
Max Switching Voltage: Ranges from 220 Vac to 1500 Vac depending on the model
Max Switching Current: Ranges from 0.5 A to 3 A
Max Switching Power: Ranges from 10 VA to 120 VA

Additional Information: The document includes dimensions and wiring diagrams, which are essential for installation and integration into systems.

Catalog excerpts

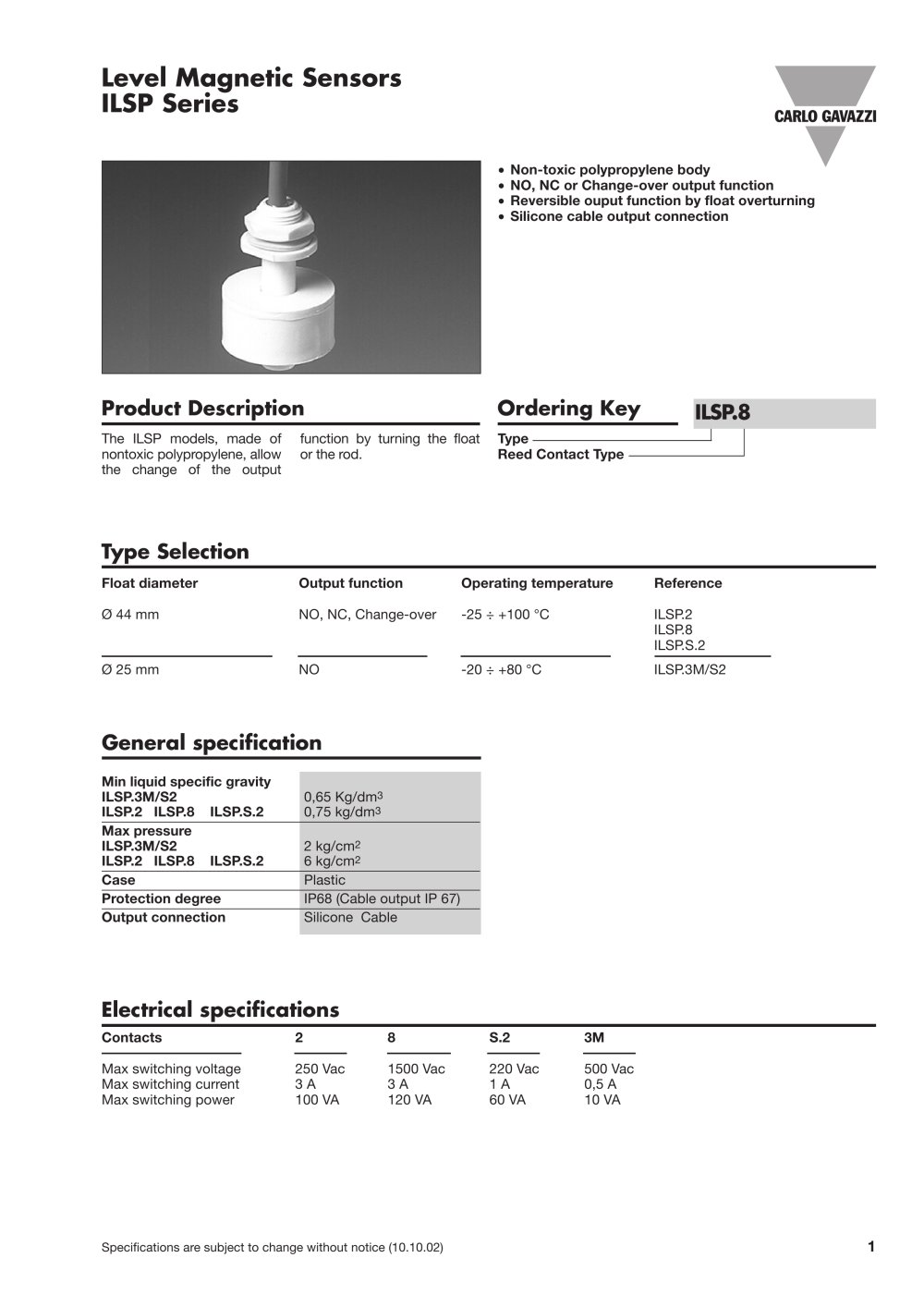

? Non-toxic polypropylene body ? NO, NC or Change-over output function ? Reversible ouput function by float overturning ? Silicone cable output connection > TypeReed Contact Type > The ILSP models, made ofnontoxic polypropylene, allow the change of the outputfunction by turning the floator the rod. > Min liquid specific gravityILSP.3M/S2 0,65 Kg/dm > 3 ILSP.2 ILSP.8 ILSP.S.2 0,75 kg/dm > 3 Max pressureILSP.3M/S2 2 kg/cm > 2 ILSP.2 ILSP.8 ILSP.S.2 6 kg/cm > 2 Case Plastic Protection degree IP68 (Cable output IP 67) Output connection Silicone Cable > Contacts28S.23M Max switching voltage250 Vac1500 Vac220 Vac500 VacMax switching current3 A3 A1 A0,5 A Max switching power100 VA120 VA60 VA10 VA > Specifications are subject to change without notice (10.10.02)

Open the catalog to page 1

Level Magnetic Sensors - ILSP Series Dimensions Wiring Diagrams > 2 Specifications are subject to change without notice (10.10.02) size="-3">

Open the catalog to page 2
