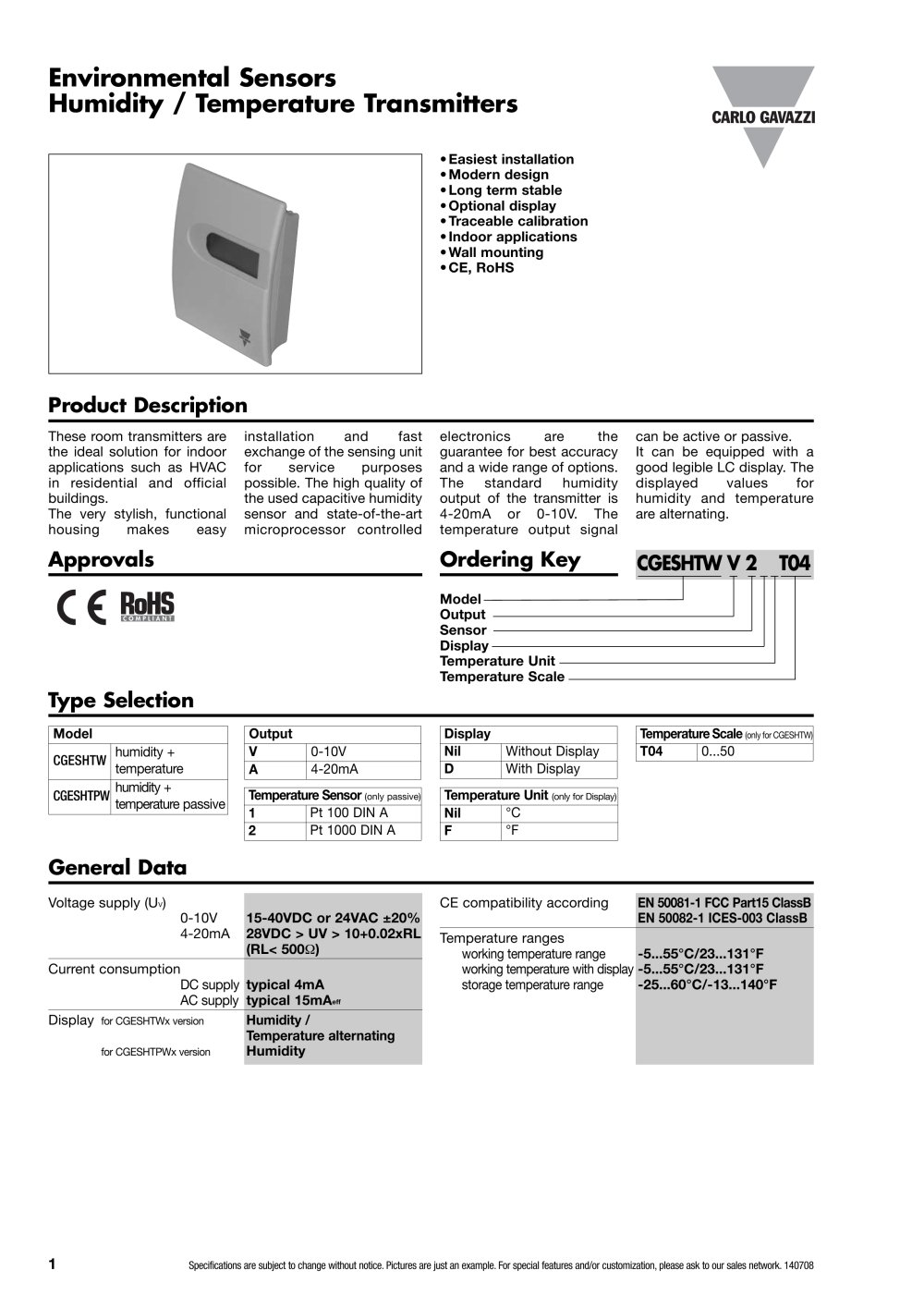

Model Output Sensor Display Temperature Unit Temperature Scale 1 Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 140708 Type Selection •Easiest installation •Modern design •Long term stable • Optional display •Traceable calibration • Indoor applications •Wall mounting •CE, RoHS Product De scrip tion These room transmitters are the ideal solution for indoor applications such as HVAC in residential and official buildings. The very stylish, functional housing makes easy installation and fast exchange of the sensing unit for service purposes possible. The high quality of the used capacitive humidity sensor and state-of-the-art microprocessor controlled Environmental Sensors Humidity / Temperature Transmitters Approvals Voltage supply (UV) 0-10V 15-40VDC or 24VAC ±20% 4-20mA 28VDC > UV > 10+0.02xRL (RL< 500Ù) Current consumption DC supply typical 4mA AC supply typical 15mAeff Display for CGESHTWx version Humidity / Temperature alternating for CGESHTPWx version Humidity General Data Ordering Key CGESHTW V 2 T04 Model CGESHTW humidity + temperature CGESHTPW humidity + temperature passive electronics are the guarantee for best accuracy and a wide range of options. The standard humidity output of the transmitter is 4-20mA or 0-10V. The temperature output signal can be active or passive. It can be equipped with a good legible LC display. The displayed values for humidity and temperature are alternating. Output V 0-10V A 4-20mA Temperature Sensor (only passive) 1 Pt 100 DIN A 2 Pt 1000 DIN A Display Nil Without Display D With Display Temperature Unit (only for Display) Nil °C F °F Temperature Scale (only for CGESHTW) T04 0...50 CE compatibility according EN 50081-1 FCC Part15 ClassB EN 50082-1 ICES-003 ClassB Temperature ranges working temperature range -5...55°C/23...131°F working temperature with display -5...55°C/23...131°F storage temperature range -25...60°C/-13...140°F

Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 140708 2 Environmental Sensors Humidity / Temperature Transmitters Connection Diagram RELATIVE HUMIDITY Humidity sensor HC103 Analogue output 0-10V -1mA 0...100 %r.H. 4-20mA RL <(UV-10)/0.02<500Ù (2 wires) Working range 0...95 % RH Accuracy ±2% RH (40...60% RH) @ 20°C/68°F and UV=24VDC ±3% RH (10...90% RH) Traceable to intern. standards, administrated by NIST, PTB, BEV... Temperature dependence Typical 0.06% RH/°C @ 60%RH (0.03%...
