BSQ-PIR360
2Pages

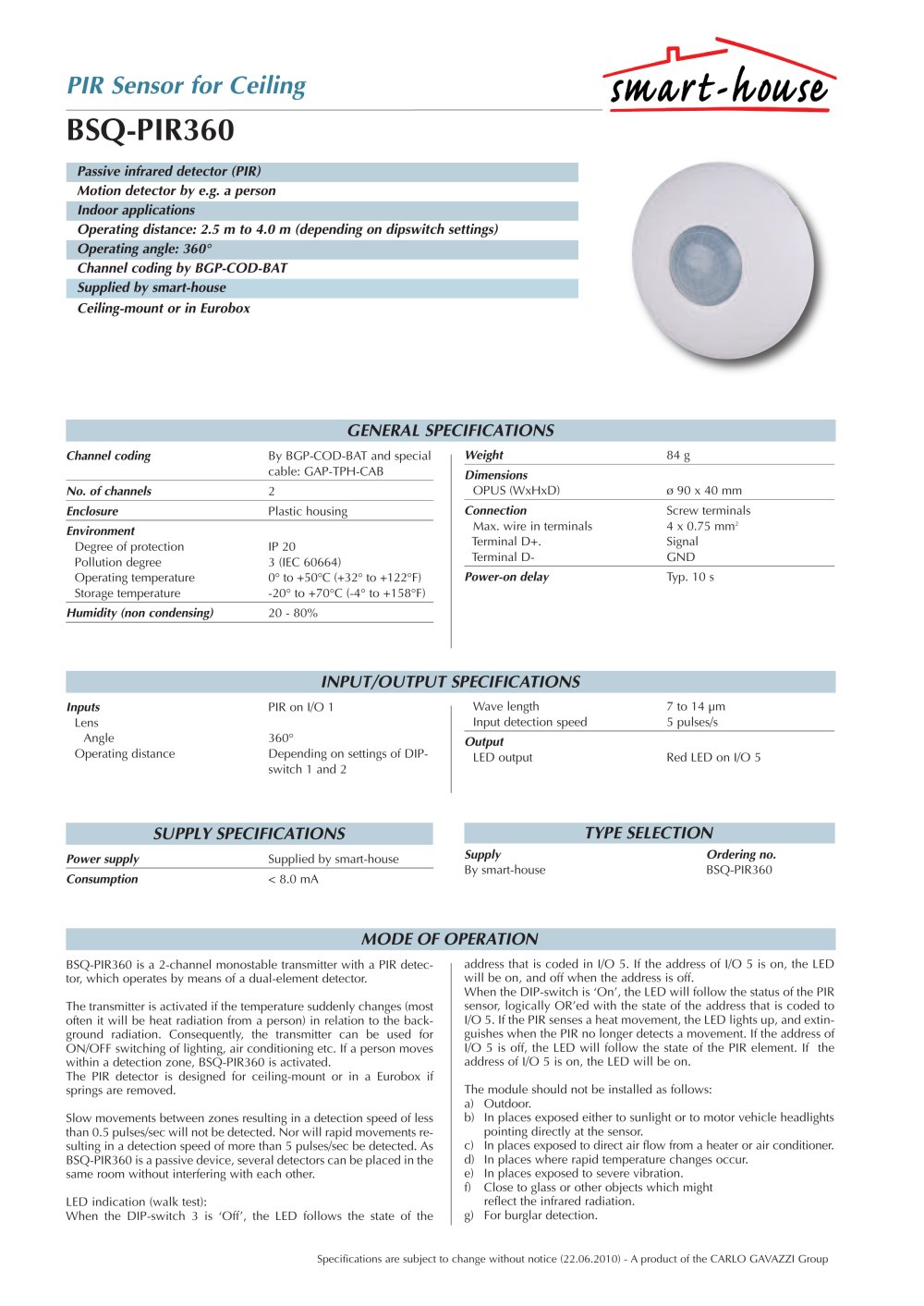

Specifications are subject to change without notice (22.06.2010) - A product of the CARLO GAVAZZI Group PIR Sensor for Ceiling BSQ-PIR360 Passive infrared detector (PIR) Motion detector by e.g. a person Indoor applications Operating distance: 2.5 m to 4.0 m (depending on dipswitch settings) Operating angle: 360° Channel coding by BGP-COD-BAT Supplied by smart-house Ceiling-mount or in Eurobox Power supply Supplied by smart-house Consumption < 8.0 mA SUPPLY SPECIFICATIONS Supply Ordering no. By smart-house BSQ-PIR360 TYPE SELECTION Channel coding By BGP-COD-BAT and special cable: GAP-TPH-CAB No. of channels 2 Enclosure Plastic housing Environment Degree of protection IP 20 Pollution degree 3 (IEC 60664) Operating temperature 0° to +50°C (+32° to +122°F) Storage temperature -20° to +70°C (-4° to +158°F) Humidity (non condensing) 20 - 80% GENERAL SPECIFICATIONS Weight 84 g Dimensions OPUS (WxHxD) ø 90 x 40 mm Connection Screw terminals Max. wire in terminals 4 x 0.75 mm2 Terminal D+. Signal Terminal D- GND Power-on delay Typ. 10 s Inputs PIR on I/O 1 Lens Angle 360° Operating distance Depending on settings of DIPswitch 1 and 2 INPUT/OUTPUT SPECIFICATIONS Wave length 7 to 14 ìm Input detection speed 5 pulses/s Output LED output Red LED on I/O 5 BSQ-PIR360 is a 2-channel monostable transmitter with a PIR detector, which operates by means of a dual-element detector. The transmitter is activated if the temperature suddenly changes (most often it will be heat radiation from a person) in relation to the background radiation. Consequently, the transmitter can be used for ON/OFF switching of lighting, air conditioning etc. If a person moves within a detection zone, BSQ-PIR360 is activated. The PIR detector is designed for ceiling-mount or in a Eurobox if springs are removed. Slow movements between zones resulting in a detection speed of less than 0.5 pulses/sec will not be detected. Nor will rapid movements resulting in a detection speed of more than 5 pulses/sec be detected. As BSQ-PIR360 is a passive device, several detectors can be placed in the same room without interfering with each other. LED indication (walk test): When the DIP-switch 3 is ‘Off’, the LED follows the state of the MODE OF OPERATION address that is coded in I/O 5. If the address of I/O 5 is on, the LED will be on, and off when the address is off. When the DIP-switch is ‘On’, the LED will follow the status of the PIR sensor, logically OR’ed with the state of the address that is coded to I/O 5. If the PIR senses a heat movement, the LED lights up, and extinguishes when the PIR no longer detects a movement. If the address of I/O 5 is off, the LED will follow the state of the PIR element. If the address of I/O 5 is on, the LED will be on. The module should not be installed as follows: a) Outdoor. b) In places exposed either to sunlight or to motor vehicle headlights pointing directly at the sensor. c) In places exposed to direct air flow from a heater or air conditioner. d) In places where rapid temperature changes occur. e) In places exposed to severe vibration. f) Close to glass or other objects which might reflect the infrared radiation. g) For burglar detection.

4,0m 3,5m 3,0m 2,5m ø7m ø8m ø12m ø10m OPERATING DISTANCE RELATED TO DIP-SWITCH SETTINGS Specifications are subject to change without notice (22.06.2010) - A product of the CARLO GAVAZZI Group PIR Sensor for Ceiling BSQ-PIR360 1 2 ø 57 - 63 mm MOUNTING Ø 90 32 16 24 DIMENSIONS Programming cable to BGP-COD-BAT GAP-TPH-CAB ACCESSORIES Ceiling On 1 2 3 Factory setting On 1 2 3 Minimum sensitivity Low sensitivity High sensitivity Maximum sensitivity On 1 2 3 On 1 2 3 On 1 2 3 On 1 2 3 LED Off LED On On 1 2 3 = On = OFF DIP-SWITCH SETTINGS D+ DBUS + BUS - Programming cable Dot WIRRING DIAGRAM
