Secure Power Product Literature

Product catalog summary

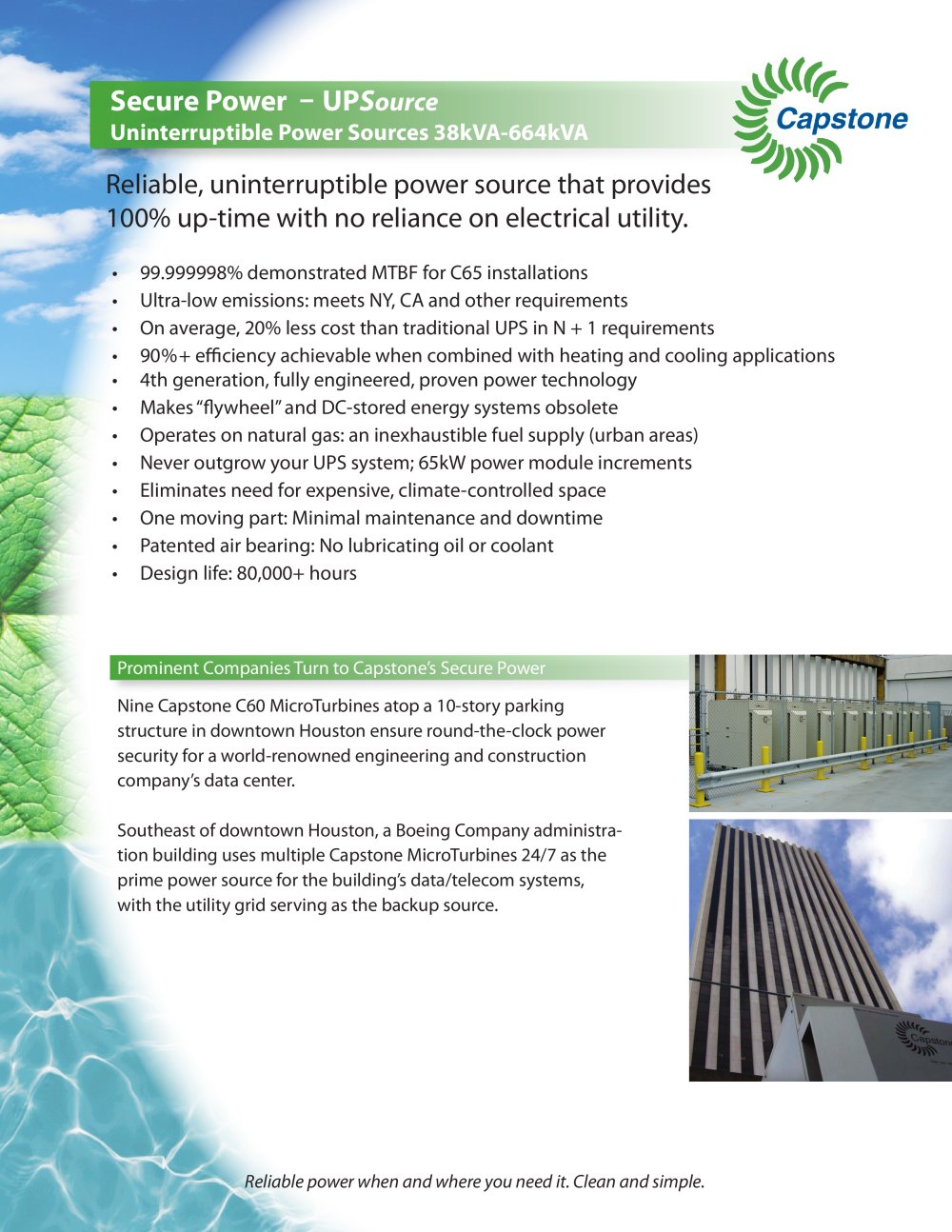

Overview: The document outlines the features and specifications of Capstone Turbine Corporation's power solutions, emphasizing reliability, efficiency, and environmental compliance. It highlights the advantages of their microturbine technology over traditional UPS systems.

Key Features:

Demonstrated Mean Time Between Failures (MTBF) of 99.999998% for C65 installations.
Ultra-low emissions meeting New York, California, and other regulatory requirements.
Cost-effective, with 20% less cost than traditional UPS systems in N+1 configurations.
Efficiency exceeding 90% when integrated with heating and cooling applications.
Fourth-generation, proven power technology that renders flywheel and DC-stored energy systems obsolete.
Operates on natural gas, providing an inexhaustible fuel supply, especially in urban areas.
Modular design allowing for incremental power increases of 65kW.
Minimal maintenance due to a single moving part and patented air bearing technology.
Design life exceeding 80,000 hours.

Applications:

Used by prominent companies for secure power, such as a world-renowned engineering and construction company's data center in Houston and a Boeing Company administration building.

Technical Specifications:

Uninterruptible Power Sources (UPS) range from 38kVA to 664kVA.
Electrical characteristics include a voltage range of 380 to 480 VAC, 3-phase service, and IGBT inverter output type.
Physical characteristics vary by model, with installation areas and weights specified for each.
Fuel characteristics include natural gas input with specific inlet pressures and consumption rates.
Emissions standards are maintained with low NOx, CO, and NMHC levels.
Certifications include UL recognition and compliance with IEEE standards.
