LEED specsheet E-Finity

Product catalog summary

Overview: The document outlines the capabilities and benefits of Capstone's microturbine solutions for various sectors including hospitals, apartment and office buildings, hotels, schools, and universities. It emphasizes the company's comprehensive approach to energy solutions, focusing on high-efficiency power generation and environmental benefits.

Key Offerings:

High Efficiency Electrical and Thermal Power Generation
Air Bearings that eliminate the need for liquid lubricants and hazardous material disposal
Full service coverage for installations

Benefits:

Reduction in energy costs and emissions
Eligibility for tax credits, rebates, and other incentive programs
Simplified utility grid interconnection
Ultra-low maintenance requirements
Qualification for LEED points for LEED certification

Technical Specifications:

Electrical Power Output: 65 kW
Voltage: 400 to 480 VAC
Electrical Service: 3-Phase
Frequency: 50/60 Hz for grid connect, 10–60 Hz for stand-alone operation
Maximum Output Current: 100A for grid connect, 127A for stand-alone
Electrical Efficiency: 29% LHV

Fuel and Engine Characteristics:

Natural Gas HHV: 825 to 1,275 BTU/scf
Inlet Pressure: 2.9 psig utility, 65 psig engine/MT
Fuel Flow: 765,000 BTU/hr LHV

Exhaust Characteristics:

Exhaust Gas Flow: 1.08 lb/sec
Exhaust Gas Temperature: 588˚F
NOx Emissions: < 5 ppmvd

Heat Recovery:

Integrated Heat Recovery Module: Copper Core and Stainless Steel Core options
Hot Water Heat Recovery: 408,000 BTU/hr for Copper Core, 251,000 BTU/hr for Stainless Steel Core
Total System Efficiency: 82% LHV for Copper Core, 62% for Stainless Steel Core

Dimensions and Weight:

C65: 30 x 77 x 83 inches, 1,671 lbs for grid connect model
C65-ICHP: 30 x 77 x 94 inches, 2,200 lbs for grid connect model

Certifications:

Certified to UL 2200 and UL 1741 for natural gas operation
Meets California Rule 21 and New York State Public Service Commission requirements
Materials Equipment Acceptance (MEA) approval for New York City
Optional equipment for CE Marking
Certification to California Air Resources Board (60 kW)

Contact Information: For more information, contact Capstone at 866.422.7786 or visit www.microturbine.com.

Catalog excerpts

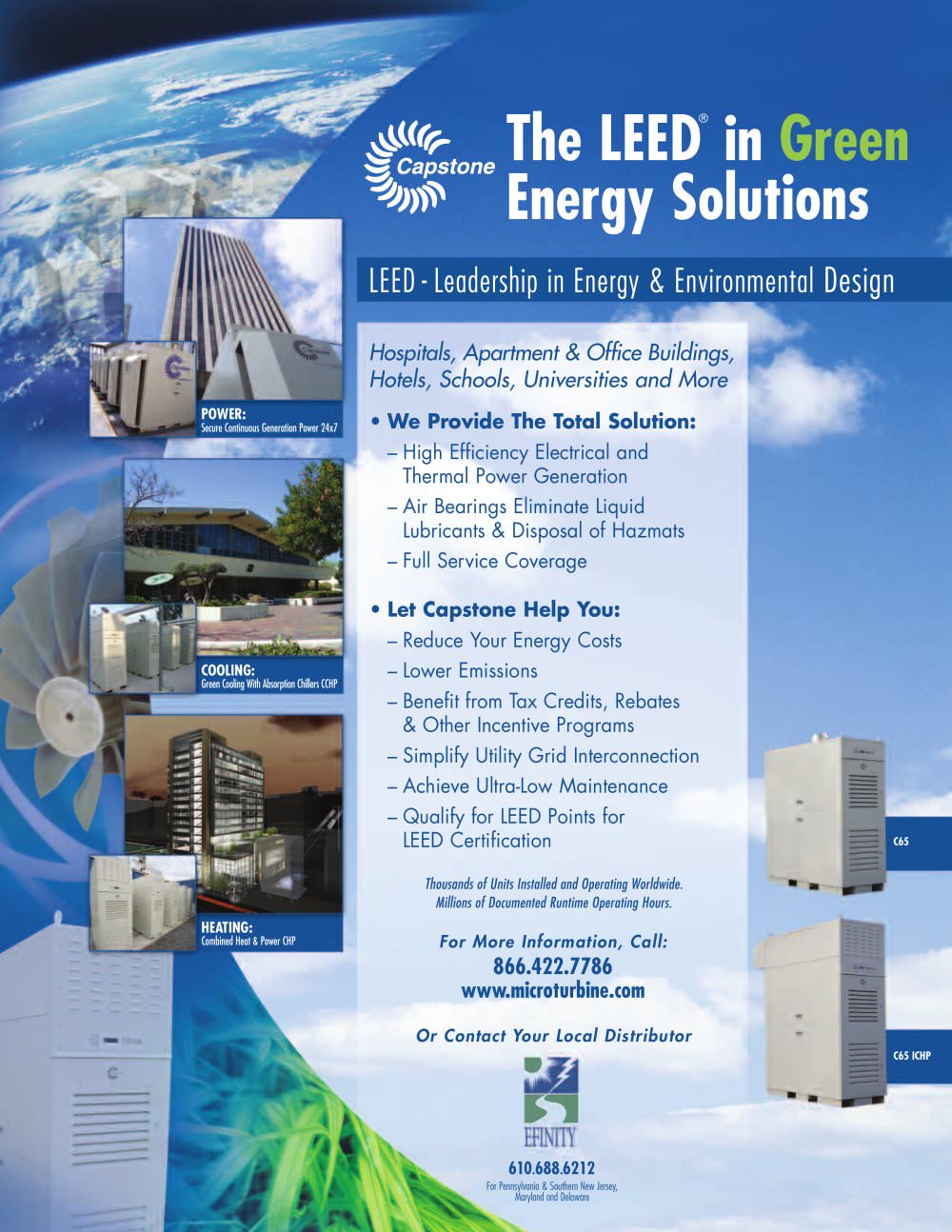

POWER: Secure Continuous Generation Power 24x7 COOLING: Green Cooling With Absorption Chillers CCHP Thousands of Units Installed and Operating Worldwide.Millions of Documented Runtime Operating Hours. HEATING: Combined Heat & Power CHP For MoreInformation, Call: > Or Contact Your Local Distributor > C65 ICHP C65 610 > . 688 > . 6212 > For Pennsylvania & Southern New Jersey,Maryland and Delaware size="-5">

Open the catalog to page 1

Electrical Power Output65 kW Voltage400 to 480 VAC Electrical Service3-PhaseFrequency50/60 Hz, Grid Connect Operation 1060 Hz, Stand Alone OperationMaximum Output Current100A, Grid Connect Operation 127A, Stand Alone Operation > (2) Electrical Efficiency LHV29% > Natural Gas HHV825 to 1,275 BTU/scf Inlet Pressure > (3) 2.9 psig (0.20 barg) utility, 65 psig (4.5 barg) Engine/MT Fuel Flow LHV765,000 BTU/hr (807,000 kJ/hr) Generator Heat Rate LHV11,000 BTU/kWh (11,600 kJ/kWh) > Exhaust Gas Flow1.08 lb/sec (0.49 kg/s) Exhaust Gas Temperature588֋F (309ڋC) > NOx Emissions @ 15% O > 2 <5ppmvd< 5 ppmvd...

Open the catalog to page 2
