LEED specsheet Cogeneration Contractors

Product catalog summary

Overview: The document outlines the capabilities and benefits of Capstone's microturbine solutions for various sectors including hospitals, apartment and office buildings, hotels, schools, and universities. It emphasizes the company's comprehensive approach to energy solutions, focusing on high-efficiency power generation and environmental benefits.

Key Offerings:

High Efficiency Electrical and Thermal Power Generation
Air Bearings that eliminate the need for liquid lubricants and hazardous material disposal
Full service coverage for installations

Benefits:

Reduction in energy costs and emissions
Eligibility for tax credits, rebates, and other incentive programs
Simplified utility grid interconnection
Ultra-low maintenance requirements
Qualification for LEED points for certification

Product Specifications:

Electrical Performance: 65 kW power output, 400 to 480 VAC voltage, 3-phase electrical service, and 29% electrical efficiency LHV.
Fuel/Engine Characteristics: Operates on natural gas with specific BTU and pressure requirements.
Exhaust Characteristics: Low NOx emissions with detailed specifications for both C65 and C65-ICHP models.
Heat Recovery: Integrated heat recovery module with copper and stainless steel core options, achieving up to 82% total system efficiency LHV.
Dimensions & Weight: Detailed measurements and weight for both grid connect and dual mode models.

Certifications: The products are certified to UL standards, meet California and New York utility interconnection requirements, and have optional CE Marking equipment.

Contact Information: For more information, potential customers are encouraged to contact Capstone directly or their local distributor.

Catalog excerpts

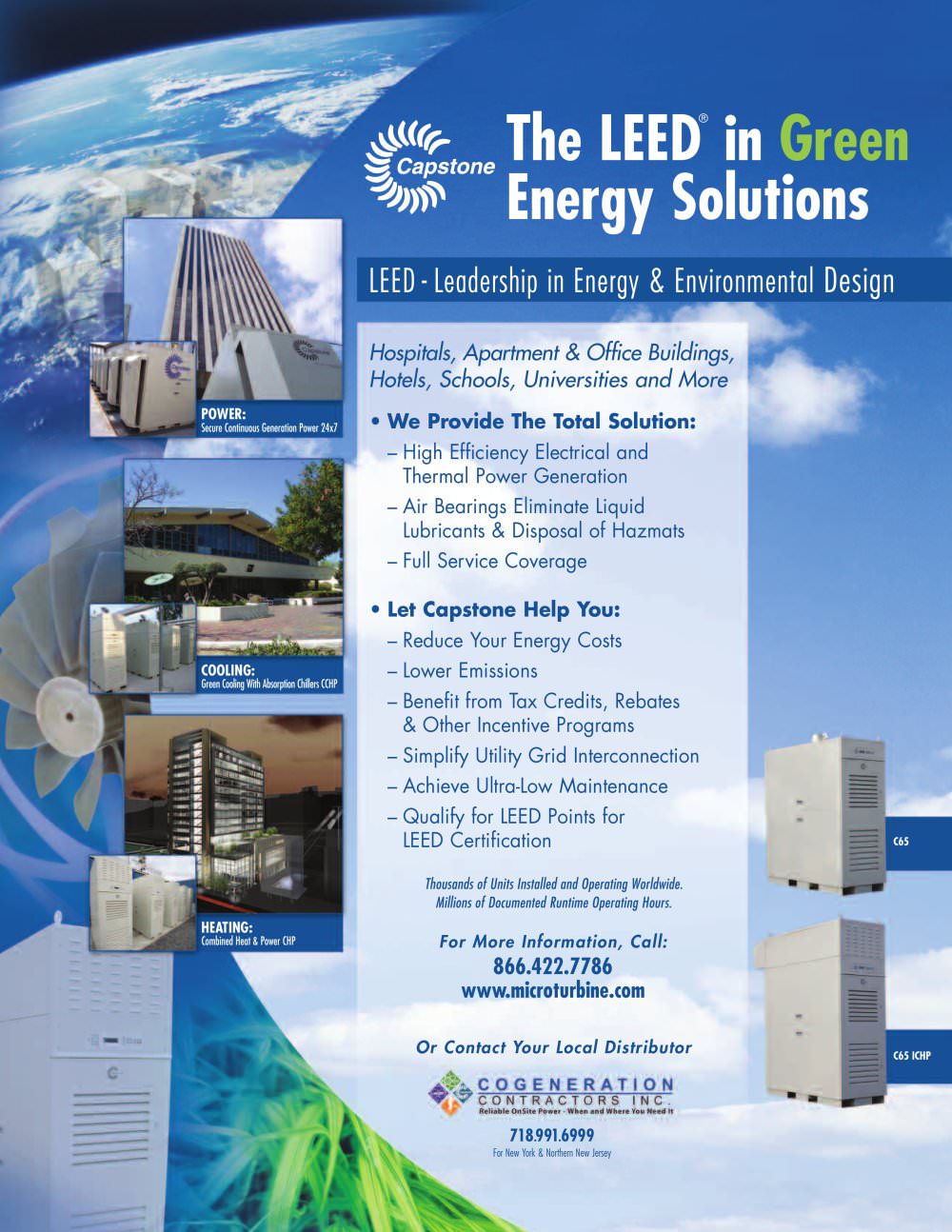

LEED specsheet Cogeneration Contractors-1

POWER: Secure Continuous Generation Power 24x7 COOLING: Green Cooling With Absorption Chillers CCHP Thousands of Units Installed and Operating Worldwide.Millions of Documented Runtime Operating Hours. HEATING: Combined Heat & Power CHP For MoreInformation, Call: > Or Contact Your Local Distributor > C65 ICHP C65 718 > . 991 > . 6999 > For New York & Northern New Jersey size="-5">

Open the catalog to page 1

LEED specsheet Cogeneration Contractors-2

Electrical Power Output65 kW Voltage400 to 480 VAC Electrical Service3-PhaseFrequency50/60 Hz, Grid Connect Operation 1060 Hz, Stand Alone OperationMaximum Output Current100A, Grid Connect Operation 127A, Stand Alone Operation > (2) Electrical Efficiency LHV29% > Natural Gas HHV825 to 1,275 BTU/scf Inlet Pressure > (3) 2.9 psig (0.20 barg) utility, 65 psig (4.5 barg) Engine/MT Fuel Flow LHV765,000 BTU/hr (807,000 kJ/hr) Generator Heat Rate LHV11,000 BTU/kWh (11,600 kJ/kWh) > Exhaust Gas Flow1.08 lb/sec (0.49 kg/s) Exhaust Gas Temperature588֋F (309ڋC) > NOx Emissions @ 15% O > 2 <5ppmvd< 5 ppmvd...

Open the catalog to page 2

LEED specsheet Cogeneration Contractors

LEED specsheet Cogeneration Contractors
