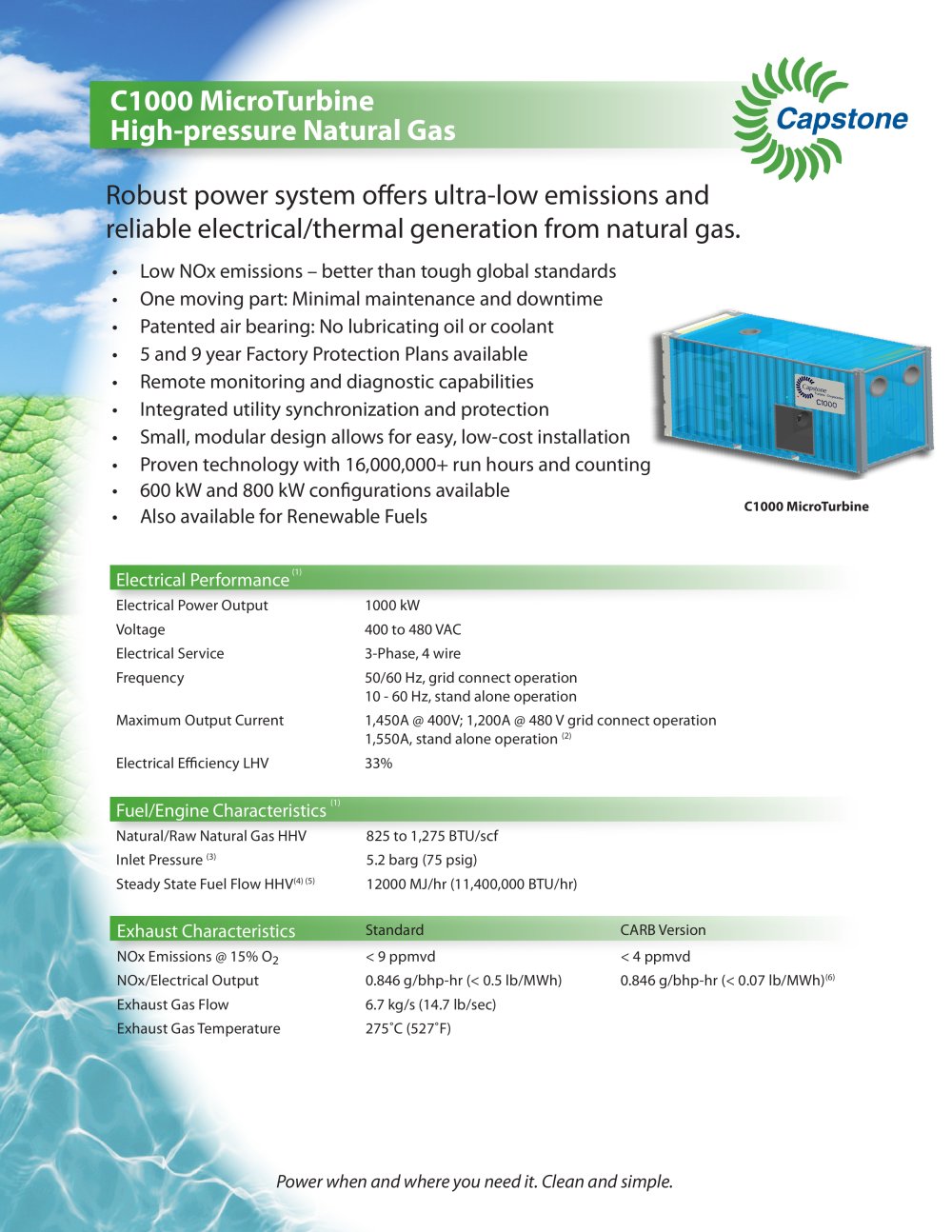

Overview: The document provides technical specifications and features of the C1000 MicroTurbine by Capstone Turbine Corporation, designed for clean and efficient power generation.

Exhaust Characteristics: The turbine meets stringent NOx emissions standards with values less than 9 ppmvd at 15% O2, and an exhaust gas flow of 6.7 kg/s at a temperature of 275˚C.

Electrical Performance: The turbine delivers an electrical power output of 1000 kW with a voltage range of 400 to 480 VAC. It supports both grid-connected and standalone operations with a maximum output current of 1,450A at 400V and 1,200A at 480V for grid connection, and 1,550A for standalone operation. The electrical efficiency is 33% LHV.

Fuel/Engine Characteristics: The turbine operates on natural or raw natural gas with an HHV range of 825 to 1,275 BTU/scf and requires an inlet pressure of 5.2 barg. The steady-state fuel flow is 12,000 MJ/hr.

Design and Features: The C1000 MicroTurbine features a single moving part for minimal maintenance, patented air bearings, and remote monitoring capabilities. It is available in 600 kW and 800 kW configurations and supports renewable fuels.

Dimensions and Weight: The grid connect model measures 2438 x 8534 x 2896 mm and weighs 7711 kg, while the dual-mode model weighs 12927 kg.

Certifications: The turbine is recognized under UL 2200 and UL 1741 for natural gas operation and complies with IEEE 1547, California Rule 21, and New York State Public Service Commission requirements. Optional CE compliance marking is available.

Performance Graph: A graph illustrates the relationship between net power output and efficiency versus ambient temperature at sea level, showing optimal performance within specified temperature ranges.
