Overview

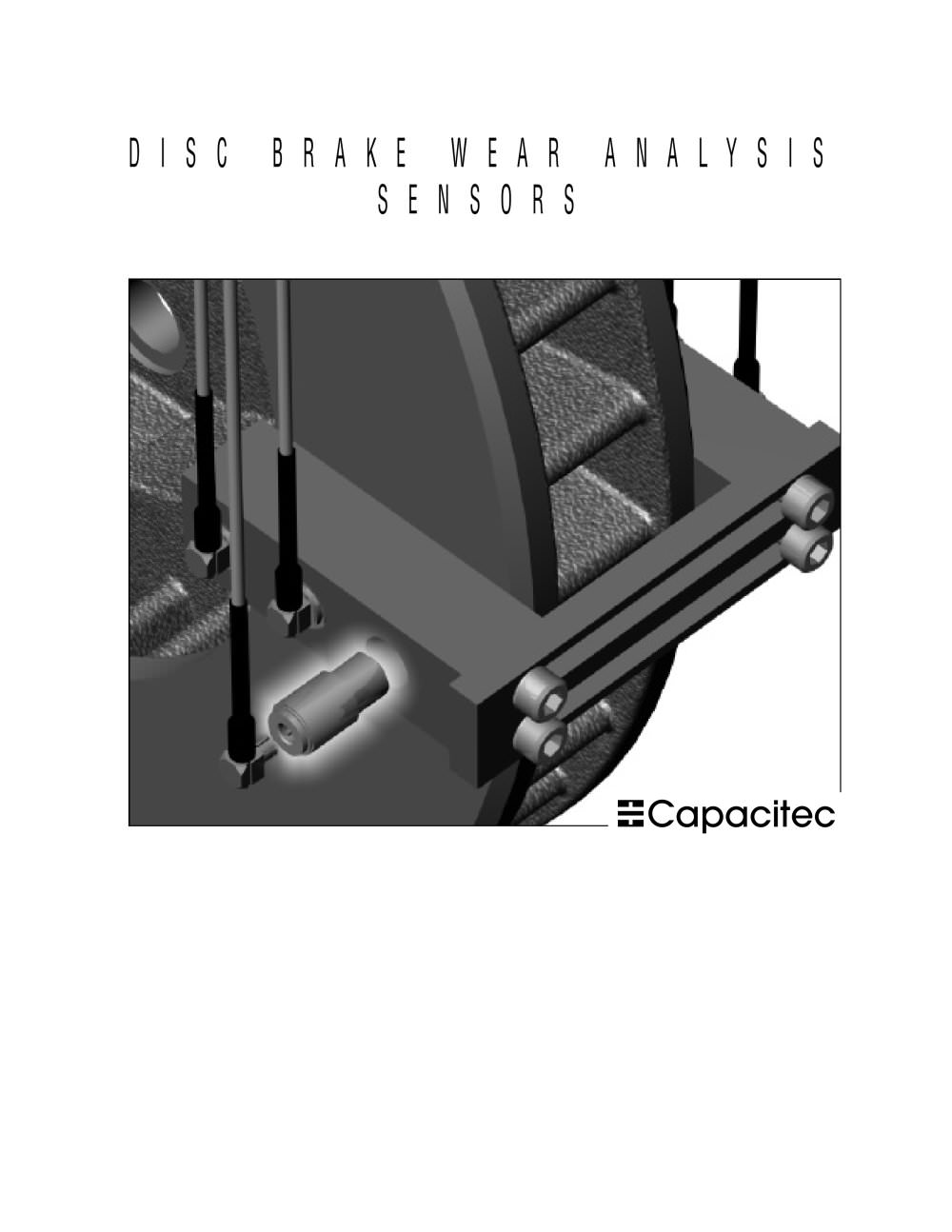

Disc Brake Wear Analysis Sensors are developed to meet the increasing demand for precise tolerances and rapid prototype designs in automotive brake systems. Capacitec has introduced a new line of non-contact capacitive sensors, the HPC-150-E-H model, which offers small size, high-temperature operation up to 500°C, and reduced replacement costs due to its innovative design.

Features and Benefits

• High-temperature operation up to 500°C.
• Rugged, small-sized sensors with integral connectors.
• Replaceable coaxial extension cables.
• Easy DC voltage output processing.
• Modular, multichannel electronics suitable for both lab and on-vehicle testing.

Specifications

• Sensor diameter: 0.150 inches.
• Maximum range: Equal to the sensor diameter.
• Linear range: Two-thirds of the sensor diameter.
• Probe interchangeability: ±10% of full scale maximum change.
• Calibration: 21 standard calibrations available.

Applications

• Dynamic brake system measurements on vehicles and in laboratories.
• Measurement of rotor characteristics such as run-out, thickness variation, coning, and thermal expansion.

Ordering Information
Probes can be ordered based on shape, sensor diameter, probe length, operating temperature, cable type, cable length, and connector type. Example formats include HPT-150E and HPB-150X-V.

Contact Information
US Headquarters: AB, Inc., Ayer, Massachusetts, USA.
European Headquarters: AD, Creteil, France.
