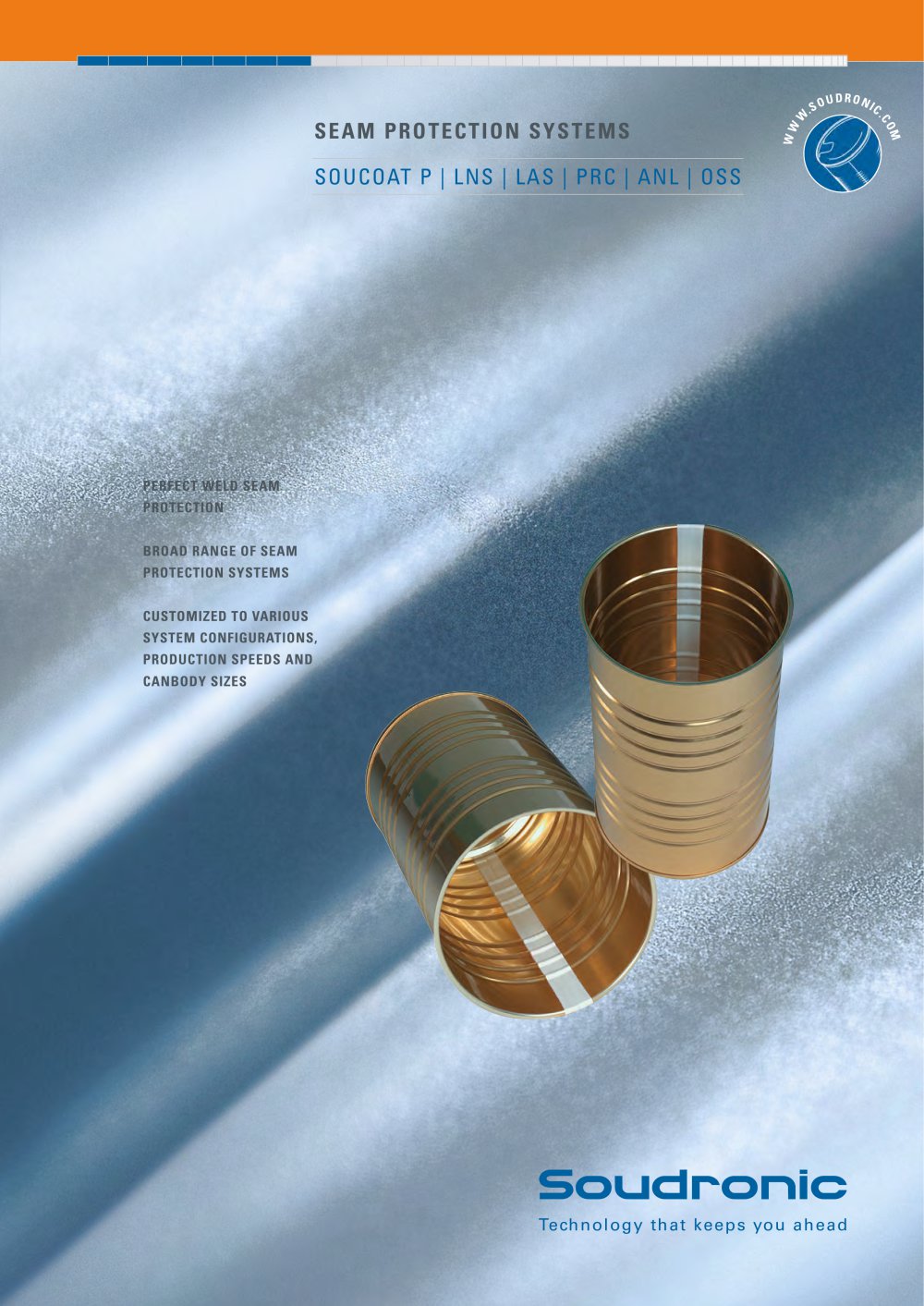

Seam protection systems
8Pages

perfect weld seam protection broad range of seam protection systems customized to various system configurations, production speeds and canbody sizes Technology that k eeps you ahead

WELD SEAM p r o t e c t i o n for qual i t y c a n s Effective protection of the weld seam is crucial to the quality of a three-piece can. That’s why we offer a broad range of seam protection technologies and systems. After welding, the next step in the manufacture of a quality can is the application of a durable protective layer to the inner and outer seams. Our powder-coating or wet-lacquering systems are fully automated and can be customized to all system configurations, production speeds and canbody sizes. They guarantee easy, clean operation and low powder or lacquer consumption.

i NSiDE POWDER SYSTEMS This is not only a way to achieve very cost-effective production by lowest possible powder consumption, but it is also a must for good quality inside seam protection. The soUCoAT powder coating system consists of: • powder feeding unit CpF • powder application arm psA with quick-connection • powder recycling unit FDC • Control system stand-alone or integrated in welder or curing system as an option • Trouble shooting and statistic module TRIBO system available for lines using exclusively VppA powder. • Easy setting and adjustment of powder arm and spray head •...

i NSiDE LACQUER SYSTEMS lnsI las The liquid lacquer system consists of: • Complete pneumatic or electric NORDSON inside spray equipment with filter, heater and pressure regulator • spray arm with spray gun • sAA spray arm adapter (quick-connection) • suction hood, LFU filter box with fan • Control system stand-alone or integrated in welder or curing system as an option features • LLM liquid lacquer monitor • Quick-connection allowing change of spray arms between different welders • Touch-screen PC control unit for all process functions with trouble shooting and statistical data (UNICONTROL)...

prc The PRC roller lacquer application systems consist of: • lacquer reservoir • driven application roller • frequency-drive motor • different application rollers The pRC outside roller coater covers the seam of the canbody with a thin lacquer film as a corrosion protection. The liquid lacquer quantity is adjustable and will be transferred from the transfer roller to the appplication roller. A special roller material quality, steel and expanded rubber, applies an even lacquer application and also allows the processing of shaped cans. Lacquer flows continuously and uniformly from the lacquer...

OUTSIDE LACQUER SYSTEMS anl The ANL brush lacquer application systems consist of the following: • Lacquer mechanism with brush • Lacquer pressure tank • Control system The ANL outside lacquer system is espcially designed for minimum lacquer consumption. By means of a brush, the ANL applies a thin lacquer film which protects the exterior seam from corrosion, as it occurs in autoclave water or high -ambient humidity. The ANL system is developed to avoid any contamination with lacquer on the inside seam. • Very economical due to less lacquer consumption • Clean operation • Can be mounted to...

OUTSIDE SPRAY SYSTEMS oss • Suitable for all canbody diameters • Adjustable spray with and spray angle • Ideal for high application speeds (but also suitable for low application speeds) • Contact-free lacquer coating • Can be switched on/off at any time • Different spray nozzles may be used • simple operation/adjustment • Good coverage in the seam overlap area • Automatic recognition/error message when lacquer level is low and/or supply disrupted - low canbody spoilage rate • Independent of canbody shape near seam Low pressure application meets high-speed: The use of the OSS permits the...

FP F BUL K POWDE R FEEDI N G SYSTEM Automatic drum unloader suitable to serve one Soudronic powder unit. In a typical operation, a level unit sensor Clean process is used with the FDC recycling unit to Required pneumatic supply is taken from the existing pow- The automatic drum unloader FPF feeds the powder material into the recycling unit by means of a transfer pump and a Transfer pump is capable to feed up to 24 kg powder/hour Handling powder-coating material with FPF Bulk Powder Feeding System bulk feeder saves time, labour cost and allows for a cleaner operation. l Drum change is easily...
