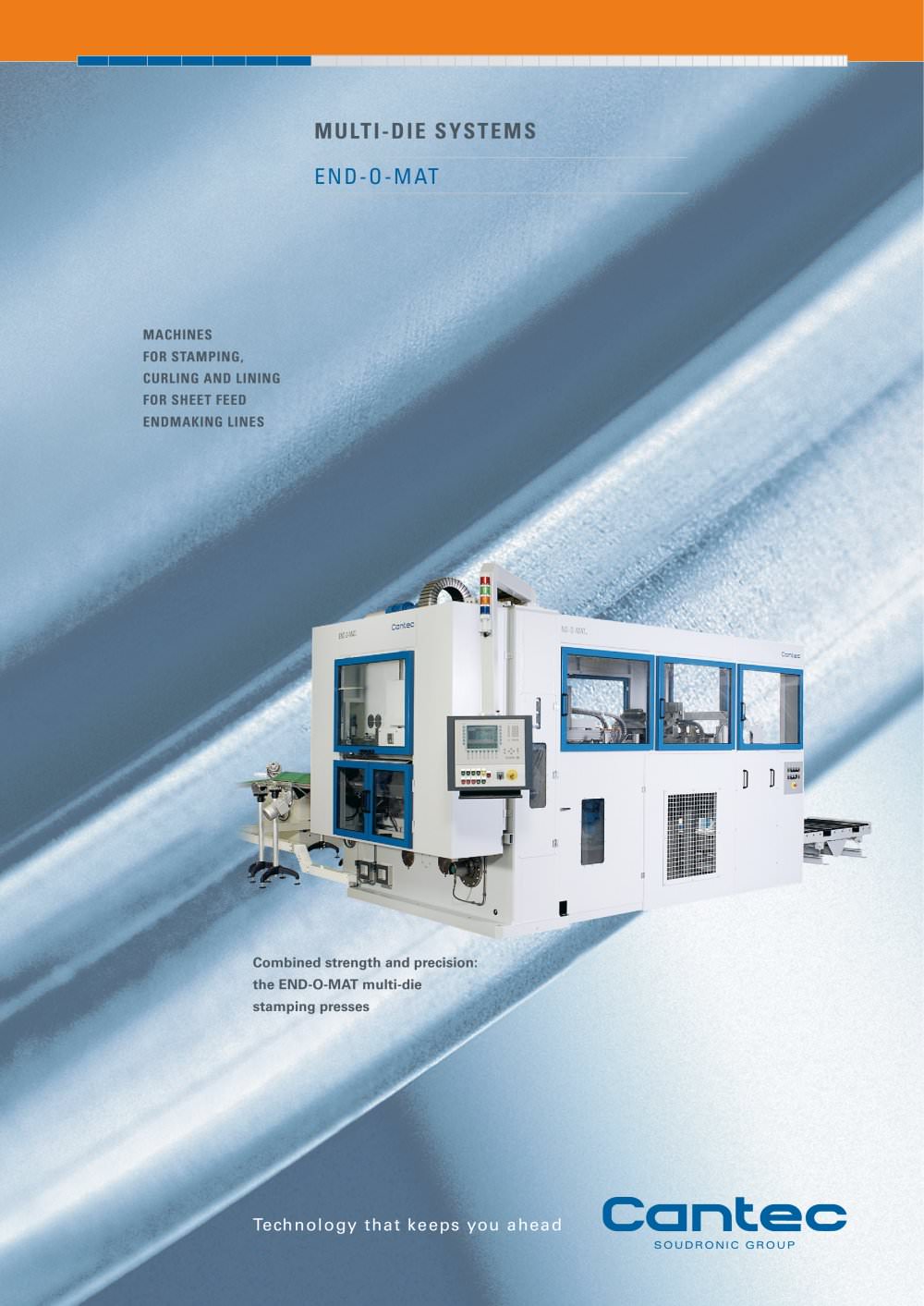

MULTI-DIE SYSTEMS END-O-MAT > MACHINES FOR STAMPING, CURLING AND LINING FOR SHEET FEED ENDMAKING LINES Combined strength and precision: the END-O-MAT multi-die stamping presses Technology that keeps you ahead size="-1">

Open the catalog to page 1

Multi-die system END-O-MATmachines Tooling system Disc curler Multi-head rotary liner Press 150 t for double row tooling Press 50 tfor single row tooling Standard tooling system Die Curling System Liner for spec. application Multi-stage tooling system Straight feeder without idle strokes Single, zig zag with idle strokes Thermo-comp.tooling system Coil feeder without idle strokes Double, zig zag without idle strokes Multi-stage thermo-comp. tooling sys. >

Open the catalog to page 2

END-O-MAT THE INNOVATIVE ENDMAKING SYSTEM > 2 Hydraulic pretension and overload 3 Table (stationary) > L 4 Multi-die tool set 5 Slide > L 7 Gear drive 8 Frame > L END-O-MAT PRESS WITH 150 T > L END-O-MAT PRESS WITH 50 T > L

Open the catalog to page 3

STRAIGHT SHEET OR COIL FEEDER Servodrive roll feed mechanism > L The roller feed mechanism is controlled by servo motors which generate highly precise advance movements with an accurate, non-cumulative positioning > Straight sheet feeder L A digital servo controller ensures feed profiles with optimised acceleration thin material can thus be accelerated smoothly and without slipping > ZIG ZAG SHEET FEEDER Linear motor driven two/four axle drive > L The coordinated traverse movements along the x and y axes is controlled by linear motors which generate highly precise advance movements > Zig...

Open the catalog to page 4

TOOL ACCESS AND DIE SET CHANGE L The quicklift function provides comfortable and fast access to the die area at the convenient height of 1400 mm (55) > L Spring-loaded rollers, which lift the tooling from the slide plate once the fixing screws have been loosened, allow the tooling to be changed easily and fast > STANDARD TOOLING SYSTEM MULTI-STAGE TOOLING SYSTEM for all common and non critical ends and shells special for critical sanitary ends > L The end is drawn in one step > L Cutting the blank > L Suitable for SR and DR material > L Drawing the inner pannel > L Suitable for easy profile...

Open the catalog to page 5

TOOL CHANGING CARRIAGE > Tool changing carriage SHEET LUBRICATING SYSTEM > DISC CURLER FOR ROUND ENDS > FOR STEEL ENDS AND SHELLS > NOMINAL DIAMETER MAX. CAPACITY MM / INCH EPM Disc Curler up to 153 / 603 600up to 99 / 401 1500up to 65 / 211 2000 FOR ALUMINIUM ENDS AND SHELLS > NOMINAL DIAMETER MAX. CAPACITY MM / INCH EPM up to 73 / 300 2 x 600up to 65 / 211 2 x 750 Advanced tooling system >

Open the catalog to page 6

High-speed rotary liner for all types of compound for double seam ends > L Capacity between 300 epm and 2000 epm with 3-, 4-, 6-, or 8-fold tooling, diameter range between 46 mm (114) and 153 mm (603) > L Operator-friendly menus with size-dependent parameter memory (accessed when changing to a different size) reproducible lined ends > High-speed rotary liner L Fine setting of lining guns (nozzle position) sepa-rately in radial and axial direction: In radial direc-tion (diameter setting) by means of a threaded spindle, in axial direction (gun height) by means of a threaded spindle better...
