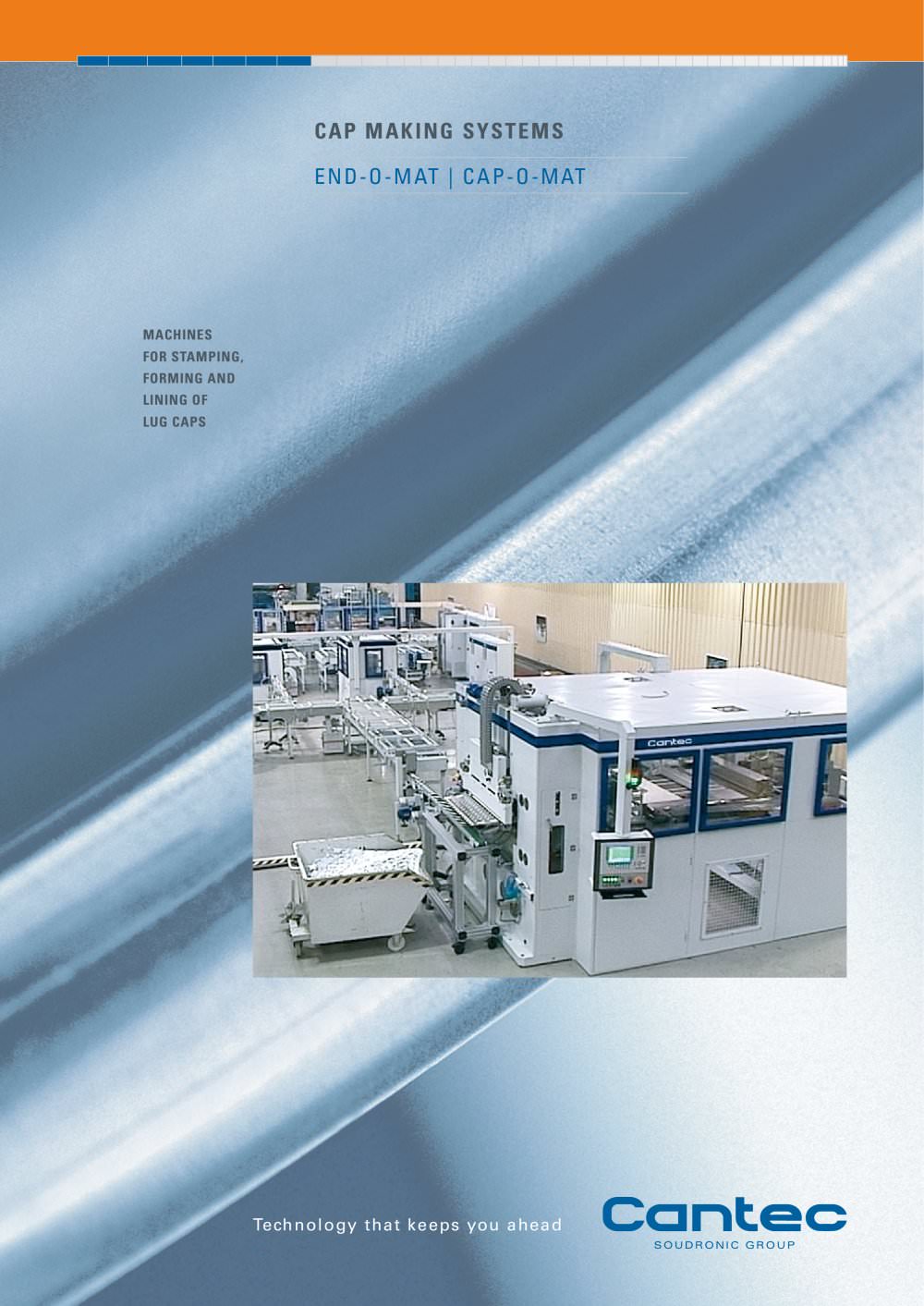

CAP MAKING SYSTEMS END-O-MAT | CAP-O-MAT > MACHINES FOR STAMPING, FORMING AND LINING OF LUG CAPS Technology that keeps you ahead size="-1">

END-O-MAT CAP LINER Rotary cap liner for plastisol with maximized sector for lining > L Capacity between 300 epm and 1200 cpm with 4-, 6-, 8-, or 12-fold tooling, diameter range between 32 mm and 89 mm > L Operator-friendly menus with size-dependent parameter memory (accessed when changing to a different size) reproducible lined ends > High-speed rotary liner L Fine setting of lining guns (nozzle position) sepa- rately in radial and axial direction: In radial direc- tion (diameter setting) by means of a threaded spindle, in axial direction (gun height) by means of a threaded spindle better...

END-O-MATmachines Tooling system for cap stamping CAP-O-MATcap former END-O-MAT rotary cap liner Cap press, 150 t for double row tooling Cap press 50 t for single row tooling Stationary double head liner Straight feederwithout idle stroke Single, zig zag with idle strokes Double, zig zag without idle strokes >

END-O-MAT THE INNOVATIVE CAPMAKING SYSTEM Combined strength and precision: the END-O-MAT multi-die stamping presses.Advanced 4-point drive system dispenses with need for slide guiding system. > L Quick retooling and quick resetting to different sizes > L Capable of producing caps with dia. from 32 to 89 mm > L Maximum sheet width of 1200 mm (47֔) > L Excellent material utilisation thanks to minimal web width > L No lubrication above product and die level > L No special foundation due to drive design which provides for balanced weight > L Low maintenance > END-O-MAT CAP PRESS WITH 150 T L...

P4 STRIP STAMPING PRESS > END-O-MAT cap stamping press P4 STRIP FEED PRESS > SINGLE OR DOUBLE-DIE STAMPING PRESS ACCESSOIRES Max. press force 400 kN Lubricating systemStroke 75 or 100 mm Number of strokes 200 300 / min Strip length 710 ֖ 1150 mm Strip width 70 255 mm P4 strip feed press > NOMINAL CAP DIA. NO. OF STROKES NO. OF DIES CAPACITY CAPS STROKES / MIN. SHELLS / MIN. 38 mm up to 300 2 up to 60043 mm up to 300 2 up to 60053 mm up to 300 2 up to 60058 mm up to 300 2 up to 60070 mm up to 300 2 up to 60082 mm up to 275 2 up to 55089 mm up to 250 2 up to 500 >

CAP FORMING RAIL PRE-CURLING > CAP-O-MAT The CAP-O-MAT is a mature multi-function system designed to meet the technical and commercial canmaking challenge of the future. > L High level of process capability > L Wide variety of application > L Safety and operator protection CAP-O-MAT cap forming toolings (twist off) for 1st, 2nd and 3rd operation (with rail pre-curling) The pre-curl station can be equipped with rail pre-curling technology, which reduces the tooling costs > CAP-O-MAT The pre-curl station prepares the cap for curling. The pre-curl geometry takes into account nosing and curl...

CAP-O-MAT cap forming toolings (twist off) for 1st, 2nd and 3rd operation (with die pre-curling) Alternativly the pre-curl station can be achieved in die pre-curling technology All die-operating tools are designed with overload protection and as cartridge tools for quick and easy changeover. DIE PRE-CURLING The pre-curl station prepares the cap for curling. The pre-curl geometry takes into account nosing and curl radius. DIE CURLING The curling station prepares the cap for the lugging station. The curl geometry is determiner by the lugging station. DIE LUGGING The lugging station determines...

HIGH-SPEED LINE WITH SHEET FEED STAMPING PRESS (TWO ROW TOOLING) AND ROTARY LINER > END-O-MAT 150 T 2 CAP-O-MAT 2 END-O-MAT RANGE CAPACITY STRAIGHT SHEET FEEDING HIGH-SPEED VERSION ROTARY CAP LINER OF APPLICATION CAPS/MIN. 10 16 out 8-fold tooling 12-fold tooling up to dia 70 up to 2400 up to dia 82 up to 1840 HIGH-SPEED LINE WITH SHEET FEED STAMPING PRESS (ONE-ROW TOOLING)AND ROTARY LINER > END-O-MAT 50 T CAP-O-MAT END-O-MAT RANGE CAPACITY ZIG ZAG SHEET FEEDING HIGH-SPEED VERSION ROTARY CAP LINER OF APPLICATION CAPS/MIN. 5 ֖ 8 out 8-fold tooling 12-fold tooling up to dia 70 up to 1200 up...
