ECONOMIC CURING SYSTEMS

ECONOMIC CURING SYSTEMS
6Pages

Catalog excerpts

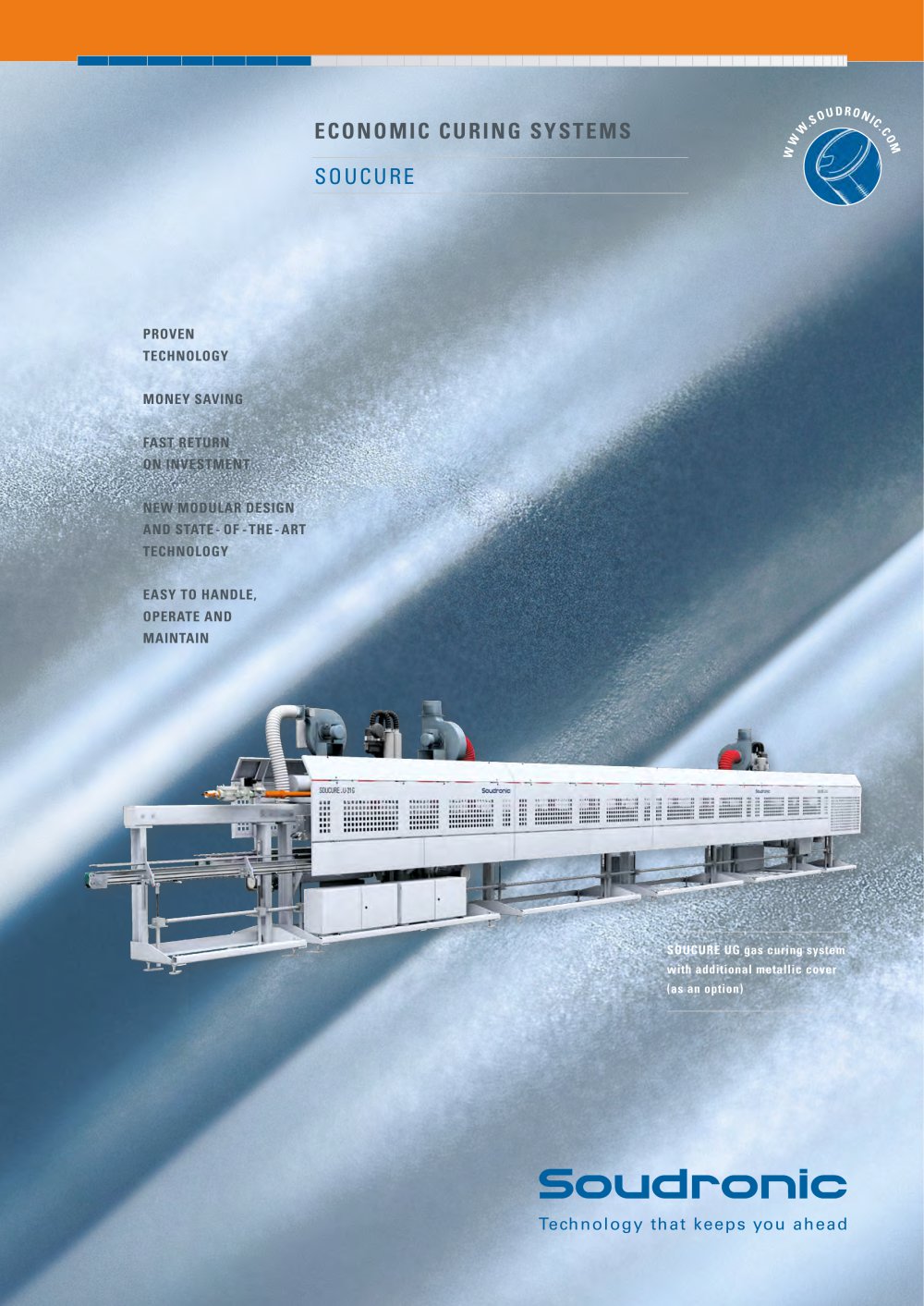

proven technology money saving fast return on investment new modular design and state - of - the - art technology easy to handle, operate and maintain SOUCURE UG gas curing system m with additional etallic cover (as an option)

Open the catalog to page 1

LINEAR GAS HEATING CURING SYSTEMSSOUCURE LG (gas heating) TYPE L-4.5 L-6 L-9 L-12 L-15 L-18 Active curing length 21 m 24 m Air - gas mixer unit to SOUCURE LG, for each burner, which allows an individual heat regulation by means of automatic temperature controllers. The linear gas heating systems SOUCURE LG consist of the following components: • Modular machine frame • Magnetic textile conveyor belts • Hot air burners •ATR Automatic temperature regulation • Central diameter adjustment • Integrated solvent and fume extraction • Prepared for UNICONTROL •Exit...

Open the catalog to page 2

U-SHAPE GAS HEATING CURING SYSTEMSSOUCURE UG (gas heating) TYPE U-9 U-12 U-15 U-18 U-21 The U-shape gas heating system SOUCURE UG consists of the following components: • Modular machine frame • Magnetic textile conveyor belts • Hot air burners • ATR Automatic temperature regulation • Central diameter adjustment • Integrated solvent and fume extraction • Prepared for UNICONTROL • Exit accelerating conveyor EAC • Frequency-controlled drives • Standard or extended inlet module (1.5 m) OPTIONS • Heat exchanger • DCS dynamic can separator instead of EAC • DCU dynamic can upender...

Open the catalog to page 3

SOUCURE Li (induction heating) * Diameter range 200-330 mm with additional equipment The induction heating systems SOUCURE LI consist of the following components: • Modular machine frame • Magnetic textile conveyor belts • Induction elements, no water cooling requested • Central diameter adjustment • Prepared for UNICONTROL •Exit acceleration conveyor EAC Frequency-controlled drives OPTIONS • DCS dynamic can separator instead of EAC • DCU dynamic can upender instead of EAC • Additional metallic cover

Open the catalog to page 4

SOUCURE Ui (induction heating) The induction heating systems SOUCURE UI consist of the following components: • Modular machine frame • Magnetic textile conveyor belts • Induction elements, no water cooling requested • Central diameter adjustment • Prepared for UNICONTROL •Exit acceleration conveyor EAC • Frequency-controlled drives •Standard or extended inlet module (1.5 m) • additional heating lengths on request Turning table to SOUCURE UI OPTIONS - • DCS dynamic can separator instead of EAC • DCU dynamic can upender instead of EAC • Additional metallic cover

Open the catalog to page 5

CONVEYING SYSTEMS DCS dynamic can separator can be integrat- ed into a linear or u-shaped heating system SOUCURE or is available as a stand-alone frequency-controlled drives with UNICONTROL version. Cans can be separated on two exit acceleration conveyors. Speed range - medium-speed Speed range - high-speed Diameter range * Diameter range 45–153 mm on request integrated into a linear or u-shape curing system SOUCURE or is available as stand- tail or lead upending possible alone version. The can upender is prepared Speed range - medium-speed Speed range - high-speed Height range Dynamic can...

Open the catalog to page 6
