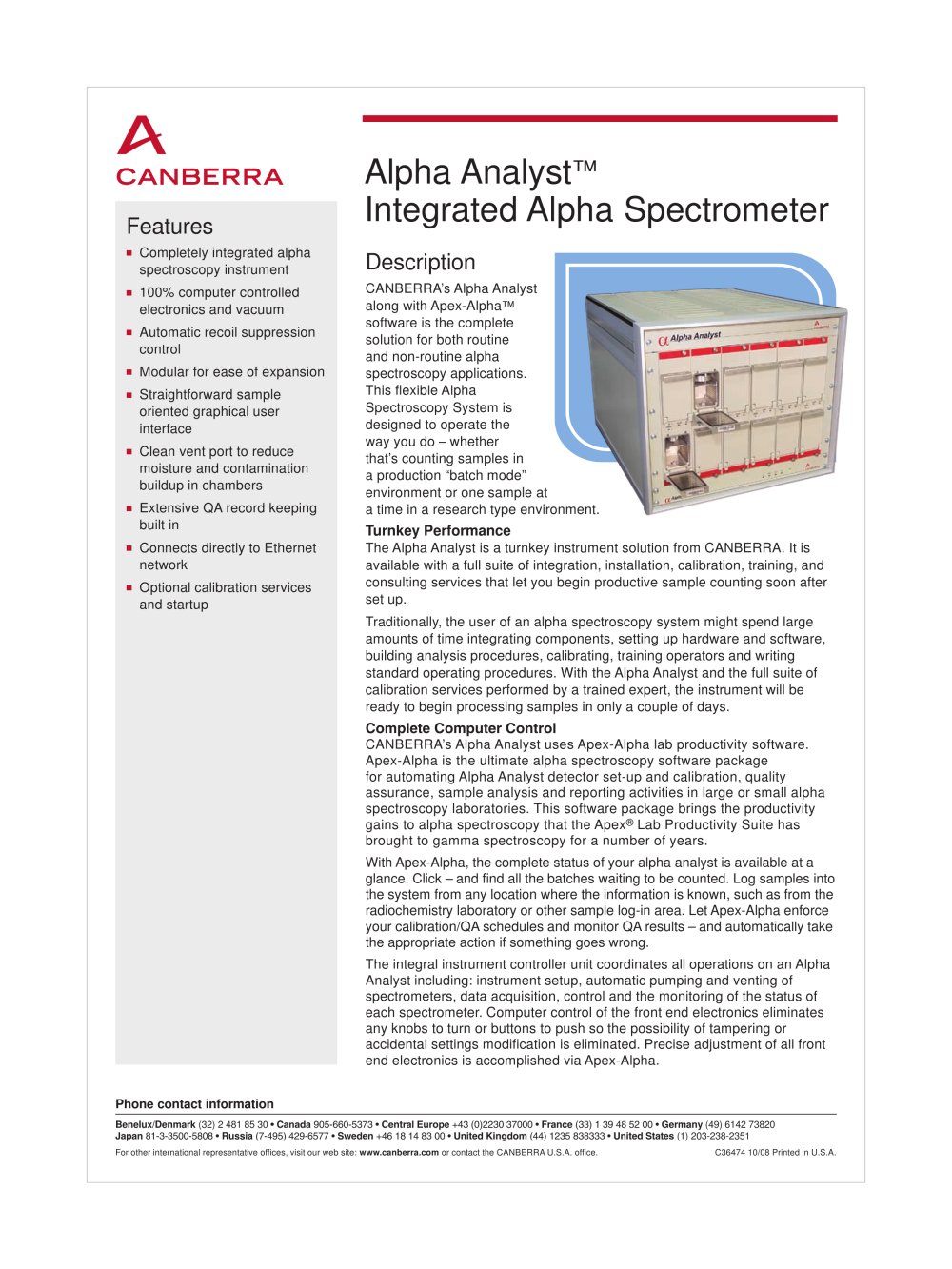

Alpha Analyst Integrated Alpha Spectrometer

Product catalog summary

Overview: The Alpha Analyst™ is an advanced alpha spectroscopy instrument designed for both routine and specialized applications. It offers full computer control, a modular design for easy expansion, and a user-friendly interface. Key features include automatic recoil suppression and clean vent ports to reduce contamination.

Key Features:

Fully computer-controlled electronics and vacuum systems.
Automatic recoil suppression to maintain low backgrounds and extend detector life.
Modular design for easy expansion.
Graphical user interface focused on sample management.
Ethernet connectivity for network integration.
Optional calibration and startup services.

Software Integration: The system uses Apex-Alpha™ software for automating setup, calibration, and quality assurance. It supports both desktop and client/server versions, utilizing SQL Server® 2005 for data management, simplifying batch processing, sample loading, and QA monitoring.

Operational Efficiency: Designed to minimize setup time with factory integration and testing, the system includes comprehensive operating procedures and offers optional calibration and consulting services for advanced setup.

Technical Specifications:

Dual Alpha Spectrometer Module with two vacuum chambers.
Sample size up to 51 mm in diameter, with adjustable sample-to-detector spacing.
Vacuum range from 0 to >26.7 kPa, with automatic bias control.
Recoil suppression with a +5 V bias and pressure regulation within ±10%.
Data retention for over 3 days in case of power loss.
Ethernet and RS-232 interfaces for communication and diagnostics.

Advanced Features: Includes PIPS detectors for superior performance, clean vent features to reduce radon and moisture, and compatibility with legacy VMS systems.

Controller Indicators:

Fault: Yellow LED indicates vacuum pressure issues or possible valve problems.
Power: Green LED shows the controller is powered.
Communication Status: Three LEDs indicate communication link status between Host and Controller.
