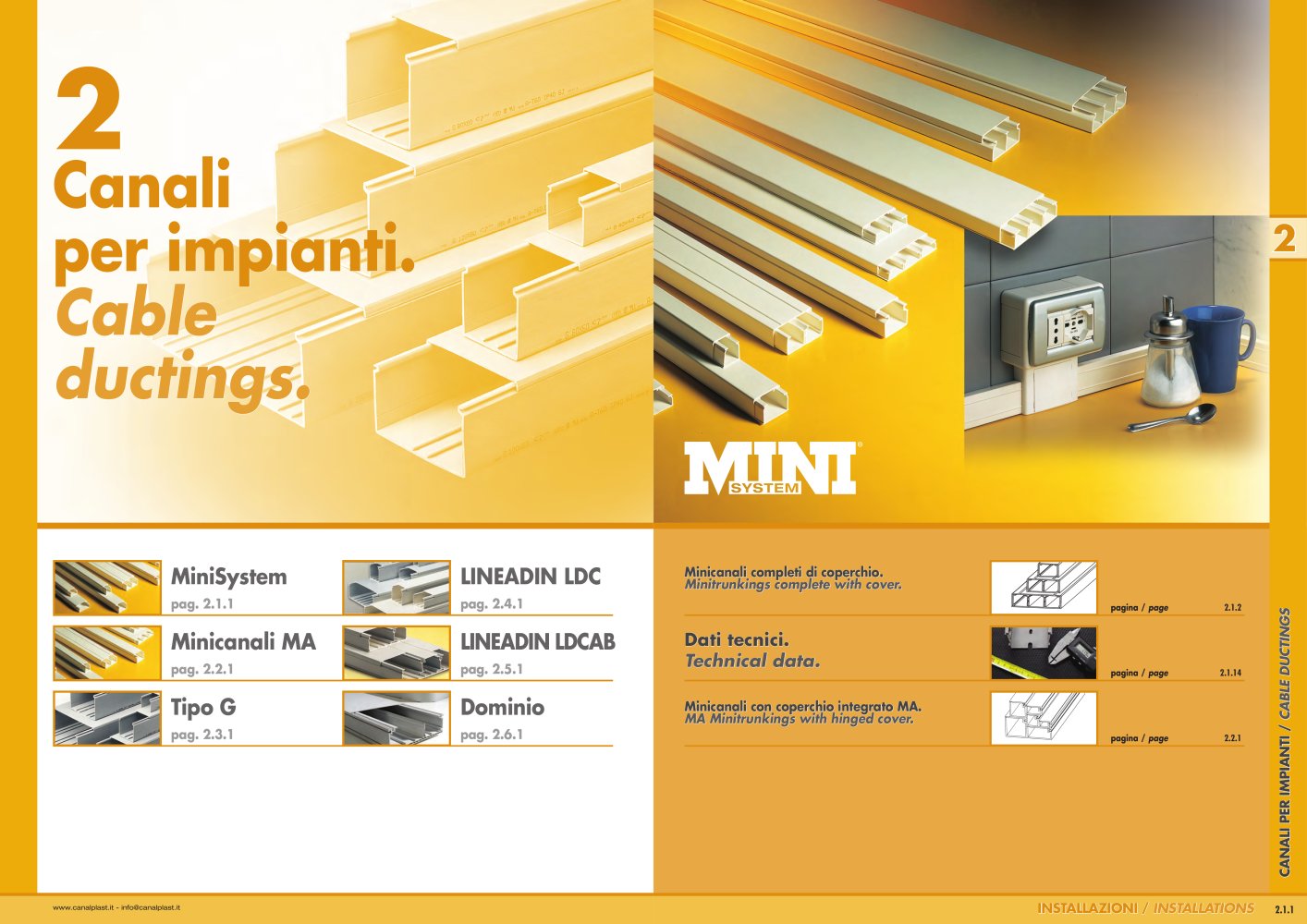

MINISYSTEM.
1 / 10 PagesView full catalog
MINISYSTEM.
Product catalog summary
Overview: This document outlines the specifications and installation instructions for Canalplast's cable ducting and junction box products. It includes details such as part numbers, dimensions, color options, and packaging for each product type.
Product Specifications:
- Trunking and Junction Boxes: Available in various sizes from 10x10 mm to 60x20 mm, identified by part numbers and color codes, mainly in white (BEU).
- Junction Boxes: Designed for trunking connections, available in sizes like 150x150x65 mm, suitable for channels up to 120x40 mm.
- Accessories: Includes adaptors for telephone plugs and specific accessories for socket boxes, with detailed dimensions and interaxis measurements.
Installation Procedures:
- Junction Box Installation: Instructions include cutting along pre-cut lines to fit trunking dimensions and fixing boxes to walls using specific accessories.
- Switchboard Installation: Details on fixing profiles, inserting interrupters, and wiring, with a maximum of 7 modules and specific power dissipation limits.
Technical Data:
- Material Specifications: Products are made from self-extinguishing rigid PVC, Class 1 (UL94-VO).
- Dimensions and Weight: Detailed dimensions, standard carton lengths, and weights are provided for each product type.
Recommendations:
- Ensure compatibility of junction boxes and trunking sizes before installation.
- Follow cutting and installation instructions carefully to maintain product integrity and safety standards.
