FILOCP. Steel wire cable tray

Product catalog summary
Technical Specifications
The document outlines specifications for steel wire cable trays designed for modern electrical systems. These trays offer flexibility, speed, and safety, and are available in finishes such as electro-zinc-plated, painted, and stainless steel, suitable for various environments including indoor, outdoor, and industrial settings.
Installation Procedures
Installation involves cutting and bending straight elements to form curves, allowing for quick setup without additional accessories. This makes the trays ideal for industrial and underfloor applications.
Standards and Recommendations
The trays comply with CEI EN 61537 standards, ensuring they meet load capacity and environmental condition requirements. A chart is included to recommend zinc-plated steel types based on environmental aggressiveness.
Advantages
The FILOCP wire cable tray system is lightweight yet sturdy, allows easy cable inspection, reduces dust accumulation, and facilitates heat dissipation. Its open structure is suitable for fire-risk areas, allowing sprinkler water jets to reach lower levels.
Product Variants and Ordering Information
Various product variants are listed with dimensions, EAN codes, and packaging details. Trays are available in different sizes and finishes, with specific part numbers for ordering. The standard tray length is 3 meters.
Protective Coatings
Protective coatings include electro-zinc-plating, which deposits a zinc layer on steel through electrolysis, protecting against environmental wear.
Load Capacities
Maximum load capacities are provided in Newton/meter for spans of 1m, 1.5m, and 2m, ensuring trays can support required loads in various scenarios.
Specifications for Installation Components
Specifications for components like earthing copper plates, ceiling brackets, and threaded rods are detailed, including dimensions, part numbers, and packaging.
Installation Procedures
Quick installation techniques are emphasized, such as the "Quick Installation" series, which allows fastening by bending tongues, saving time.
Standards and Recommendations
Disk saws are discouraged for cutting trays due to burrs and zinc coating issues; shears with asymmetric blades are recommended.
Key Components
  • FCPMS: Ceiling brackets for direct tray fastening.
  • FCPGC6M: Joint for creating bends in trays.
  • FCPSQ: Quick installation separator for wire cable trays.
  • FCPGQ: Quick joint kit for connecting trays without screws.
Technical Data
Technical data includes dimensions, load capacities, and installation instructions for components, with information on electro-zinc plating and stainless steel finishes.
Installation Tips
For level changes and bends, cutting and bending wires as needed is suggested, using specific joints for secure fastening. The "Quick Installation" series is highlighted for efficiency.
Specifications for Additional Components
Specifications for threaded rods, quick installation spacers, and brackets are provided, detailing dimensions and load capacities.
Installation Procedures
Installation involves using screws for fixing extensible side walls in T-junctions, with quick installation spacers ensuring stability.
Standards and Recommendations
Regular placement of quick spacers is recommended to prevent tray deflection. Specific elements like FCPSC53 and FCPSPQ ensure secure installation.
Key Components and Their Functions
  • Threaded Rods: Used for ceiling suspension, allowing central or side fastening.
  • Quick Installation Spacers: Facilitate fast installation without screws, preventing deflection.
  • Brackets: Available in various types for different load capacities.
Installation Aids
Optional slots and fins are highlighted for customization and secure installation, with dimensions for quick installation components like cable exit chutes provided.
See more

Catalog excerpts

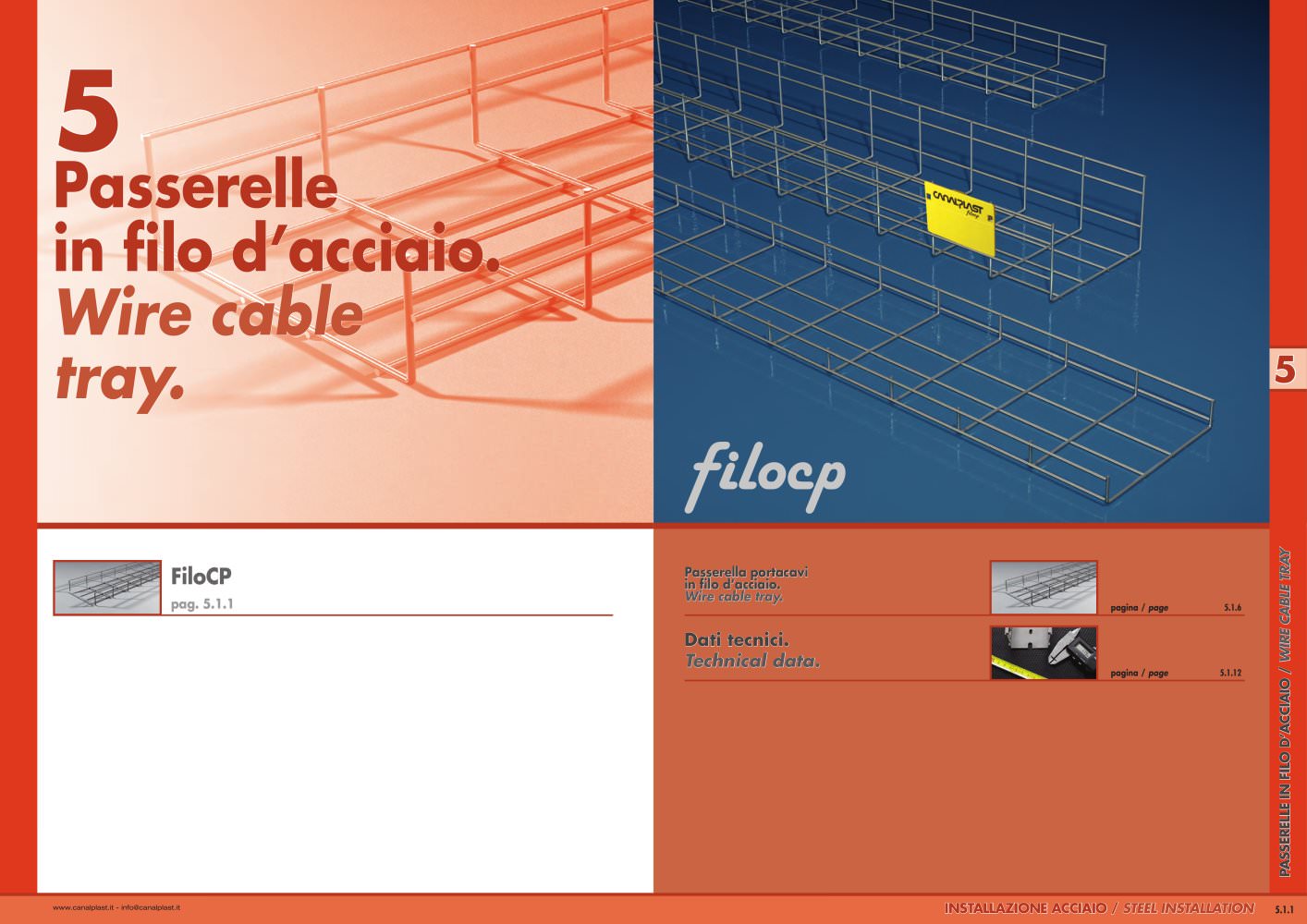

FILOCP. Steel wire cable tray -1

Passerella portacavi in filo d’acciaio. Wire cable tray. pagina / page 5.1.12 pagina / page 5.1.6 Dati tecnici. Technical data. 5 PASSERELLE IN FILO D’ACCIAIO / WIRE CABLE TRAY 5.1.1 INSTALLAZIONE ACCIAIO / STEEL INSTALLATION www.canalplast.it - [email protected] 5 Passerelle in filo d’acciaio. Wire cable tray. FiloCPpag. 5.1.1

 Open the catalog to page 1
FILOCP. Steel wire cable tray -2

FCPC FCPC FCPPC1313 QUICK installation FCPPC1313 QUICK installation FCPPG1243 FCPGR73(o FCPGQ) QUICK installation FCPICQ75 QUICK installation FCPSQ QUICK installation FCPS FCPBF FCPSC53 FCPML + FCPFM303 FCPMP + FCPFM303 FCPMP + FCPFM303 FCPMH + FCPFM303 FILOCP. Elementi del sistema. System components. FCPBF FCPPG1243 FCPSC53 FCPICQ75 QUICK installation FCPGC6M FCPET303 FCPET303 FCPGC6M FCPBF FCPPU FCPDP + FCPFM303 (o FCPDPQ) FCPSPQ QUICK installation FCPSPQ QUICK installation FCPMQR QUICK installation FCPMQR QUICK installation 5 PASSERELLE IN FILO D’ACCIAIO / WIRE CABLE TRAY 5.1.3 5.1.2 www.canalplast.it...

 Open the catalog to page 2
FILOCP. Steel wire cable tray -3

Sendzimir Elettrozincato Electro-zinc-plated Verniciato Painted INOX AISI 304 Stainless steel AISI 304 Ambiente interno/Indoor ideale/ideal ideale/ideal ottimo/very good non consigliato/not recommended Amb. esterno/Outdoor possibile/possible possibile/possible ottimo/very good non consigliato/not recommended Amb. alimentare/Food industry non consigliato/not recommended ideale/ideal non consigliato/not recommended ottimo/very good Amb. marino/Marine environment non consigliato/not recommended non consigliato/not recommended non consigliato/not recommended ideale/ideal Amb. acido/Acid environment...

 Open the catalog to page 3
FILOCP. Steel wire cable tray -5

5 PASSERELLE IN FILO D’ACCIAIO / WIRE CABLE TRAY 5.1.8 www 5.1.9 .canalplast.it - [email protected] INSTALLAZIONE ACCIAIO / STEEL INSTALLATION Tipo EAN Imballo pz. Part number SZ Packing pcs. FCPPC1313 Piastra Fissaggio Cassette Derivazione Quick Installation. Quick Installation plate for derivations box. Dimensioni/Dimensions: 135x122mm. FCPPC1313 105955 20 FCPPG1243 FCPDP Tipo EAN Imballo pz. Part number SZ Packing pcs. Plate for hose derivation, supplied with bolts. Dimensioni/Dimensions: 120x45mm. FCPPG1243 106655 20 Tipo B mm. EAN Imballo pz. Part number SZ Packing pcs. Distanziale a parete...

 Open the catalog to page 5
FILOCP. Steel wire cable tray -6

.1 Un sistema facilmente integrabile. La serie FILOCP viene utilizzata anche per gli impianti sottopavimento flottante. Con l’utilizzo della Piastra Fissaggio guaine (FCPPG1243) è possibile ricavare le uscite per il raccordo con altri elementi portautenze come quelli di seguito riportati: A system that can be easily integrated. The FILOCP Series is also used in cavity floor systems. By using the Hose Fixing Plate (FCPPG1243) it’s possible to get branchings to connect with the following socket elements: FCPPU FCPPUL15 leggero/light 106310 4 FCPPUP30 pesante/heavy 106327 4 Tipo EAN Imballo pz....

 Open the catalog to page 6
FILOCP. Steel wire cable tray -7

Tipo Base Sezione mm2 Part number Base Section mm2 Tipo Base Sezione mm2 Part number Base Section mm2 Variazioni di piano / Changes of level Nel caso si presenti la necessità di una variazione del piano della passerella, non servono elementi aggiuntivi per poterla eseguire; si procede al taglio di pochi fili d’acciaio della stessa e alla piega secondo la forma più adatta. In case you need to make a level variation of the tray, you do not need any additional component, you just need to cut a few wires and then bend the other ones to suit your needs. Come tagliare i fi li / How to cut the wires...

 Open the catalog to page 7
FILOCP. Steel wire cable tray -8

Curve / Bends Come per le variazioni di piano, per poter eseguire le curve basta tagliare alcuni fili d’acciaio, piegare la passerella e fissare tra loro gli elementi con l’apposito elemento per giunzioni curve (FCPGC6M). Same as for the changes of level, when your tray needs to make a bend, you just need to cut a few wires and then bend the other ones and fasten them with the bend-joining fitting (FCPGC6M). FCPGC6M Base Lunghezza / Length A 100 1100 3 150 1100 4 200 1100 4 300 1500 6 400 1900 8 500 2100 9 600 2500 11 Curve piane a 90° raggiate 90° Radius bend 1) Effettuare i tagli come da disegno...

 Open the catalog to page 8
FILOCP. Steel wire cable tray -9

FCPMS Staffa “C” a soffitto, usa fissaggi FCPFM303. “C” ceiling bracket, for the installation needs to order FCPFM303. La staffa a soffitto a “C” permette di fissare direttamente la passerella al soffitto senza bisogno di ulteriori supporti. Fissaggio passerella con ancoretta FCPFM303. The “C” shaped ceiling bracket allows you to fasten the tray directly to the ceiling without any further support. The tray is then fixed upon it by means of plate FCPFM303. FCPPC1313 FCPPG1243 Piastra Fissaggio Cassette Derivazione Quick Installation. Quick Installation plate for derivations box. Dimensioni/Dimensions:...

 Open the catalog to page 9
FILOCP. Steel wire cable tray -10

FCPET303 FCPBF FCPGQ Kit Giunto Lineare Attacco Rapido. Quick joint kit. Il kit giunto lineare ad attacco rapido permette di realizzare l’aggancio e il fissaggio tra due passerelle senza l’utilizzo di viteria e in modo veloce, riducendo i tempi di installazione: 1) Appoggiare la barretta nella parte interna della passerella, facendo coincidere le scanalature con i fili della passerella. Inserire dall’alto i ferretti di fermo facendoli passare nelle apposite scanalature. 2) Eseguire le stesse operazioni nell’altro lato della passerella. 3) Inserire l’elemento fissante sul fondo della passerella...

 Open the catalog to page 10
FILOCP. Steel wire cable tray -11

60 mm 170 mm B 7x25 40 mm 3 mm 12x20 FCPDP FCPMP FCPMH FCPML Mensola a parete. Fissaggio passerella con ancoretta FCPFM303. Wall bracket. Fix the tray by plate FCPFM303. Mensola perform. Fissaggio passerella con ancoretta FCPFM303. Perform bracket. Fix the tray by plate FCPFM303. Mensola High Perform. Fissaggio passerella con ancoretta FCPFM303. High perform bracket. Fix the tray by plate FCPFM303. Distanziale a parete o pavimento. Fissaggio passerella con ancoretta FCPFM303. Wall or floor spacer.Fix the tray by plate FCPFM303. 195 mm B 50 20 FCPPU FCPFS Profilato a “U” per sospensione. Dim....

 Open the catalog to page 11
