ONE50

Product catalog summary

Introduction
Urbaco, a part of the CAME Group, is renowned for inventing the retractable bollard. The company focuses on enhancing urban spaces by managing traffic flows and reducing environmental pollution. Urbaco offers high-quality products that blend seamlessly into both historical and modern settings, supported by a robust network of partners for efficient service delivery.

Product Overview: ONE50 Hydraulic Bollard

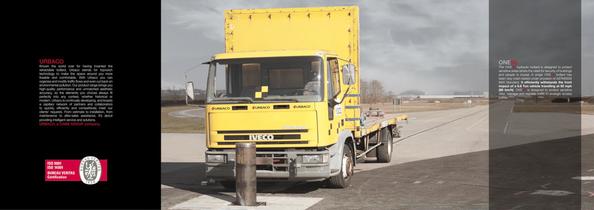

The ONE50 hydraulic bollard is engineered to secure sensitive areas, ensuring the safety of buildings and people. It has been crash-tested to meet the ASTM2656 M50 Standard, capable of withstanding the impact of a 6.8-ton vehicle at 50 mph (80 km/h). The bollard is suitable for various applications, including government buildings, embassies, nuclear plants, and airports.

Technical Specifications

Diameter: 325mm
Height: 1000mm
Total Weight: 1150kg (bollard head: 560kg)
Hydraulic power-drive with a working pressure of 45 bars
Operating temperature range: -20°C to +70°C
Rising time: 5.3 seconds
Lowering time: 3 to 6 seconds, depending on weather conditions
Electric protection rating: IP67

Impact Resistance
The ONE50 bollard is certified to the ASTM F-2656 M50 standard, equivalent to DOS and PAS68 standards, ensuring high impact resistance.

Compatibility and Advantages
The bollard is compatible with SYGMA II, Urbaco's centralized management software. It features an oven-hardened zinc primer coat for corrosion resistance and a matt-finish thermosetting polyester powder coating.

Finishing Options

Red LED lighting ring
Stainless steel chequered plate for top and cover finishing
Emergency fast rising (1.5 seconds)
Manual rising option
Rainwater draining pump
Frost-protection devices for -20°C and -50°C
Buzzer for signaling moving bollard
Stainless steel jacket and non-standard RAL color options

Installation and Models
The ONE50 bollard is available in different sets (ONE50-SET1, ONE50-SET2, ONE50-SET3) to secure varying access widths. It includes a technical center and connection kit for installation.

Conclusion
Urbaco's ONE50 hydraulic bollard offers a robust solution for securing sensitive sites with high impact resistance and customizable features, ensuring both safety and aesthetic integration into various environments.

Catalog excerpts

Known the world over for having invented the retractable bollard, Urbaco stands for topnotch technology to make the space around you more liveable and comfortable. With Urbaco you can organise and modify traffic flows and even cut back on environmental pollution. Our product range brings you high-quality performance and unmatched aesthetic accuracy, so the elements you choose always fit perfectly Into any context, whether historical or modern. Urbaco Is continually developing, and boasts a capillary network of partners and collaborators to quickly, efficiently and competitively meet our clients'...

Open the catalog to page 2

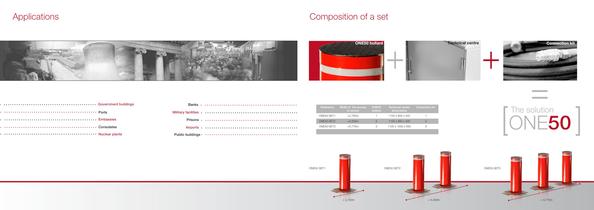

chnical centre Government buildings Nuclear plants Reference Width of the access ONE50 Technical centre Connection kit to secure bollard dimensions

Open the catalog to page 3

Hydraulic power-drive Working pressure : 45 bars Operating temperature from -20°C to +70°C Lowering time from 3 to 6s (depending on weather conditions) Electric protection rating : IP67 1 High impact resistance One bollard that stops a 6.8t truck running at 50mph Certified to ASTM F-2656 M50 standard* Compatible with SYGMA II, URBACO centralized management • Oven-hardened zinc primer coat for reinforced corrosion resistance improved adhesion for top coat • Matt-finish thermosetting polyester powder coating • Top and Cover finishing: Stainless steel chequered plate • Emergency fast rising (1.5s)...

Open the catalog to page 4

Fixed Normal foundation Fixed Shallow • Class 2 White reflective tape • Bollard head, cover and casing made In steel • Electric protection rating : IP67 • Oven-hardened zinc primer coat for reinforced corrosion resistance and improved adhesion for top coat • Matt-finish thermosetting polyester powder coating • Top and Cover finishing: Stainless steel chequered plate • Other RAL than standard

Open the catalog to page 5

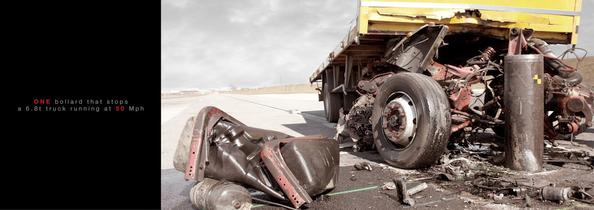

ONE bollard that stops

Open the catalog to page 6

Urbaco S.A. Z.A. du Couquiou 84320 Entraigues - FRANCE www.urbaco.com - [email protected] Intellectual property of URBACO – Copying forbidden – Specifications not contractually binding - Changes may be made without prior notice - Most of the models shown are patented – 12/2009 URBACO S.A – a limited liability company with a capital of 1.5 M€ - Siret 33944567800032 R.C.S AVIGNON 339 445 678 – VAT: FR 06 339 445 678 DC-ONE50-EN (06-2011)

Open the catalog to page 7

ONE50
