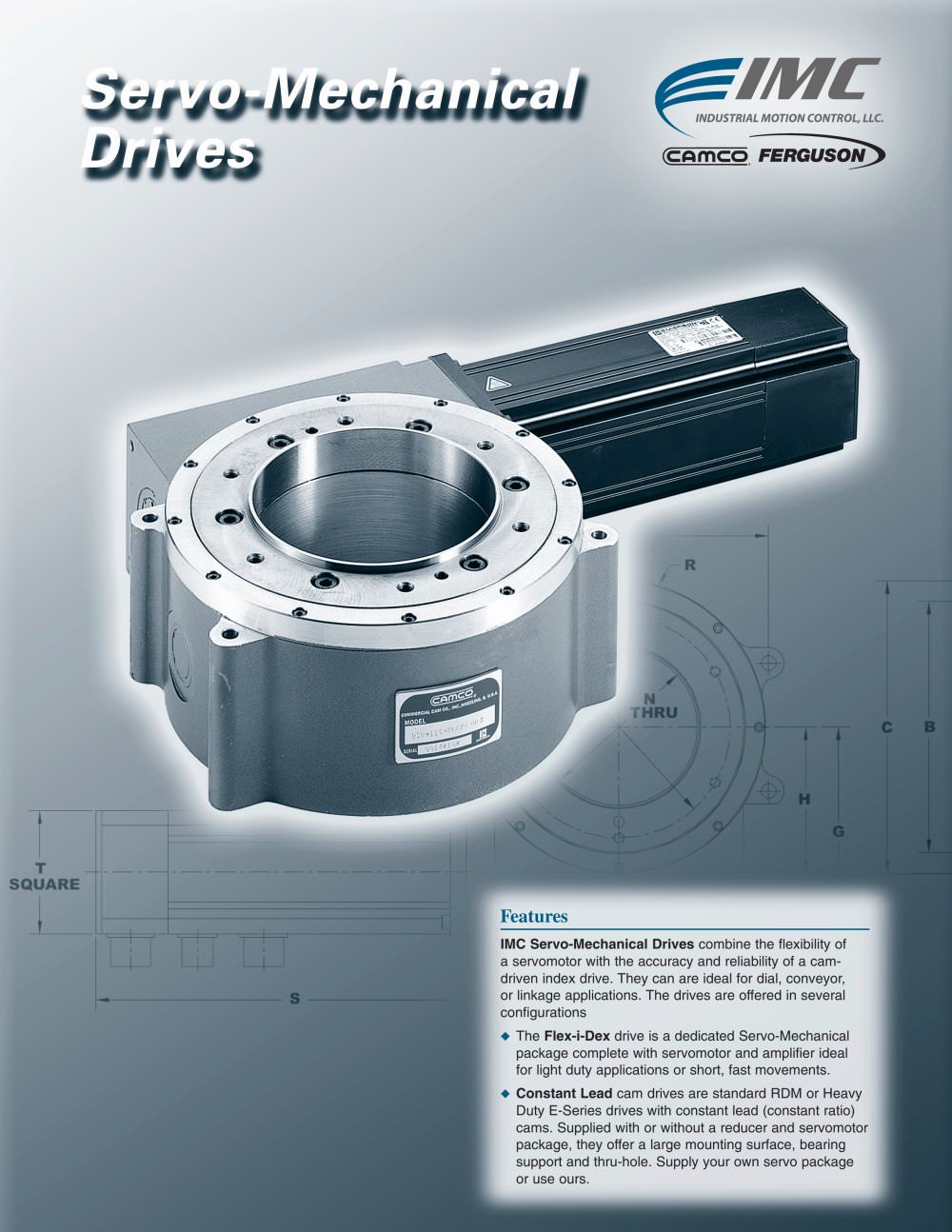

CAMCO Sevo-Mechanical Drives (K)

Product catalog summary

Overview
IMC Servo-Mechanical Drives integrate the flexibility of a servomotor with the precision of a cam-driven index drive, suitable for applications such as dial, conveyor, or linkage systems. These drives are available in various configurations, including the Flex-i-Dex and Constant Lead cam drives.

Flex-i-Dex Drive
The Flex-i-Dex is a dedicated Servo-Mechanical package ideal for light-duty applications or short, fast movements. It includes a servomotor and amplifier, and is available with either a large flange output or a shaft output. The package comes with Control Techniques Servo Motor, Uni-Drive SP controller, power and logic cables, and Power Tools software.

Constant Lead Cam Drives
These drives are standard RDM or Heavy Duty E-Series drives with constant lead cams, available with or without a reducer and servomotor package. They offer a large mounting surface, bearing support, and a thru-hole, allowing for flexibility in servomotor package selection.

Servo-Mechanical Drive Features

Zero-backlash, high-efficiency, long-life, low-maintenance precision rotary actuator.
Large output flange and bearing with metric or imperial tapped holes.
Large center hole for stationary center post or utility lines.
Output shaft with precision cam followers meshing with a hardened and ground cam.
Zero backlash achieved by preloading cam followers against the cam surface.
High efficiency due to cam followers rolling on the cam while submerged in oil.
Servomotor mounted directly to the camshaft with a locking clamp collar.
Secondary reducers with minimum backlash and NEMA or IEC frames.

Technical Specifications
Flex-i-Dex Models:

DSD-102 and DSD-150 with single reduction ratios of 20:1 and 24:1 respectively.
Maximum inertia on output dial: 10,000 lb-in² for DSD-102 and 100,000 lb-in² for DSD-150.
Accuracy: ±30 arc seconds; Repeatability: ±7 arc seconds.

RDM Models:

Reduction ratio range from 2:1 to 24:1.
Maximum inertia on output dial varies from 2,000 lb-in² to 705,000 lb-in².
Accuracy ranges from ±55 to ±17 arc seconds; Repeatability from ±18 to ±4 arc seconds.

E-Series Models:

Reduction ratio range from 2:1 to 32:1.
Maximum inertia on output dial ranges from 2,152,000 lb-in² to 86,250,000 lb-in².
Accuracy ranges from ±26 to ±7 arc seconds; Repeatability from ±6 to ±1 arc seconds.

Applications
The Servo-Mechanical Drive is ideal for applications requiring flexibility, electronic synchronization, digital communication, and high accuracy and repeatability. It is suitable for both light and heavy-duty applications, with complete package solutions available for the RDM and E-Series drives.

Catalog excerpts

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:16.00pt "Arial", sans-serif; } .font4 { font:17.00pt "Times New Roman", serif; } .font5 { font:13.00pt "Verdana", sans-serif; } (CflmCO FERGUSOiTy Servo-Mechanical Drives For heavier applications IMC has complte package solutions using the RDM Series or E-Series Drives with constant lead (constant ratio) cams. These are available as a complete solution including the servo package or as the mechanical...

Open the catalog to page 4

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:16.00pt "Arial", sans-serif; } .font4 { font:12.00pt "Times New Roman", serif; } .font5 { font:17.00pt "Times New Roman", serif; } .font6 { font:13.00pt "Verdana", sans-serif; } (CflmCO FERGUSOtTy Servo-Mechanical Drives Technical Spcifications Flex-i-Dex Unit s DSD-102 DSD-102S DSD-150 DSD-150S Single Rduction Ratio Integ er 20:1 24:1 Maximum Inertia on Output Dial lb-in 10,000 100,000 Inertia reflected...

Open the catalog to page 8
