CAMCO RD/Intermittor Index Drives (C)

Product catalog summary

Overview

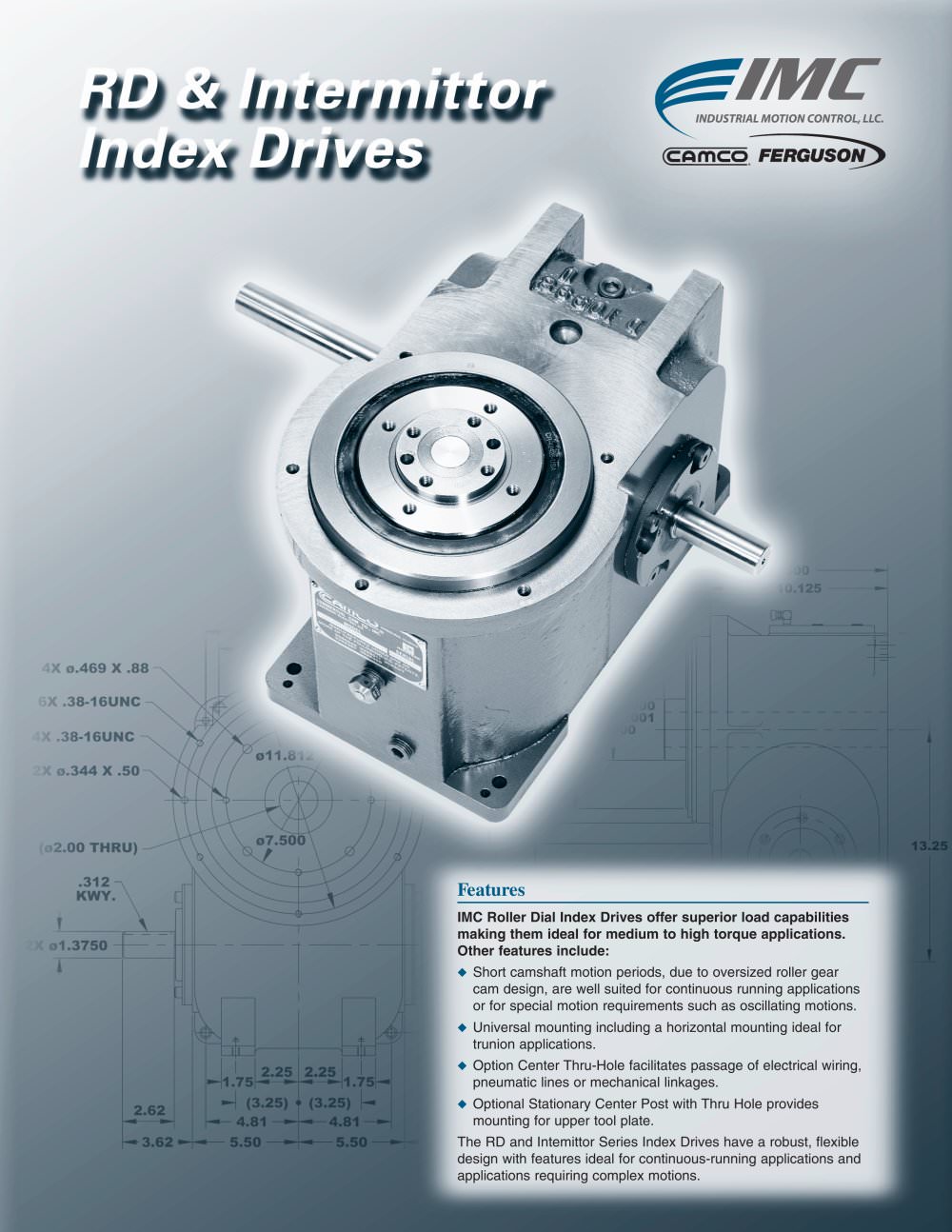

IMC Roller Dial Index Drives are engineered for medium to high torque applications, providing excellent load capabilities. They are designed for continuous running and special motion requirements, such as oscillating motions, and support universal mounting options, including horizontal mounting for trunnion applications. Features include a center thru-hole for wiring and pneumatic lines, and a stationary center post for mounting upper tool plates.

Technical Specifications

Output Load Capacity: Radial: 2,700 lbs, Thrust/Axial: 1,600 lbs, Moment: 5,800 in.-lbs.
Accuracy: ±47 arcsec / ±.0027" at 12" Radius.
Repeatability: ±12 arcsec / ±.0007" at 12" Radius.

Indexer Capacities
The RD and Intermittor Series Index Drives are robust and flexible, suitable for continuous-running applications and complex motions. They offer various models with different stop and index periods, with capacities ranging from 2,049 in-lb to 5,100 in-lb at 50 RPM.

Standard and Optional Accessories
Standard packages include a DC motor, Varipak DC Motor Control, cycle cam, and limit switch. Optional accessories include AC drive packages, reducers, overload clutches, center thru holes, stationary center posts, dual cam and limit switches, electric and air clutch-brakes, and custom dial plates.

Additional Models
Models like the 800RD, 1301RD, and 1801RD offer higher load capacities and different technical specifications, catering to various industrial needs. Each model provides specific output load capacities, accuracy, and repeatability metrics, with optional accessories to enhance functionality.

Technical Specifications and Features
Key features of Intermittor Drives include:

AC and DC motor options with varying horsepower and inverter drive capabilities.
Reducers with ratios from 5:1 to 60:1, including R4 and R5 models.
Output overload clutch models with adjustable settings for different torque requirements.
Various cam and limit switch configurations, including dual cam and left-hand cam options.
Customizable dial plates and stationary center posts.

Technical Specifications
For the 242 Intermittor Indexer:

Output load capacities: Radial load of 6,800 lbs, Thrust/Axial load of 4,700 lbs, and Moment of 40,600 in.-lbs.
Accuracy and repeatability: ±39 arcsec / ±.0068" at 36" Radius and ±10 arcsec / ±.0017" at 36" Radius, respectively.
Various indexer capacities and motion periods, with specific models and their corresponding load capacities and internal inertia values.

Ordering Procedures
Ordering procedures include:

Model and input shaft configuration options, including single and double input configurations.
Cam lead options, with right-hand as standard and left-hand available.
Mounting positions and input shaft orientations, with diagrams for clarity.

Additional Notes
All dimensions are subject to change, and customers are advised to request current drawings from IMC for accurate measurements. Contact information for Industrial Motion Control, L.L.C. is provided.

Catalog excerpts

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Times New Roman", serif; } All dimensions are subject to change. For actual dimensions, please request the current drawing from IMC. Standard Package_ 425RD Indexer with ♦ R180 Reducer (ratios from 5:1 to 60:1) ♦ 1/3 hp DC Motor - Double Extended Worm Shaft (Input) ♦ Varipak DC Motor Control (up to 30 cpm) - Worm Shaft Handwheel ♦ Cycle Cam and Limit Switch Mounted to...

Open the catalog to page 3

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:21.00pt "Arial", sans-serif; } .font4 { font:6.00pt "Arial Black", sans-serif; } .font5 { font:14.00pt "Arial Black", sans-serif; } .font6 { font:7.00pt "Times New Roman", serif; } .font7 { font:12.00pt "Times New Roman", serif; } (cftmco RD Index Drives 07.00 -- 2 HP MOTOR 180V DC 1725 RPM 16.5 +.000 -.001 01.1875 10.5 5.20 i +.0000 -.0005 -+ 02.4375 7.75* 7.50 .75 01.1875* 12.88...

Open the catalog to page 7

CAMCO RD/Intermittor Index Drives (C)-13

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:15.00pt "Arial", sans-serif; } .font5 { font:6.00pt "Arial Black", sans-serif; } .font6 { font:14.00pt "Arial Black", sans-serif; } .font7 { font:12.00pt "Times New Roman", serif; } .font8 { font:17.00pt "Times New Roman", serif; } FERGUSON Intermittor Drives 07.75 13.87 1.5HP MOTOR 180V DC 1725 RPM D____ t- J C 9.75 9.31 = OPTIONAL...

Open the catalog to page 13
