CAMCO Precision Link Conveyors (J)

CAMCO Precision Link Conveyors (J)

Product catalog summary

Overview

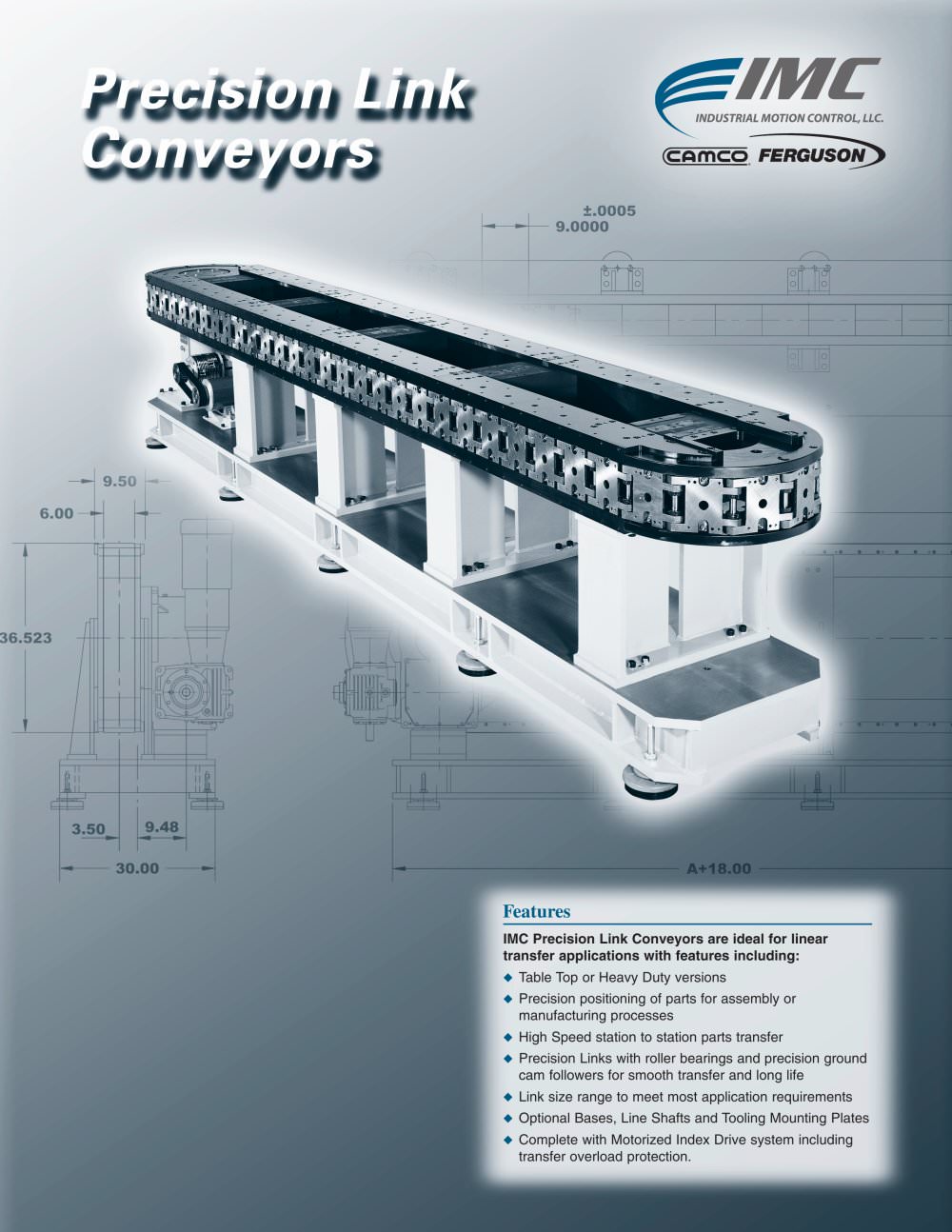

IMC Precision Link Conveyors are engineered for linear transfer applications, offering precision positioning and high-speed transfer capabilities. They are available in Table Top and Heavy Duty versions, with options for bases, line shafts, and tooling mounting plates.

Features

Precision positioning suitable for assembly and manufacturing processes.
High-speed transfer between stations.
Durable precision links with roller bearings and precision ground cam followers.
Customizable link sizes to fit specific application needs.
Motorized Index Drive system with overload protection.

High Speed and Accuracy
The conveyors utilize precision-machined chain links driven by a high-performance IMC Index Drive, ensuring high accuracy and speed through a precision machined chordal compensation cam.

Versatility and Customization
Conveyors can be customized in terms of length, index distance, motion, link fixture mounting pattern, and drive package arrangement. Custom options include tooling plates, line shafts, and bases.

Precision Links
Each link is precisely machined with roller bearings for smooth operation. Hardened ground cam followers ensure precise positioning, with all bearings greased and sealed for maintenance ease and longevity.

Design and Configuration

Table Top Precision Link Conveyors offer standard link lengths of 1.5", 2.0", 3.0", 4.5", and 6.0".
Heavy Duty versions offer link lengths of 6.0", 9.0", and 12" in Over/Under and Carousel configurations.
Conveyors can be mounted in any direction without affecting performance.

Drive Packages

Available in Standard and Heavy Duty for both Over/Under and Carousel configurations, featuring various index drives, overload clutches, gear reducers, and motor controls.

Applications
Ideal for in-line automatic assembly applications, these conveyors provide a reliable foundation for automation systems with high load capacity and precision.

Specifications

Conveyors are depicted with a 10-tooth sprocket. Dimensions may change, and current drawings should be requested for accuracy.
Available in link sizes: 1.5, 2.0, 3.0, 4.5, 6.0, 9.0, and 12.0.
Types include Table Top or Heavy Duty, with Over/Under or Carousel styles.
Standard and custom lengths and heights are available.

Drive Package

Standard Drive Package includes a 242 Intermittor, R5 Reducer, 7.5 hp AC Motor, Posidyne Clutch-Brake, and Brake Cam & Limit Switch.
Drive types can be Standard, Alternate, Heavy-Duty, or Special, with options for 1 or 2 drive sides for Over/Under configurations.

Ordering Procedure

Specify link size, type, style, length, and height when ordering.
For drive packages, specify type, drive side, index distance, and indexer model.

Technical Assistance

IMC sales agents provide verification and sizing calculations using the IMC Sizing Program.
