CAMCO Parallel Index Drives (E)

CAMCO Parallel Index Drives (E)
1 / 18 PagesView full catalog

CAMCO Parallel Index Drives (E)

Product catalog summary

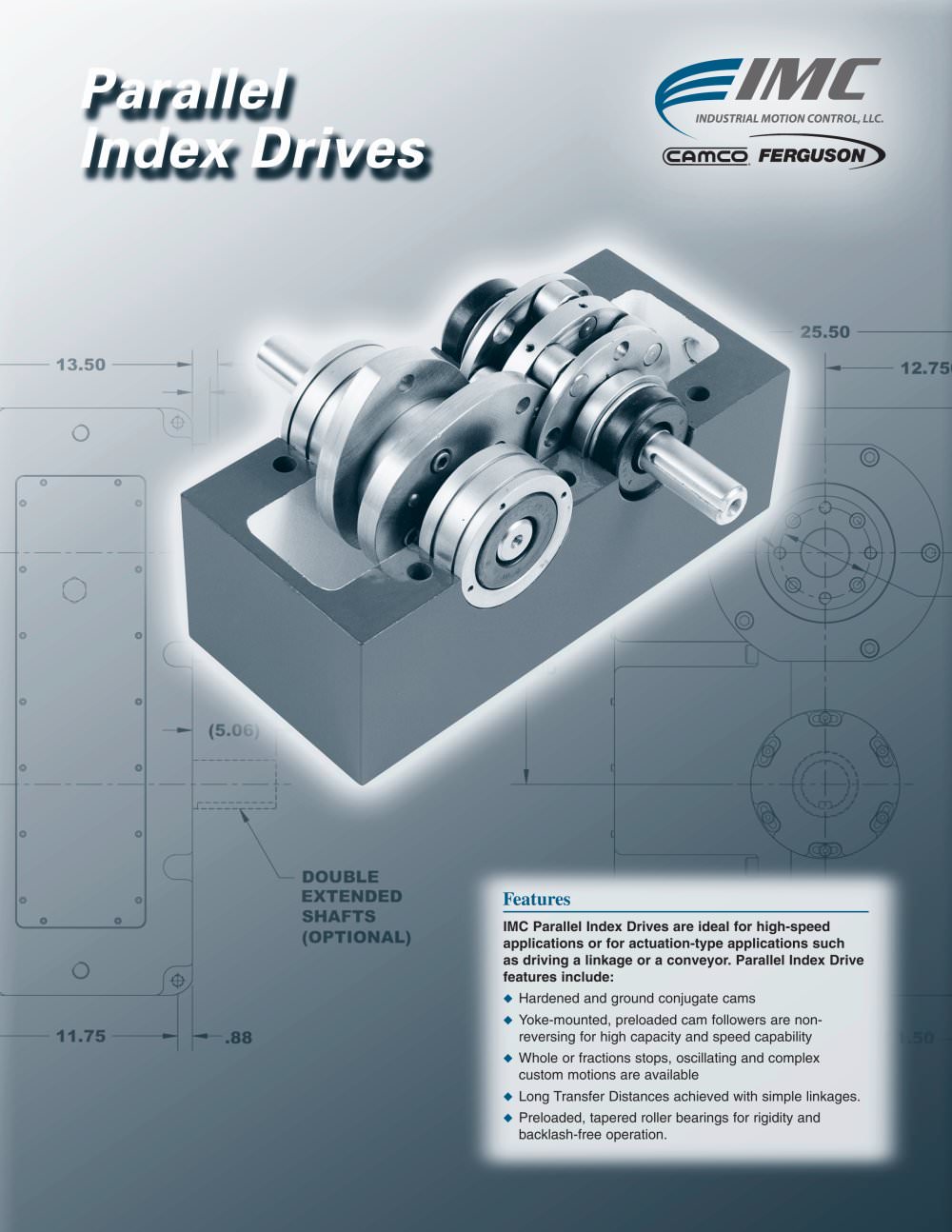

Overview: IMC Parallel Index Drives are engineered for high-speed applications such as driving linkages or conveyors. They feature durable components like hardened cams and preloaded bearings for precise, backlash-free operation. These drives support various motion types, including whole or fractional stops and complex custom motions.
Technical Specifications: The document details specifications for models 250P, 387P, 512P, 662P, 900P, and 1200P. Each model has distinct load capacities, accuracy, and repeatability. For instance, the 250P model supports a radial load of 316 lbs and offers accuracy of ±77 arcsec.
Standard Packages and Options: Standard packages include a motor, control, and cycle cam. Options feature electric and air clutch-brakes, oscillating motion, and various reducers. Overload clutch models are available with specific torque settings.
Accessories and Customization: Accessories include electric and air clutch-brakes and dual cycle cams. Customization options are available, and customers are encouraged to contact IMC for more details.
Contact Information: Customers can reach Industrial Motion Control, L.L.C. for further details or to request drawings via their website or phone.
Specifications: Additional models like 1200P, P325, and P500 are detailed, each with specific load capacities and motor configurations. For example, the P500 model has a radial load capacity of 1,367 lbs.
Standard Packages: Each model includes a motor and control system. The P325 model, for example, comes with a 1/2 hp DC motor.
Accessories and Options: Various accessories and options are available, such as output overload clutches and different mounting configurations, allowing for application-specific customization.
Technical Drawings: Technical drawings with dimensions are included, with a note that dimensions may change, advising to request current drawings.
Ordering Procedures: Instructions for ordering include specifying assemblies, model ratios, and mounting positions.
Key Data from Tables: Tables provide data on index motion periods and capacities. For example, the P500 model with 8 stops has an index motion period of 180 ms.
See more

Catalog excerpts

CAMCO Parallel Index Drives (E)-7

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:14.00pt "Arial Black", sans-serif; } .font3 { font:12.00pt "Times New Roman", serif; } .font4 { font:18.00pt "Times New Roman", serif; } (cftmco Parallel Index Drives Standard Package 512P Indexer with ♦ Single Input Shaft and Single Output Shaft ♦ 1 hp DC motor ♦ Output horizontal even with input Mounting ♦ Varipak DC Motor Control (up to 30 cpm) ♦ R225 Reducer (ratios from 5:1 to 60:1) ♦ Single Cycle Cam and Limit Switch - 56C Motor Adapter...

 Open the catalog to page 7
CAMCO Parallel Index Drives (E)-17

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:14.00pt "Arial Black", sans-serif; } .font3 { font:12.00pt "Times New Roman", serif; } Parallel Index Drives Standard Package P500 Indexer with ♦ Single Input Shaft and Single Output Shaft ♦ 1 hp DC motor ♦ Output horizontal even with input Mounting ♦ Varipak DC Motor Control (up to 30 cpm) ♦ 6SFM Reducer (ratios from 5:1 to 60:1) ♦ Single Cycle Cam and Limit Switch - 56C Motor Adapter and Coupling Accessories and Options_ ♦ 1 or 1.5 hp AC Drive...

 Open the catalog to page 17
CAMCO Parallel Index Drives (E)-18

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial", sans-serif; } .font6 { font:4.50pt "Arial Black", sans-serif; } .font7 { font:8.80pt "Arial Black", sans-serif; } .font8 { font:11.00pt "Arial Black", sans-serif; } .font9 { font:14.00pt "Arial Black", sans-serif; } .font10 { font:17.00pt "Arial Black", sans-serif; } .font11 { font:18.00pt "Times...

 Open the catalog to page 18
