SMA80 semi-automatic case packer

Product catalog summary
Machine Catalogue: SMA 80 Semi-automatic Case-packer
Technical Specifications:
  • Mechanical Speed: Maximum of 6 strokes per minute.
  • Power Absorption: 1.2 KW.
  • Air Consumption: 500 Nl per minute.
  • Air Pressure: 5 to 6 bar.
  • Gross Weight: Approximately 950 kg.
  • Net Weight: Approximately 650 kg.
Size Range:
  • A: Minimum 20, Maximum 555.
  • B: Minimum 12, Maximum 70.
  • C: Minimum 50, Maximum 340.
  • di: Minimum 185, Maximum 560.
  • ei: Minimum 115, Maximum 395.
  • fi: Minimum 92, Maximum 342.
Additional Notes: The technical data provided are not binding and may change without prior notice. This document replaces any previous editions and revisions.
See more

Catalog excerpts

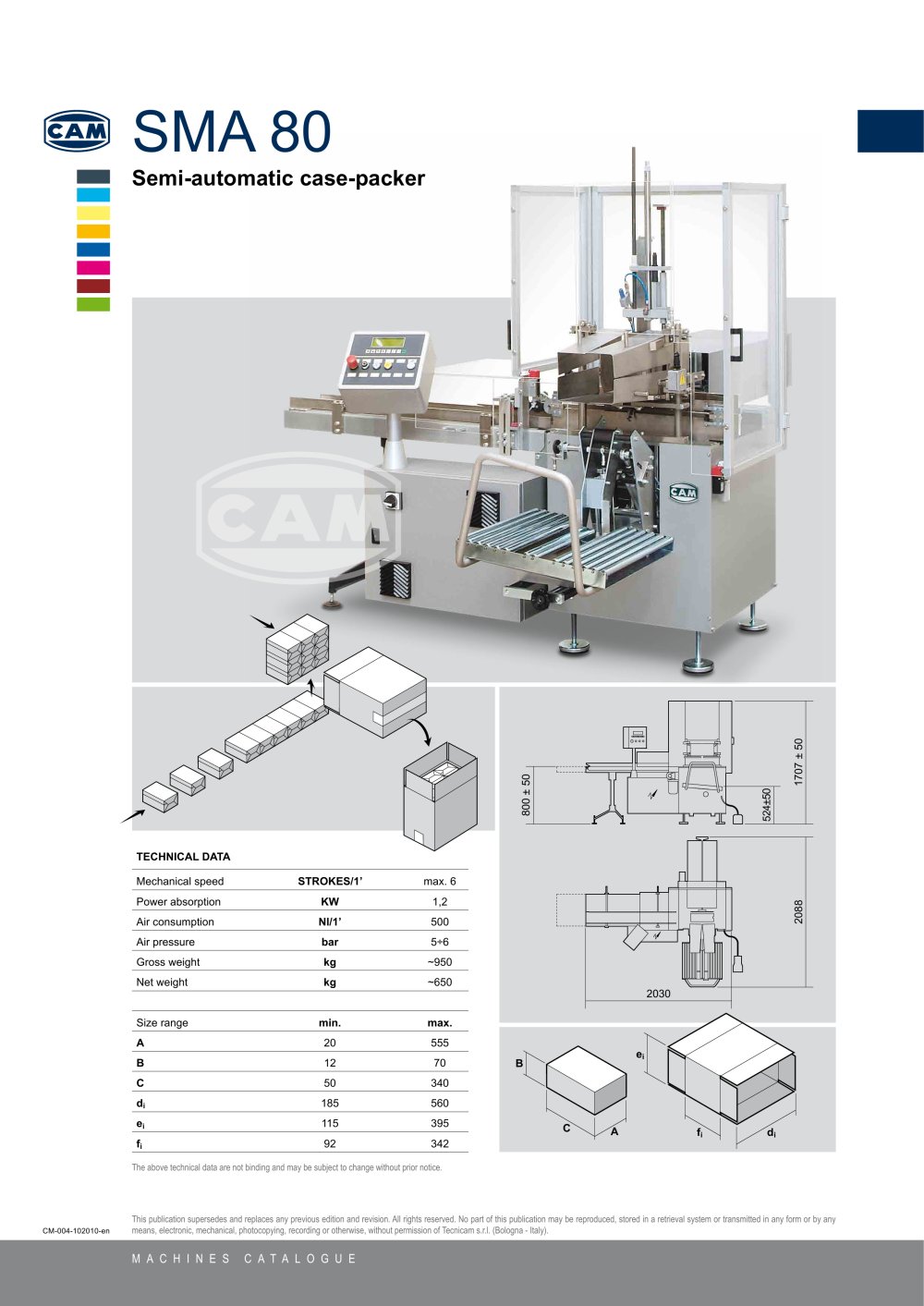

SMA80 semi-automatic case packer-1

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:35.00pt "Arial", sans-serif; } CAM SMA 80 Semi-automatic case-packer TECHNICAL DATA Mechanical speed STROKES/1' max. 6 Power absorption KW 1,2 Air consumption Nl/1' 500 Air pressure bar 5-6 Gross weight kg ~950 Net weight kg ~650 Size range min. max. A 20 555 B 12 70 C 50 340 di 185 560 ei 115 395 fi 92 342 The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any CM-004-102010-en means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). MACHINES CATALOGUE

 Open the catalog to page 1
