PMX intermittent motion horizontal cartoner
PMX intermittent motion horizontal cartoner
- Mechanical Speed: PMX 1 operates at 25 to 150 strokes per minute, while PMX 2 operates at 25 to 110 strokes per minute.
- Motors: Both models are equipped with 1.12 KW motors.
- Power Absorption: Each model absorbs 2.05 KW, with an additional 3.9 KW for hot-melt operations.
- Air Consumption: 16.9 Nl per minute for both models.
- Air Pressure: Operates between 5 to 6 bar.
- Weight: Gross weight is approximately 1400 kg, and net weight is approximately 1200 kg for both models.
- PMX 1: A: 15-80 mm, B: 12-75 mm, C: 65-200 mm, A + B: up to 140 mm.
- PMX 2: A: 20-125 mm, B: 15-75 mm, C: 65-200 mm, A + B: up to 170 mm.
- The technical data provided are subject to change without prior notice.
- All rights reserved by Tecnicam s.r.l., and reproduction of this document is prohibited without permission.
Catalog excerpts

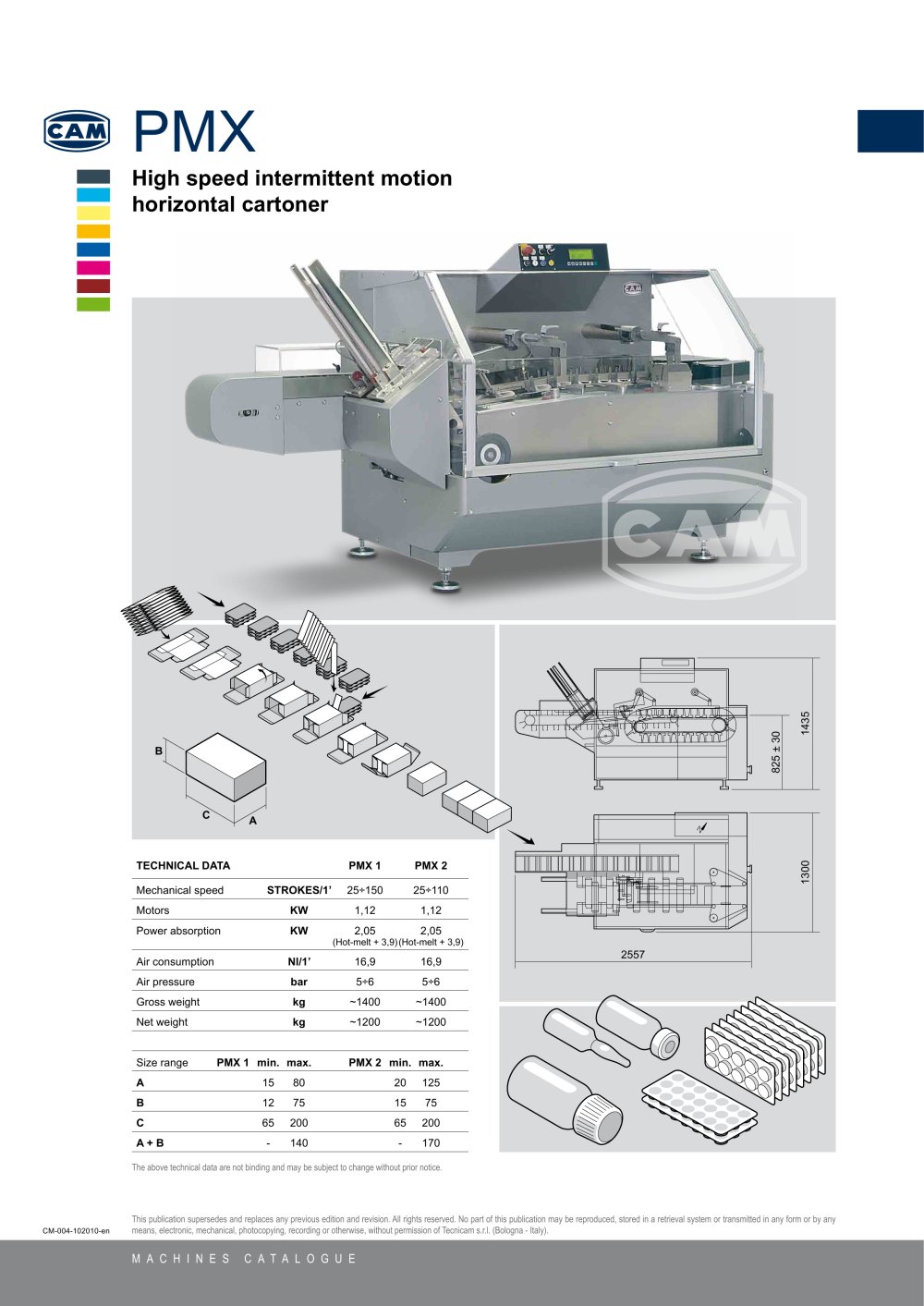

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:35.00pt "Arial", sans-serif; } .font4 { font:14.00pt "Palatino Linotype", serif; } CAM PMX High speed intermittent motion horizontal cartoner TECHNICAL DATA PMX 1 PMX 2 Mechanical speed STROKES/1' 25-150 25-110 Motors KW 1,12 1,12 Power absorption KW 2,05 (Hot-melt + 3 2,05 9) (Hot-melt + 3,9) Air consumption Nl/1' 16,9 16,9 Air pressure bar 5-6 5-6 Gross weight kg ~1400 ~1400 Net weight kg ~1200 ~1200 Size range PMX 1 min. max. PMX 2 min. max. A 15 80 20 125 B 12 75 15 75 C 65 200 65 200 A + B - 140 - 170 The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any CM-004-102010-en means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). MACHINES CATALOGUE
