NTW600 intermittent motion wrap-around case packer

NTW600 intermittent motion wrap-around case packer
1 / 1 PageView full catalog

NTW600 intermittent motion wrap-around case packer

Product catalog summary
Machine Catalogue: NTW 600
Overview: The NTW 600 is an intermittent motion wrap-around case-packer designed for efficient packaging operations.
Technical Specifications:
  • Mechanical Speed: 25 strokes per minute
  • Power Absorption: Maximum of 8 KW
  • Air Consumption: 22 Nl per minute
  • Air Pressure: 6 bar
  • Gross Weight: Approximately 2000 kg
  • Net Weight: Approximately 1800 kg
Size Range:
  • Dimension A: 100 to 360 mm
  • Dimension B: 70 to 360 mm
  • Dimension C: 190 to 500 mm
  • Dimension H: 40 to 360 mm
Notes: The technical data provided are subject to change without prior notice. This document supersedes any previous editions. Reproduction or transmission of this publication is prohibited without permission from Tecnicam s.r.l.
See more

Catalog excerpts

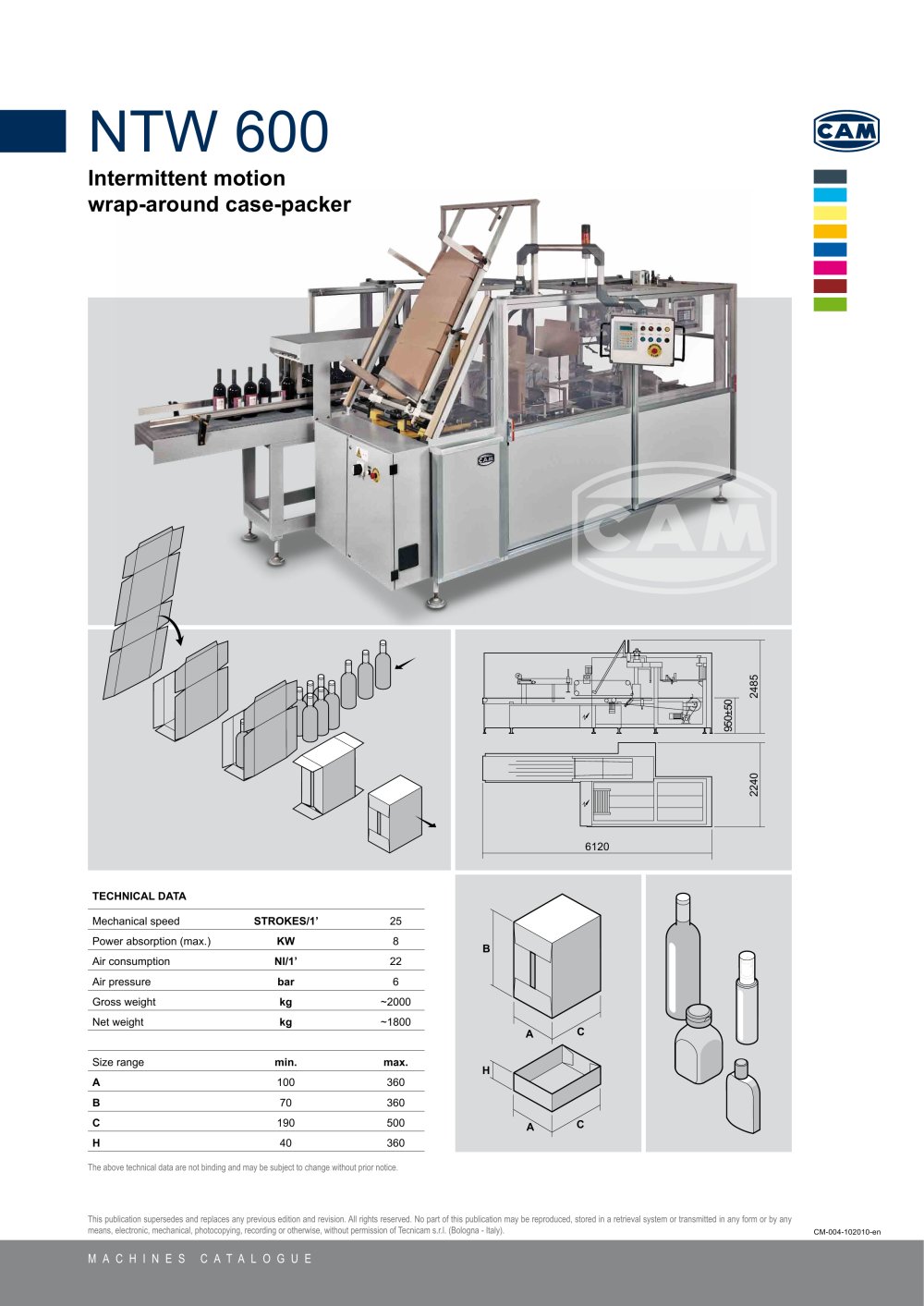

NTW600 intermittent motion wrap-around case packer-1

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:35.00pt "Arial", sans-serif; } .font4 { font:17.00pt "Courier New", monospace; } NTW 600 Intermittent motion wrap-around case-packer CAM TECHNICAL DATA Mechanical speed STROKES/1' 25 Power absorption (max.) KW 8 Air consumption Nl/1' 22 Air pressure bar 6 Gross weight kg ~2000 Net weight kg ~1800 B Size range min. max. A 100 360 B 70 360 C 190 500 H 40 360 H The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). CM-004-102010-en MACHINES CATALOGUE

 Open the catalog to page 1
