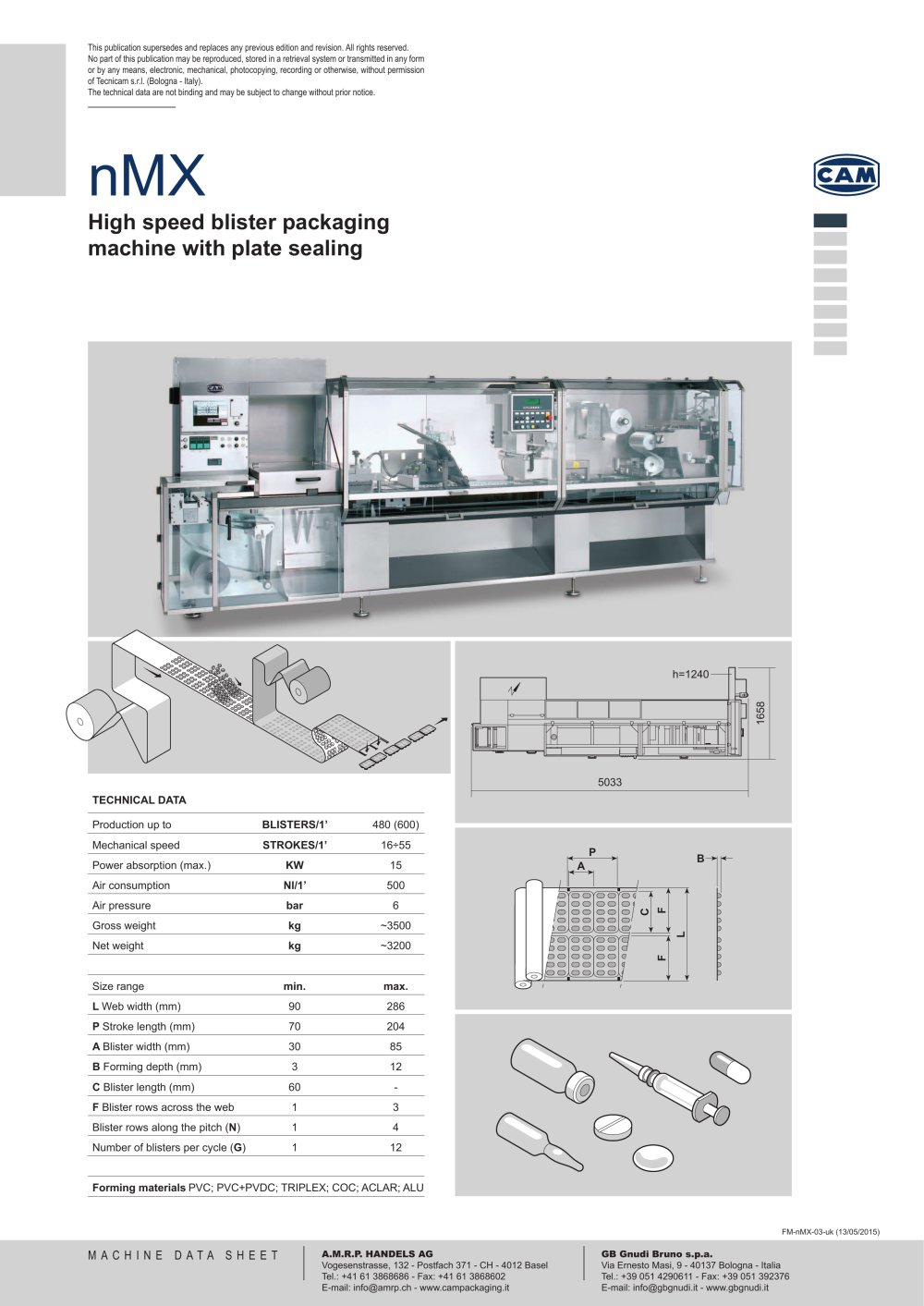

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:35.00pt "Arial", sans-serif; } ® nMX M Automatic high speed blister packing machine with plate sealing TECHNICAL DATA Production up to BLISTERS/1' 480 (600) Mechanical speed STROKES/1' 16-55 Power absorption (max.) KW 15 Air consumption Nl/1' 500 Air pressure bar 6 Gross weight kg ~3500 Net weight kg ~3200 Size range min. max. L Web width (mm) 90 286 P Stroke length (mm) 70 204 A Blister width (mm) 30 85 B Forming depth (mm) 3 12 C Blister length (mm) 60 - F Blister rows across the web 1 3 Blister rows along the pitch (N) 1 4 Number of blisters per cycle (G) 1 12 Forming materials PVC; PVC+PVDC; TRIPLEX; COC; ACLAR; ALU The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any CM-004-102010-en means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). machines catalogue
