MK automatic blister packing machine
MK automatic blister packing machine
- Production Capacity: Up to 480 (600) blisters per minute.
- Mechanical Speed: 16 to 60 strokes per minute.
- Power Consumption: MK28 uses 21 KW, while MK33 uses 23 KW.
- Air Consumption: MK28 requires 500 Nl/min, and MK33 requires 650 Nl/min.
- Air Pressure: Both models operate at 6 bar.
- Net Weight: Approximately 4500 kg for MK28 and 5000 kg for MK33.
- Web Width: MK28 ranges from 90 to 286 mm, MK33 from 90 to 333 mm.
- Stroke Length: MK28 ranges from 70 to 180 (204) mm, MK33 from 70 to 220 mm.
- Blister Width: Both models range from 30 to 90 mm.
- Forming Depth: Both models range from 3 to 12 mm.
- Blister Length: Fixed at 60 mm for both models.
- Blister Rows Across the Web: 1 to 3 rows for both models.
- Blister Rows Along the Pitch: 1 to 4 rows for both models.
- Number of Blisters per Cycle: 1 to 12 blisters for both models.
Catalog excerpts

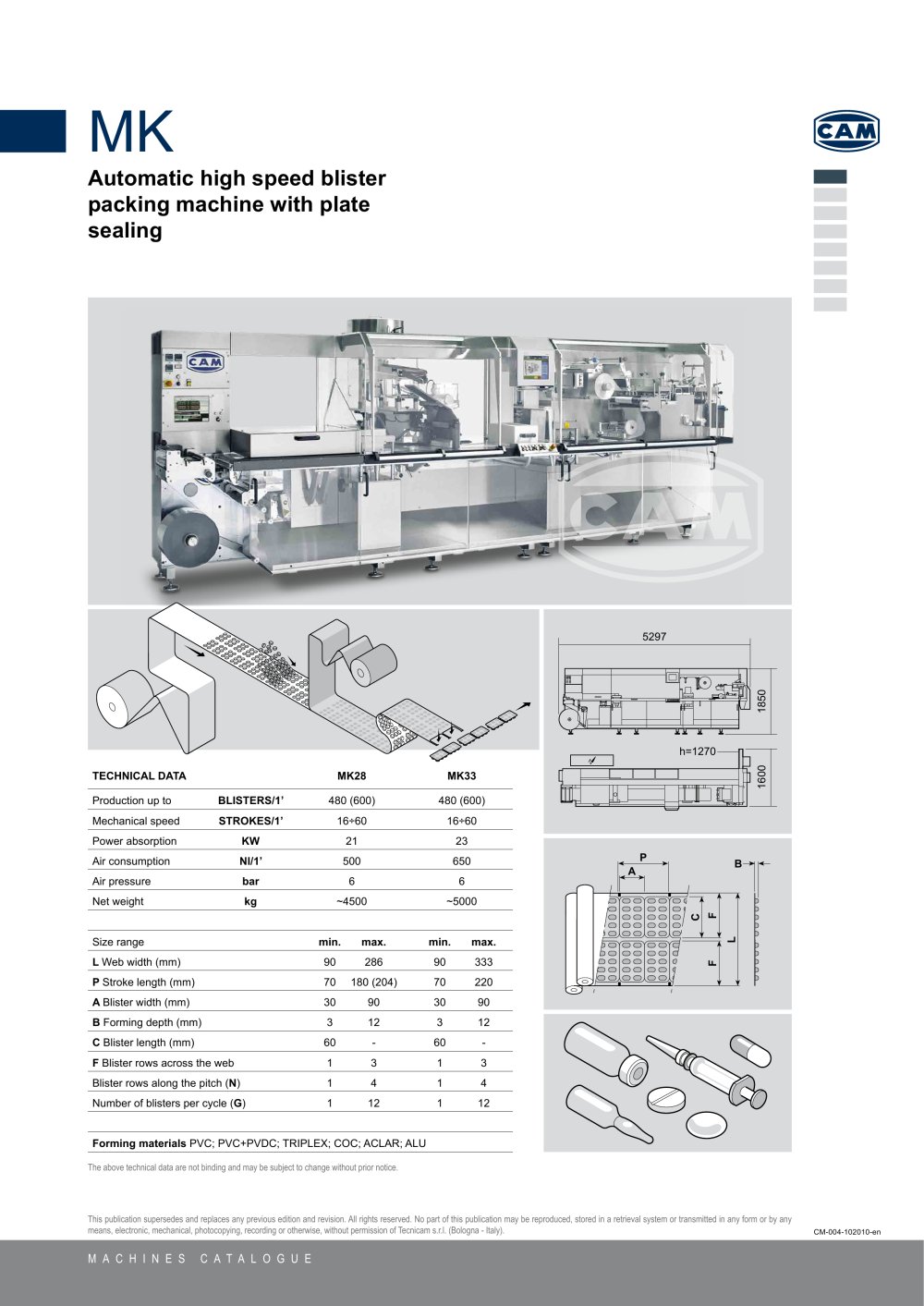

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:39.00pt "Arial", sans-serif; } .font5 { font:7.00pt "Lucida Sans Unicode", sans-serif; } MK Automatic high speed blister packing machine with plate sealing TECHNICAL DATA MK28 MK33 Production up to BLISTERS/1' 480 (600) 480 (600) Mechanical speed STROKES/1' 16-60 16-60 Power absorption KW 21 23 Air consumption Nl/1' 500 650 Air pressure bar 6 6 Net weight kg ~4500 ~5000 Size range min. max. min. max. L Web width (mm) 90 286 90 333 P Stroke length (mm) 70 180 (204) 70 220 A Blister width (mm) 30 90 30 90 B Forming depth (mm) 3 12 3 12 C Blister length (mm) 60 - 60 - F Blister rows across the web 1 3 1 3 Blister rows along the pitch (N) 1 4 1 4 Number of blisters per cycle (G) 1 12 1 12 Forming materials PVC; PVC+PVDC; TRIPLEX; COC; ACLAR; ALU The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). CM-004-102010-en MACHINES CATALOGUE
