L60 continuous motion liquid filling/capping monobloc
L60 continuous motion liquid filling/capping monobloc
- Mechanical Speed: 300 strokes per minute
- Power Absorption: Maximum of 3.5 KW
- Air Consumption: 0 to 20 Nl per minute
- Air Pressure: 5 to 6 bar
- Gross Weight: Approximately 1950 kg
- Net Weight: Approximately 1400 kg
- Dimension A: 20 to 50
- Dimension B: 15 to 70
- Diameter Ø: 15 to 70
- Dimension C: 35 to 180
The document describes a continuous motion liquid filling and capping monobloc machine, model L60. The machine is designed for high-speed operations with a mechanical speed of 300 strokes per minute. It operates with a power absorption of up to 3.5 KW and requires an air pressure of 5 to 6 bar. The machine's weight is approximately 1950 kg gross and 1400 kg net.
The technical data provided are subject to change without prior notice. The document emphasizes that no part of the publication may be reproduced without permission from Tecnicam s.r.l.
Catalog excerpts

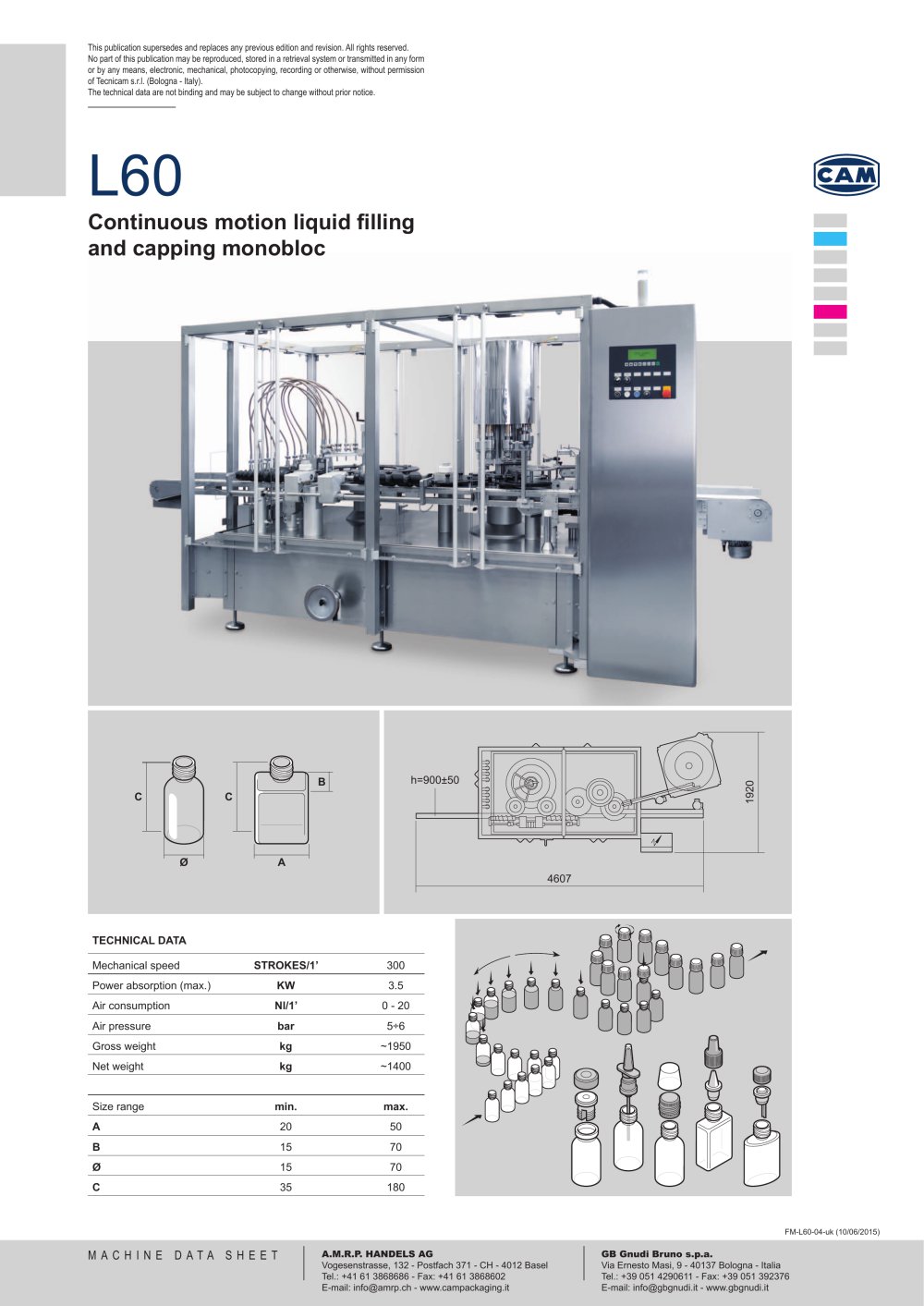

This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). The technical data are not binding and may be subject to change without prior notice. Continuous motion liquid filling and capping monobloc TECHNICAL DATA Mechanical speed Gross weight Size range MACHINE DATA SHEET A.M.R.P. HANDELS AG Vogesenstrasse, 132 - Postfach 371 - CH - 4012 Basel Tel.: +41 61 3868686 - Fax: +41 61 3868602 E-mail: [email protected] - www.campackaging.it GB Gnudi Bruno s.p.a. Via Ernesto Masi, 9 - 40137 Bologna - Italia Tel.: +39 051 4290611 - Fax: +39 051 392376 E-mail: [email protected] - www.gbgnu
