L112/L212 continuous motion liquid filling/capping monobloc
1Pages

{{requestButtons}}

Catalog excerpts

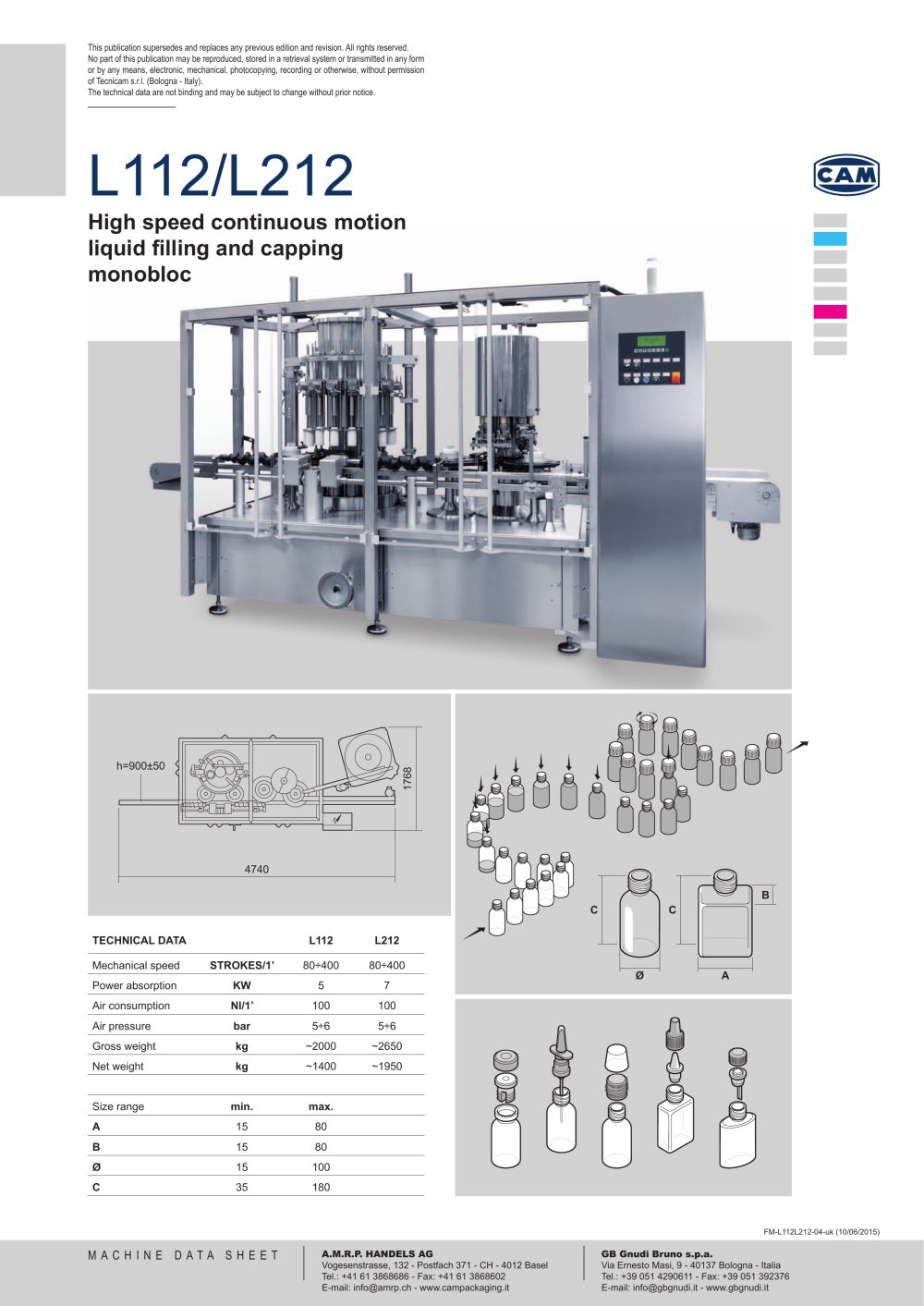

L112/L212 continuous motion liquid filling/capping monobloc - 1

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:32.00pt "Arial", sans-serif; } .font4 { font:4.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font6 { font:13.00pt "Lucida Sans Unicode", sans-serif; } ICAMl L112/L212 Continuous motion liquid filling and capping monobloc TECHNICAL DATA L112 L212 Mechanical speed STROKES/1' 80-400 80-400 Power absorption KW 5 7 Air consumption Nl/1' 100 100 Air pressure bar 5-6 5-6 Gross weight kg ~2000 ~2650 Net weight kg ~1400 ~1950 Size range min. max. A 15 80 B 15 80 0 15 800 C 35 180 The above technical data are not binding and may be subject to change without prior notice. This pubication supersedes and repaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any CM-004-102010-en means, electronic, mechanica, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). MACHINES CATALOGUE

Open the catalog to page 1
