KO continuous motion horizontal cartoner

KO continuous motion horizontal cartoner
1 / 1 PageView full catalog

KO continuous motion horizontal cartoner

Product catalog summary
Machine Catalogue Overview: The document is a technical catalogue for the K0 high-speed continuous motion horizontal cartoner, produced by Tecnicam s.r.l. It replaces any previous editions and revisions.
Technical Specifications:
  • Mechanical Speed: Maximum of 800 strokes per minute.
  • Motors: 4.25 KW.
  • Power Absorption: 5.18 KW (including Hot-melt + 3.9).
  • Air Consumption: 16.9 Nl per minute.
  • Air Pressure: 5 to 6 bar.
  • Gross Weight: Approximately 3100 kg.
  • Net Weight: Approximately 2900 kg.
Size Range:
  • Dimension A: 35 to 65 mm.
  • Dimension B: 14 to 50 mm.
  • Dimension C: 65 to 130 mm.
  • Combined A+B: 47 to 115 mm.
Additional Notes: The technical data provided are not binding and may change without prior notice. Reproduction or transmission of this document is prohibited without permission from Tecnicam s.r.l.
See more

Catalog excerpts

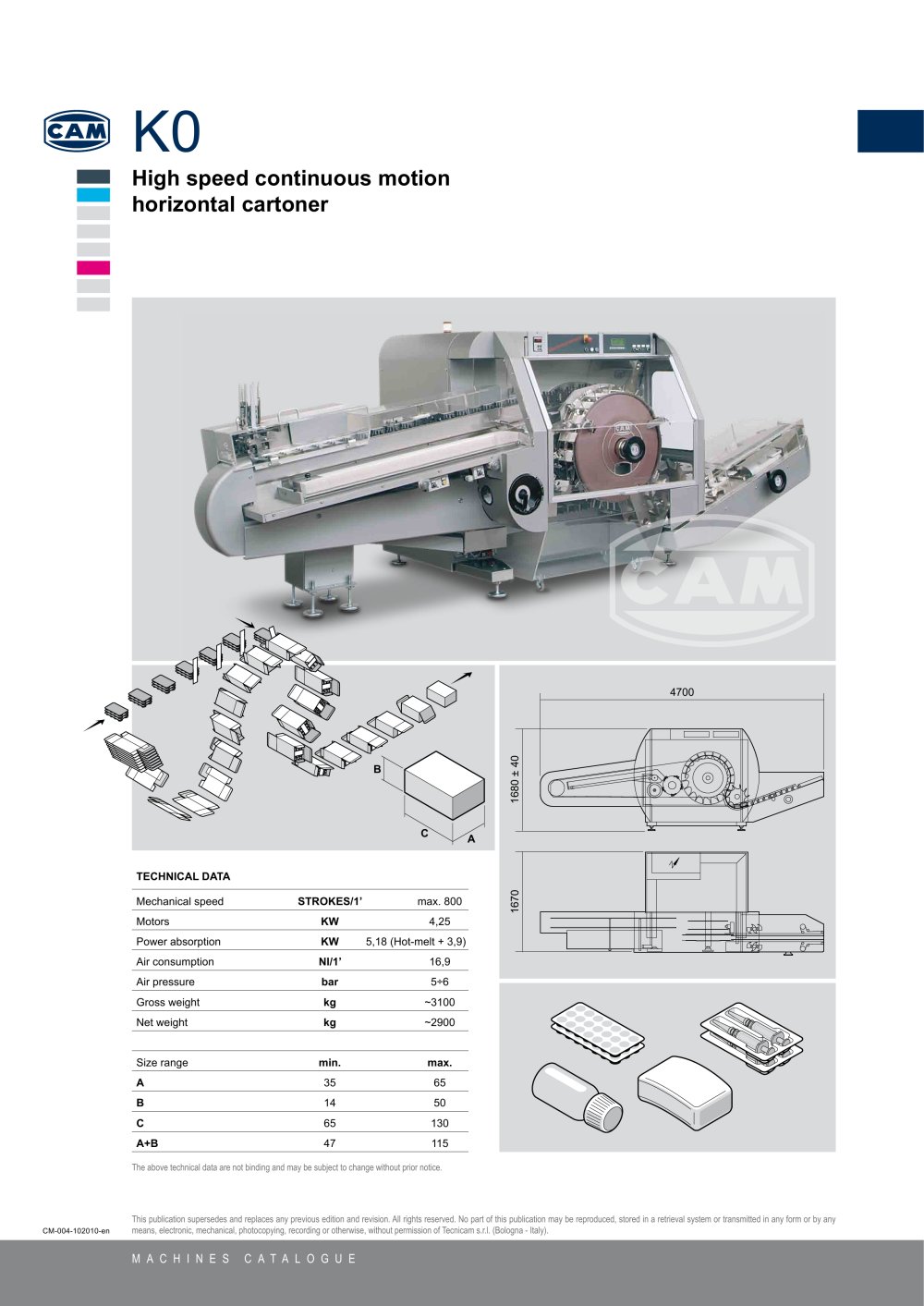

KO continuous motion horizontal cartoner-1

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:31.00pt "Arial", sans-serif; } CAM KO High speed continuous motion horizontal cartoner Air consumption Nl/1' 16,9 Air pressure bar 5-6 Gross weight kg ~3100 Net weight kg ~2900 Size range min. max. A 35 65 B 14 50 C 65 130 A+B 47 115 The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any CM-004-102010-en means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). MACHINES CATALOGUE

 Open the catalog to page 1
