HV continuous motion horizontal cartoner
HV continuous motion horizontal cartoner
- Mechanical Speed: HV 1 has a maximum speed of 400 strokes per minute, while HV 2 has a maximum speed of 260 strokes per minute.
- Motors: Both models are equipped with motors rated at 4.25 KW.
- Power Absorption: The power absorption for both models is 5.20 KW, with an additional 3.9 KW for hot-melt operations.
- Air Consumption: Both models consume 16.9 Nl per minute of air.
- Air Pressure: The required air pressure ranges from 5 to 6 bar.
- Weight: The gross weight of each model is approximately 3000 kg, with a net weight of approximately 2500 kg.
- HV 1: Dimensions range from A: 20-95 mm, B: 12-70 mm, C: 70-230 mm, with a combined A + B maximum of 165 mm.
- HV 2: Dimensions range from A: 20-160 mm, B: 12-70 mm, C: 70-230 mm, with a combined A + B maximum of 200 mm.
Catalog excerpts

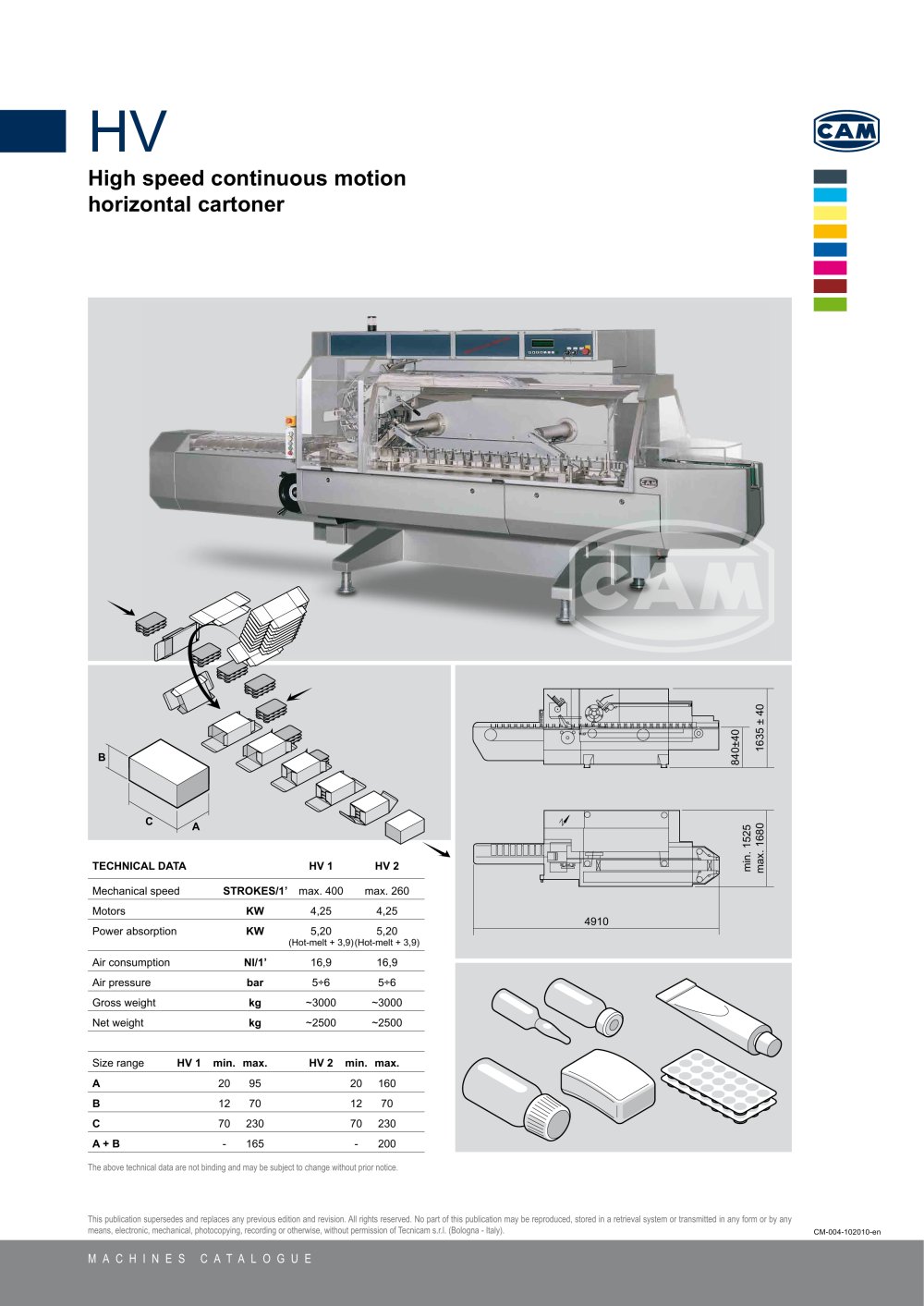

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:31.00pt "Arial", sans-serif; } HV CAM High speed continuous motion horizontal cartoner TECHNICAL DATA HV 1 HV 2 Mechanical speed STROKES/1' max. 400 max. 260 Motors KW 4,25 4,25 Power absorption KW 5,20 5,20 (Hot-melt + 3,9) (Hot-melt + 3,9) Air consumption Nl/1' 16,9 16,9 Air pressure bar 5-6 Gross weight kg ~3000 ~3000 Net weight kg ~2500 ~2500 Size range HV 1 min. max. HV 2 min. max. A 20 95 20 160 B 12 70 12 70 C 70 230 70 230 A + B - 165 - 200 The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). CM-004-102010-en MACHINES CATALOGUE
