AVC continuous motion vertical cartoner
AVC continuous motion vertical cartoner
- Mechanical Speed: AVC 1 has a maximum of 300 strokes per minute, while AVC 2 has a maximum of 200 strokes per minute.
- Motors: Both models are equipped with 2.76 KW motors.
- Power Absorption: Each model absorbs 3.8 KW, with an additional 3.9 KW for hot-melt operations.
- Air Consumption: 16.9 Nl per minute for both models.
- Air Pressure: Operates between 5 to 6 bar.
- Weight: Gross weight is approximately 2400 kg, and net weight is approximately 2000 kg for both models.
- AVC 1: A: 30-65, B: 30-80, C: 55-250, A+B: up to 190.
- AVC 2: A: 35-115, B: 30-100, C: 55-250, A+B: up to 190.
The AVC series is a high-speed continuous motion vertical cartoner designed for efficient packaging operations.
Catalog excerpts

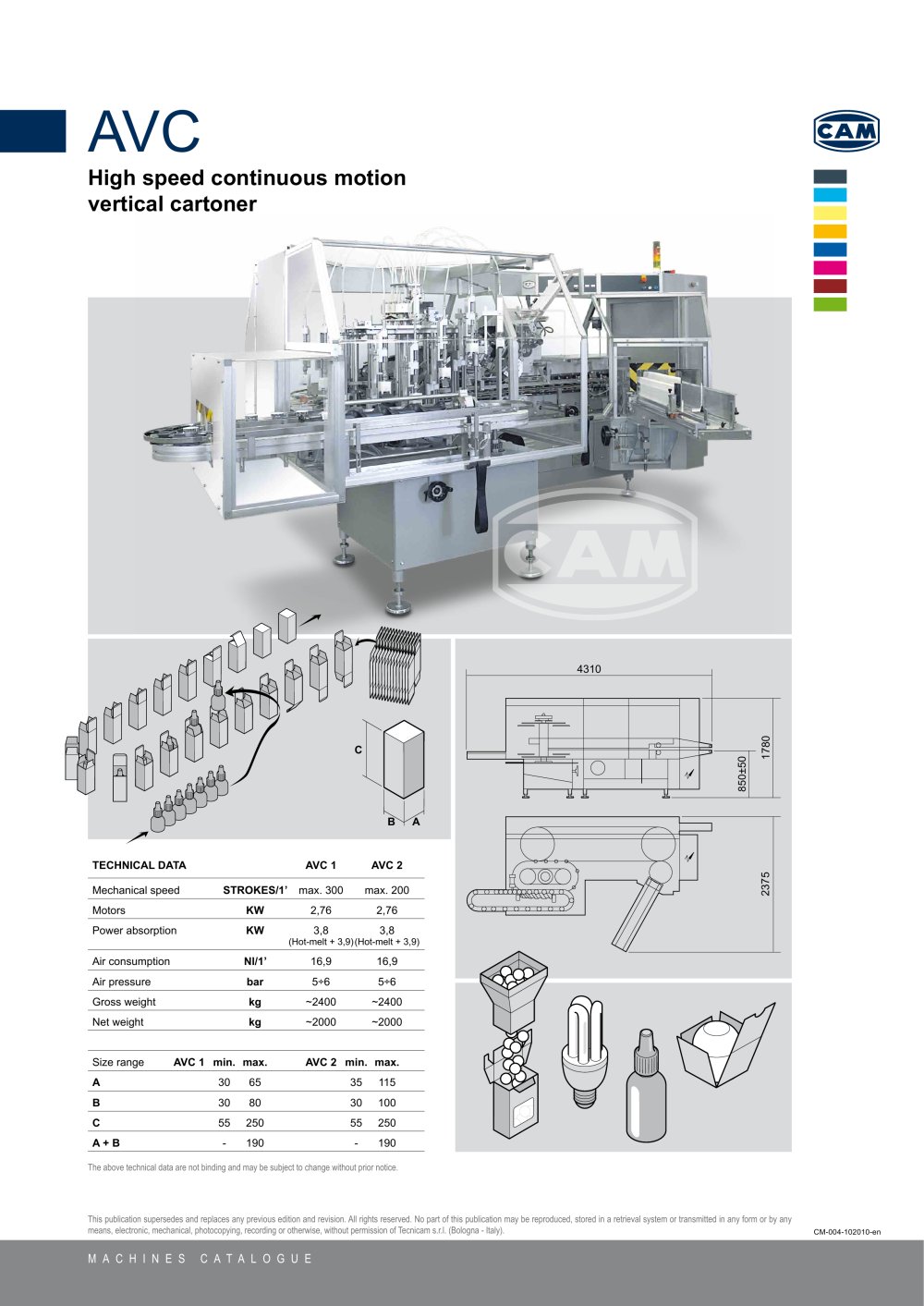

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:34.00pt "Arial", sans-serif; } .font5 { font:4.00pt "Lucida Sans Unicode", sans-serif; } AVC High speed continuous motion vertical cartoner i 7* TECHNICAL DATA AVC 1 AVC 2 Mechanical speed STROKES/1' max. 300 max. 200 Motors KW 2,76 2,76 Power absorption KW 3,8 3,8 (Hot-melt + 3,9) (Hot-melt + 3,9) Air consumption Nl/1' 16,9 16,9 Air pressure bar 5-6 5-6 Gross weight kg ~2400 ~2400 Net weight kg ~2000 ~2000 Size range AVC 1 min. max. AVC 2 min. max. A 30 65 35 115 B 30 80 30 100 C 55 250 55 250 A + B - 190 - 190 The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). CM-004-102010-en MACHINES CATALOGU
