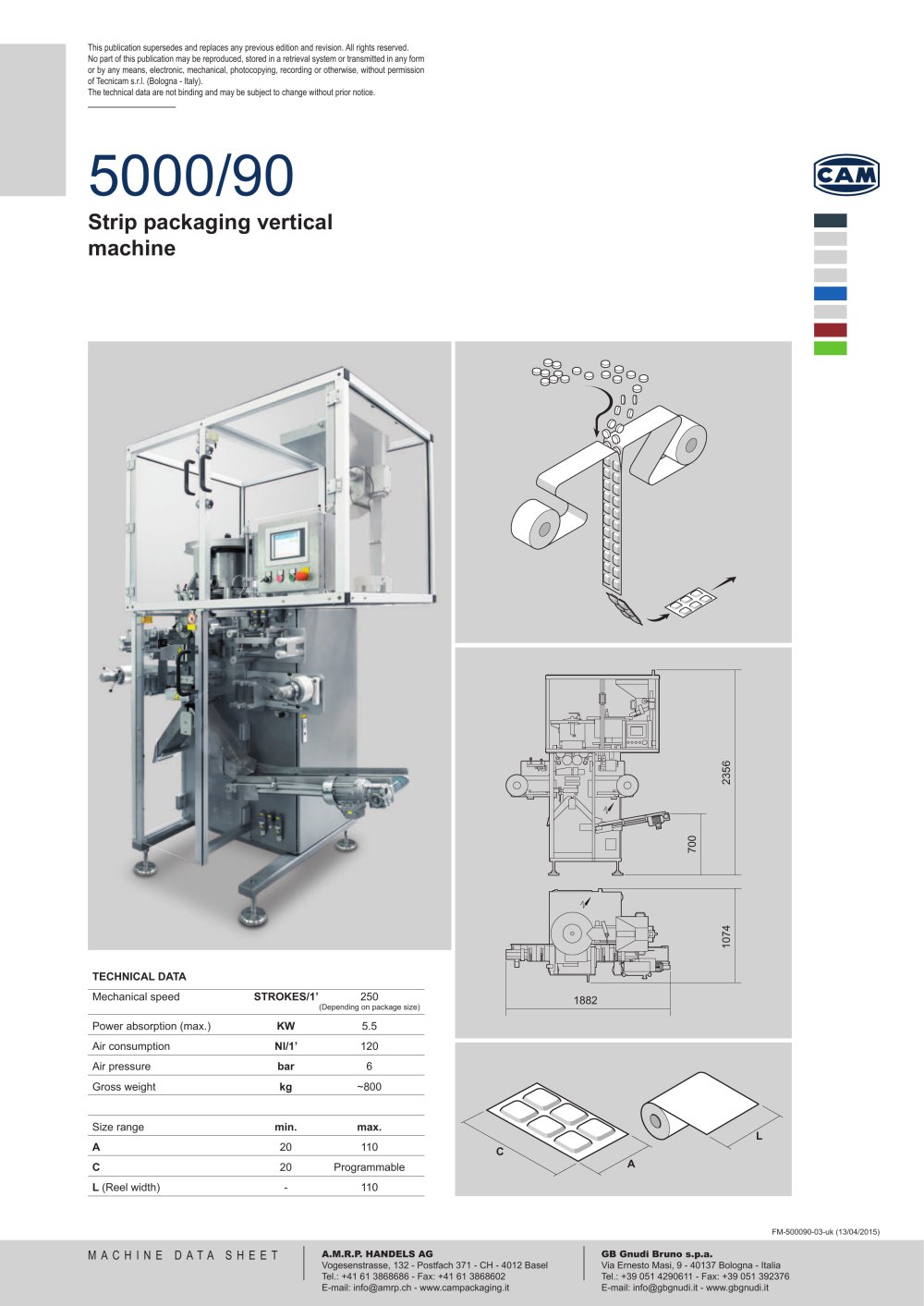

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:34.00pt "Arial", sans-serif; } 5000/90 Vertical strip packaging machine ICAMl Mechanical speed STROKES/1' 250 (Depending on package size) Power absorption (max.) KW 5,5 Air consumption Nl/1' 120 Air pressure bar 6 Gross weight kg ~800 Size range min. max. A 20 110 C 20 Programmable L (Reel width) - 110 The above technical data are not binding and may be subject to change without prior notice. This pubication supersedes and replaces any previous edition and revision. Al rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanica, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Boogna - Italy). CM-004-102010-en MACHINES CATALOGUE
