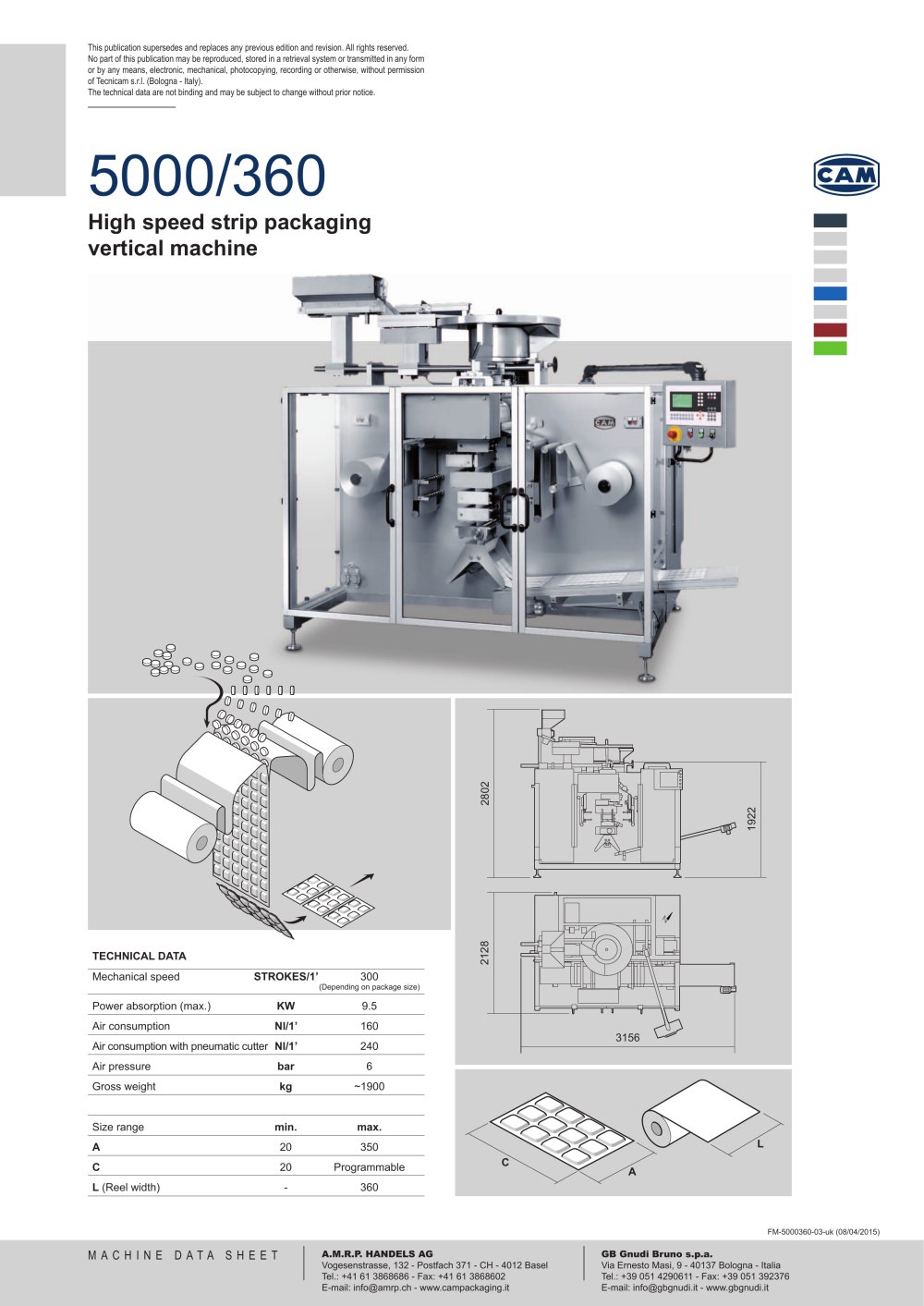

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:35.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial Black", sans-serif; } .font5 { font:34.00pt "Microsoft Sans Serif", sans-serif; } CAM 9 5000/360 H High speed vertical strip packaging machine TECHNICAL DATA Mechanical speed STROKES/1' 300 (Depending on package size) Power absorption (max.) KW 9,5 Air consumption Nl/1' 160 Air consumption with pneumatic cutter Nl/1' 240 Air pressure bar 6 Gross weight kg ~1900 Size range min. max. A 20 360 C 20 Programmable L (Reel width) - 360 The above technical data are not binding and may be subject to change without prior notice. This publication supersedes and replaces any previous edition and revision. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any CM-004-102010-en means, electronic, mechanical, photocopying, recording or otherwise, without permission of Tecnicam s.r.l. (Bologna - Italy). MACHINES CATALOGUE
Open the catalog to page 1
