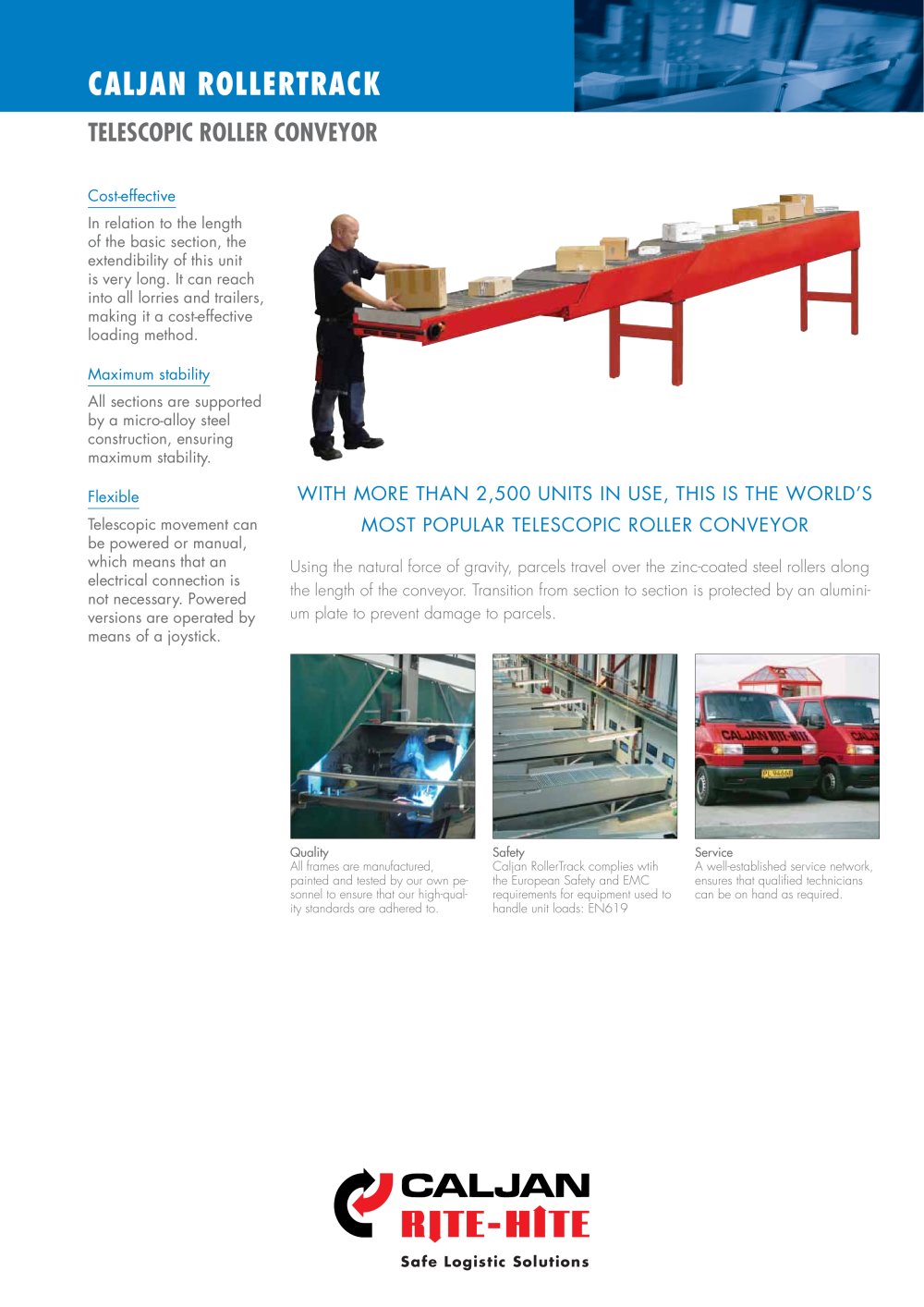

Overview
The Caljan RollerTrack is a cost-effective and flexible telescopic roller conveyor designed for efficient loading and unloading of lorries and trailers. It is renowned for its long extendibility and maximum stability, supported by a micro-alloy steel construction.

Key Features

• Cost-effective: The unit's extendibility allows it to reach into all lorries and trailers, optimizing loading operations.
• Stability: Constructed with micro-alloy steel for maximum stability.
• Flexibility: Offers both powered and manual telescopic movement, with powered versions operated via joystick.
• Popularity: Over 2,500 units in use globally, making it the most popular telescopic roller conveyor.

Technical Specifications

• Rollers: Zinc-coated steel with a diameter of 50 mm.
• Roller Width: Available in 600 mm, 800 mm, or 1000 mm.
• Load Capacity: Maximum 50 kg/m, uniformly distributed.
• Elevation: Maximum 5°, recommended 3 - 4°.
• Extension Range: From 5 m to 19 m.
• Optional Features: Includes double joystick, anti-collision strip, front light, and more.

Quality and Safety

• Quality Assurance: All frames are manufactured, painted, and tested by Caljan personnel to ensure high-quality standards.
• Safety Compliance: Complies with European Safety and EMC requirements (EN619).

Service and Support
A well-established service network ensures qualified technicians are available as needed.

Contact Information

• Denmark: Caljan Rite-Hite ApS, Aarhus
• Germany: Caljan Rite-Hite GmbH, Flörsheim
• UK: Caljan Rite-Hite Ltd, Nottingham
• France: Caljan Rite-Hite S.A.R.L., Fontenay-le-Fleury
• Benelux: Caljan Rite-Hite BV, Twello
• USA: Caljan Rite-Hite Inc., Denver

Design and Construction
The RollerTrack features a self-supporting steel frame with protected moving parts for safety. It includes ball bearings and roller chains for telescopic movement, with chains built into the profile for optimal safety. Machines with more than three sections are recommended to be electrically operated for enhanced safety.
