Selector Pre-Sorting Module

Product catalog summary

Overview: The document describes the Selector, a fully automatic module designed for 2-way sorting of non-conforming items. It is suitable for environments with items of varying shapes and sizes, such as airports, and can be integrated into existing or future systems.

Key Features:

Short ROI: The module offers a quick pay-back time by allowing non-standard items to be managed manually, ensuring continuous automatic sorting.
Capacity: The capacity is dependent on item size, with a maximum of 1,640 items per hour for items up to 600 mm in length.
Retrofit Capability: The Selector can be integrated into existing systems.

Design and Operation:

The Selector is controlled by the customer's system, which manages the belt and diverter through signals.
Photocell signals and end-stop signals are used for item and diverter position control.

Technical Specifications:

Total dimensions: 3,800 mm (length) x 1,880 mm (width) x 2,200 mm (height)
Belt dimensions: 3,000 mm (length) x 1,000 mm (width)
Belt speed: 0.78 m/s
Power supply: 400 V, 3 phases, 50 Hz
Divertor change time: 1.2 seconds
Total weight: Approx. 2,200 kg

Safety and Quality:

The module is designed to withstand harsh environments and complies with international safety regulations.
A protective cage prevents contact with moving parts.

Service and Support: A network of service engineers provides preventive maintenance to minimize downtime.

Contact Information: The document provides contact details for Caljan Rite-Hite offices in Denmark, Germany, UK, France, Benelux, and the USA.

Catalog excerpts

Service Our network of service engineers and allied companies are able to provide preemtive service, reducing the risk of faulty equipment and subsequent down-time. Safety The cage surrounding the Selector sorting modul prevents contact with moving parts. This module complies with international safety regulations pertaining to material handling equipment. Quality This heavy-duty module is designed to withstand the harsh environment often found in loading/unloading zones and airports. >

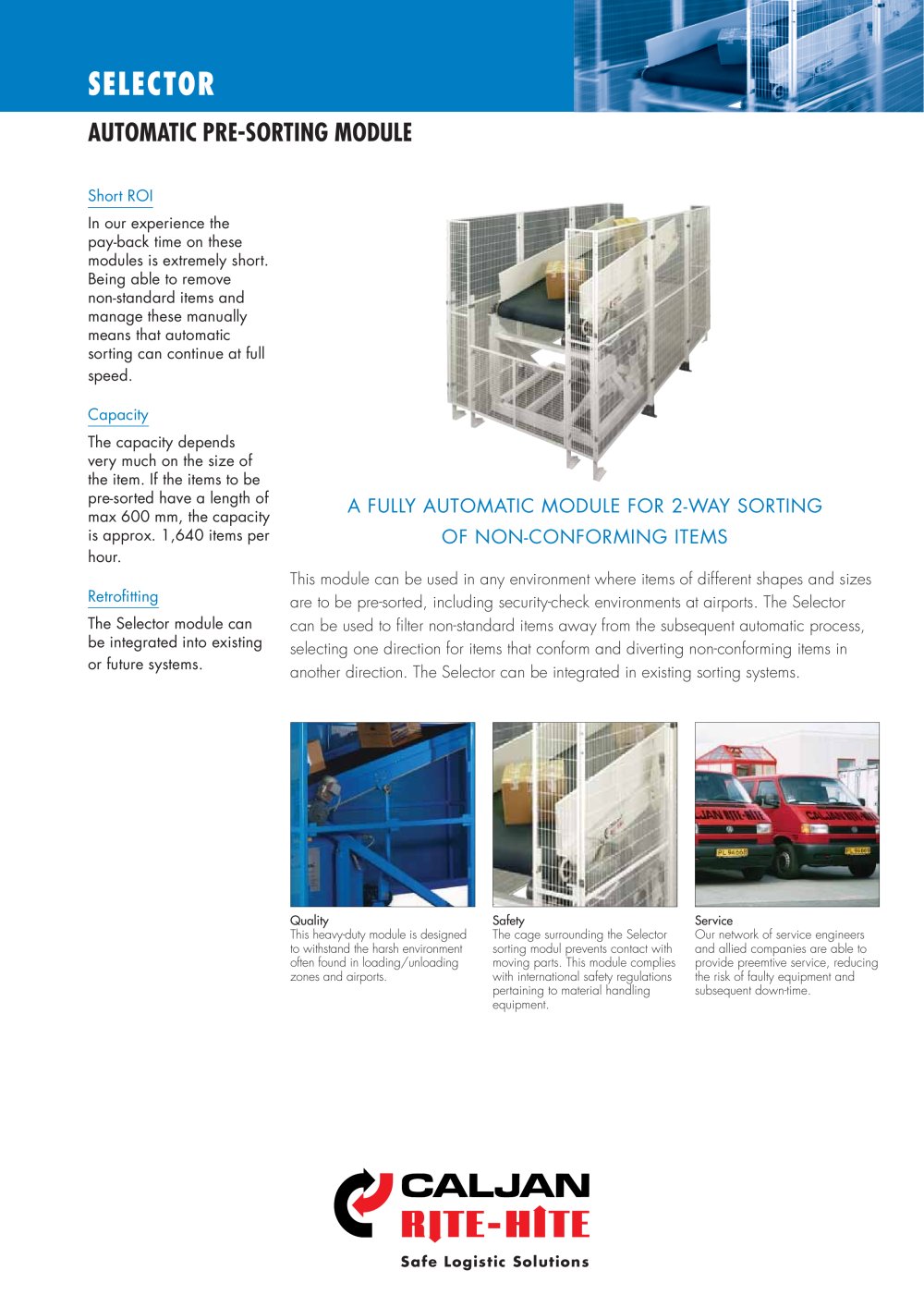

Open the catalog to page 1
