Power supplies
1 / 61 PagesView full catalog
Power supplies
Product catalog summary
Introduction
This document is a catalogue for electronic products designed for electrical panels, adhering to UNI EN-ISO 14001 and UNI EN-ISO 9001 standards. It emphasizes quality, reliability, and technological advancement, with a five-year warranty on products against manufacturing defects.
This document is a catalogue for electronic products designed for electrical panels, adhering to UNI EN-ISO 14001 and UNI EN-ISO 9001 standards. It emphasizes quality, reliability, and technological advancement, with a five-year warranty on products against manufacturing defects.
Quality and Environment
The catalogue highlights Cabur's commitment to quality and environmental sustainability, using FSC certified paper for printing. The company ensures responsible management of resources and adherence to international standards.
The catalogue highlights Cabur's commitment to quality and environmental sustainability, using FSC certified paper for printing. The company ensures responsible management of resources and adherence to international standards.
Product Range
The catalogue includes a wide range of products such as power supplies, surge protection devices, overcurrent protection devices, EMI filters, signal conditioners, relay modules, solid state relay modules, passive interface modules, and various accessories.
The catalogue includes a wide range of products such as power supplies, surge protection devices, overcurrent protection devices, EMI filters, signal conditioners, relay modules, solid state relay modules, passive interface modules, and various accessories.
Power Supplies
Various series of power supplies are detailed, including modular single-phase, single-phase with IP65 housing, and DC/DC switching converters. Each series is designed for specific applications, offering features like domotic power, cool power, and easy power.
Various series of power supplies are detailed, including modular single-phase, single-phase with IP65 housing, and DC/DC switching converters. Each series is designed for specific applications, offering features like domotic power, cool power, and easy power.
Surge and Overcurrent Protection
Products include pluggable surge protection devices and adjustable electronic overcurrent protection, ensuring safety and reliability in electrical systems.
Products include pluggable surge protection devices and adjustable electronic overcurrent protection, ensuring safety and reliability in electrical systems.
EMI Filters
Several series of EMI filters are available, including 3-phase filters with and without neutral, designed to reduce electromagnetic interference in electrical systems.
Several series of EMI filters are available, including 3-phase filters with and without neutral, designed to reduce electromagnetic interference in electrical systems.
Signal Conditioners
The catalogue offers programmable and analog signal converters, passive galvanic isolators, and temperature converters, providing solutions for signal processing and conditioning.
The catalogue offers programmable and analog signal converters, passive galvanic isolators, and temperature converters, providing solutions for signal processing and conditioning.
Relay Modules
Both electromechanical and solid state relay modules are available, with options for single and multiple relay configurations, catering to various control and automation needs.
Both electromechanical and solid state relay modules are available, with options for single and multiple relay configurations, catering to various control and automation needs.
Accessories
Additional accessories include electronic circuit housings, jumpers, marking systems, and DIN rail clamps, supporting the installation and maintenance of electrical panels.
Additional accessories include electronic circuit housings, jumpers, marking systems, and DIN rail clamps, supporting the installation and maintenance of electrical panels.
Company Overview
Cabur srl, established in 1952, is a leading manufacturer of electrical panel terminal blocks. The company focuses on quality, functionality, and environmental respect, achieving ISO 9001 and ISO 14001 certifications. Cabur has invested in a state-of-the-art production site in Altare, Italy, to enhance production efficiency.
Cabur srl, established in 1952, is a leading manufacturer of electrical panel terminal blocks. The company focuses on quality, functionality, and environmental respect, achieving ISO 9001 and ISO 14001 certifications. Cabur has invested in a state-of-the-art production site in Altare, Italy, to enhance production efficiency.
Product Offerings
Cabur offers a wide range of products including terminal blocks for electrical boards, electronic products for electrical boards, connection systems for photovoltaic plants, and industrial marking systems. These products are designed to meet severe installation conditions and are available through major wholesalers.
Cabur offers a wide range of products including terminal blocks for electrical boards, electronic products for electrical boards, connection systems for photovoltaic plants, and industrial marking systems. These products are designed to meet severe installation conditions and are available through major wholesalers.
Quality and Environmental Management
Cabur's quality management system is certified under ISO 9001:2008, ensuring high standards in design, development, manufacturing, and customer service. The environmental management system is certified under ISO 14001:2004, reflecting Cabur's commitment to ecological improvement and environmental protection.
Cabur's quality management system is certified under ISO 9001:2008, ensuring high standards in design, development, manufacturing, and customer service. The environmental management system is certified under ISO 14001:2004, reflecting Cabur's commitment to ecological improvement and environmental protection.
Certifications
Cabur holds several certifications, including ISO 9001:2008 for quality management, ISO 14001:2004 for environmental management, and Class 1E qualification for nuclear power generating stations.
Cabur holds several certifications, including ISO 9001:2008 for quality management, ISO 14001:2004 for environmental management, and Class 1E qualification for nuclear power generating stations.
Customer Engagement
Cabur provides comprehensive technical documentation and support through its website, offering real-time information, technical advice, and access to quality certificates. Customers can register for newsletters to stay updated on new products and documentation.
Cabur provides comprehensive technical documentation and support through its website, offering real-time information, technical advice, and access to quality certificates. Customers can register for newsletters to stay updated on new products and documentation.
Data Privacy
Cabur adheres to Italian Legislative Decree no. 196/2003 for data protection, ensuring the safe handling of personal data for various purposes, including service provision and commercial communication.
Cabur adheres to Italian Legislative Decree no. 196/2003 for data protection, ensuring the safe handling of personal data for various purposes, including service provision and commercial communication.
RoHS Directive Compliance
The 2002/95/CE Directive (RoHS) limits hazardous materials in electronic devices. Although Cabur's products are generally excluded from RoHS due to their use in fixed industrial tools, the company is aligning its production to meet RoHS requirements, aiming for zero tolerance of dangerous substances.
The 2002/95/CE Directive (RoHS) limits hazardous materials in electronic devices. Although Cabur's products are generally excluded from RoHS due to their use in fixed industrial tools, the company is aligning its production to meet RoHS requirements, aiming for zero tolerance of dangerous substances.
Product Standards and Certifications
Cabur products comply with EU standards, bearing necessary CE markings. The company was the first in Italy to achieve UL508 certification for industrial automation and hazardous locations, alongside EMC certification.
Cabur products comply with EU standards, bearing necessary CE markings. The company was the first in Italy to achieve UL508 certification for industrial automation and hazardous locations, alongside EMC certification.
Innovation and Research
Cabur has pioneered several advancements in power supply technology, including the first Italian switching power supplies for Din-rail and high-efficiency power supplies with resonant technology. Recent innovations include "Synchronous Rectifier" technology, enhancing efficiency and reducing operating temperatures.
Cabur has pioneered several advancements in power supply technology, including the first Italian switching power supplies for Din-rail and high-efficiency power supplies with resonant technology. Recent innovations include "Synchronous Rectifier" technology, enhancing efficiency and reducing operating temperatures.
Power Supply Features
Cabur power supplies offer high overload capacity, intelligent alarm contacts for system communication, and comprehensive protection against overloads, short circuits, and overvoltage. They are designed to handle high peak currents and maintain reliability under varying conditions.
Cabur power supplies offer high overload capacity, intelligent alarm contacts for system communication, and comprehensive protection against overloads, short circuits, and overvoltage. They are designed to handle high peak currents and maintain reliability under varying conditions.
Technical Specifications
Cabur power supplies operate within a temperature range of -20 to +50°C without derating, exceeding UL508 standards. They feature a hold-up time greater than 10ms, ensuring stability during voltage fluctuations. MTBF calculations are provided with realistic life expectancy estimates.
Cabur power supplies operate within a temperature range of -20 to +50°C without derating, exceeding UL508 standards. They feature a hold-up time greater than 10ms, ensuring stability during voltage fluctuations. MTBF calculations are provided with realistic life expectancy estimates.
Custom Solutions and Environmental Commitment
Cabur offers custom power supply solutions and technical support to meet specific client needs. The company is committed to environmental sustainability, holding the UNI EN ISO 14001 certification for eco-friendly production practices.
Cabur offers custom power supply solutions and technical support to meet specific client needs. The company is committed to environmental sustainability, holding the UNI EN ISO 14001 certification for eco-friendly production practices.
Connection and Usage Guidelines
Cabur power supplies can be connected in parallel or series for increased power or voltage. Specific guidelines are provided for redundant parallel connections and series connections to ensure optimal performance and safety.
Cabur power supplies can be connected in parallel or series for increased power or voltage. Specific guidelines are provided for redundant parallel connections and series connections to ensure optimal performance and safety.
Product Selection Tables
Tables are provided to assist in selecting power supplies based on output voltage, current, and input voltage, ensuring compatibility with application requirements.
Tables are provided to assist in selecting power supplies based on output voltage, current, and input voltage, ensuring compatibility with application requirements.
Specifications
1. MTBF: >750,000 hours at 25°C according to SN 29500 / >250,000 hours according to MIL Std. HDBK 217F.
2. Overvoltage Category/Pollution Degree: II / 2.
3. Protection Degree: IP 20 according to IEC 529, EN60529.
4. Connection Terminal: 2.5 mm² fixed screw type.
5. Housing Material: UL94V-0 plastic material.
6. Approximate Weight: 200 g (7.06 oz).
7. Mounting: Vertical on rail with 10 mm spacing between components.
1. MTBF: >750,000 hours at 25°C according to SN 29500 / >250,000 hours according to MIL Std. HDBK 217F.
2. Overvoltage Category/Pollution Degree: II / 2.
3. Protection Degree: IP 20 according to IEC 529, EN60529.
4. Connection Terminal: 2.5 mm² fixed screw type.
5. Housing Material: UL94V-0 plastic material.
6. Approximate Weight: 200 g (7.06 oz).
7. Mounting: Vertical on rail with 10 mm spacing between components.
Mounting Accessories
1. Mounting Rail Type: IEC60715/TH35-7.5 PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB.
2. Notes: Depth dimension includes the DIN rail clamp.
1. Mounting Rail Type: IEC60715/TH35-7.5 PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB.
2. Notes: Depth dimension includes the DIN rail clamp.
Technical Data
Input
1. Rated Voltage: 120–230 Vac (range 90–264 Vac / 100–370 Vdc).
2. Frequency: 47–63 Hz.
3. Current: 1.25 A / 0.8 A ± 10% at nominal Iout.
4. Inrush Peak Current: < 15 A.
5. Power Factor: > 0.6.
6. Internal Protection Fuse: T 2 A not replaceable.
7. External Protection: 4 A C characteristic circuit breaker, fuse: T 3.15 A.
Input
1. Rated Voltage: 120–230 Vac (range 90–264 Vac / 100–370 Vdc).
2. Frequency: 47–63 Hz.
3. Current: 1.25 A / 0.8 A ± 10% at nominal Iout.
4. Inrush Peak Current: < 15 A.
5. Power Factor: > 0.6.
6. Internal Protection Fuse: T 2 A not replaceable.
7. External Protection: 4 A C characteristic circuit breaker, fuse: T 3.15 A.
Output
1. Rated Voltage: 24 Vdc.
2. Adjustable Range: 24–27.5 Vdc.
3. Continuous Current: 3 A at 55°C.
4. Overload Limit: 4 A.
5. Load Regulation: < 1%.
6. Ripple: ≤ 60 mVpp.
7. Hold Up Time: >15 ms / >30 ms at nominal input.
8. Protections: Overload/short circuit with auto reset, over temperature protection.
9. Status Display: “DC OK” green LED.
10. Parallel Connection: Possible with external ORing diode for redundancy.
1. Rated Voltage: 24 Vdc.
2. Adjustable Range: 24–27.5 Vdc.
3. Continuous Current: 3 A at 55°C.
4. Overload Limit: 4 A.
5. Load Regulation: < 1%.
6. Ripple: ≤ 60 mVpp.
7. Hold Up Time: >15 ms / >30 ms at nominal input.
8. Protections: Overload/short circuit with auto reset, over temperature protection.
9. Status Display: “DC OK” green LED.
10. Parallel Connection: Possible with external ORing diode for redundancy.
General Technical Data
1. Efficiency: >87% / >89% at 120 / 230 Vac.
2. Dissipated Power: 10.4 W / 8.6 W.
3. Operating Temperature Range: –20 to +60°C, with derating over 55°C.
4. Isolation: Input/output 3 KVac / 60 s SELV output.
5. Standards/Approvals: EN50178, EN61558, EN60950, IEC950, UL508.
6. EMC Standards: EN61000-6-2, EN61000-6-4, EN61000-4-2 to EN61000-4-11.
1. Efficiency: >87% / >89% at 120 / 230 Vac.
2. Dissipated Power: 10.4 W / 8.6 W.
3. Operating Temperature Range: –20 to +60°C, with derating over 55°C.
4. Isolation: Input/output 3 KVac / 60 s SELV output.
5. Standards/Approvals: EN50178, EN61558, EN60950, IEC950, UL508.
6. EMC Standards: EN61000-6-2, EN61000-6-4, EN61000-4-2 to EN61000-4-11.
Applications and Features
1. Suitable for industrial automation and process control panels.
2. High efficiency and compact dimensions.
3. Designed for heavy-duty applications and civil automation.
4. Power boost capability for overload and short-circuit conditions.
5. Integrated smart alarm contact for voltage drop warnings.
6. New models for DC engines with high peak power supply.
1. Suitable for industrial automation and process control panels.
2. High efficiency and compact dimensions.
3. Designed for heavy-duty applications and civil automation.
4. Power boost capability for overload and short-circuit conditions.
5. Integrated smart alarm contact for voltage drop warnings.
6. New models for DC engines with high peak power supply.
Overview
This document provides technical specifications and details for various single-phase switching power supplies with outputs ranging from 240W to 500W. These power supplies are designed for use in SELV and PELV circuits and include features such as short circuit, overload, over temperature, and overvoltage protections.
This document provides technical specifications and details for various single-phase switching power supplies with outputs ranging from 240W to 500W. These power supplies are designed for use in SELV and PELV circuits and include features such as short circuit, overload, over temperature, and overvoltage protections.
Specifications
- Input Voltage: 120-230 Vac with a range of 90-132 Vac / 185-264 Vac / 300-345 Vdc.
- Frequency: 47-63 Hz.
- Efficiency: Ranges from >86% to >92% depending on the model and input voltage.
- Operating Temperature: -20 to +60°C with derating over 45°C.
- Protection Degree: IP 20 according to IEC 529, EN60529.
Output Technical Data
- Output Voltage: Options include 24 Vdc, 12-15 Vdc, 48 Vdc, and 72 Vdc depending on the model.
- Continuous Current: Varies by model, e.g., 10 A @ 45°C for 240W models, 20 A @ 45°C for 500W models.
- Overload Limit: Typically allows for higher current for a short duration, e.g., 15 A for >30 s with Uout >90% Un.
- Short Circuit Peak Current: Models can handle peak currents, e.g., >25 A for 400 ms.
- Load Regulation: Generally <1%.
- Ripple: ≤ 50 mVpp at nominal ratings.
General Technical Data
- Isolation: Input/output isolation of 3 KVac for 60 s, input/ground isolation of 1.5 KVac for 60 s, and output/ground isolation of 0.5 KVac for 60 s.
- Standards/Approvals: Complies with EN50178, EN61558, EN60950, IEC950, UL508, UL60950, and various EMC standards.
- MTBF: >500,000 hours at 25°C according to SN 29500.
Mounting and Accessories
- Vertical mounting on rail with a 10 mm spacing between components.
- Compatible with mounting rail types according to IEC60715 standards.
Additional Features
- Redundant parallel connection possible with internal or external ORing diodes.
- Status display includes "DC OK" green LED, "Overload" red LED, and alarm contacts.
Specifications
The document outlines various standards and specifications for power supplies, including compliance with EN60950, UL508, and multiple EMC standards such as EN61000-6-2 and EN61000-6-4. The Mean Time Between Failures (MTBF) is specified as over 500,000 hours according to SN 29500 and over 150,000 hours according to MIL Std. HDBK 217F. The overvoltage category is II with a pollution degree of 2, and the protection degree is IP 20 according to IEC 529 and EN60529.
The document outlines various standards and specifications for power supplies, including compliance with EN60950, UL508, and multiple EMC standards such as EN61000-6-2 and EN61000-6-4. The Mean Time Between Failures (MTBF) is specified as over 500,000 hours according to SN 29500 and over 150,000 hours according to MIL Std. HDBK 217F. The overvoltage category is II with a pollution degree of 2, and the protection degree is IP 20 according to IEC 529 and EN60529.
Technical Data
The power supplies have a single-phase input range of 90-264 Vac and DC 100-345 Vdc, with a frequency range of 47-63 Hz. They feature short circuit, overload, over temperature, and overvoltage protections. The output voltage is adjustable between 23-27.5 Vdc, with a continuous current of 5 A at 60°C and an overload limit of 8 A. The efficiency is greater than 87% at 120 Vac and greater than 90% at 230 Vac.
The power supplies have a single-phase input range of 90-264 Vac and DC 100-345 Vdc, with a frequency range of 47-63 Hz. They feature short circuit, overload, over temperature, and overvoltage protections. The output voltage is adjustable between 23-27.5 Vdc, with a continuous current of 5 A at 60°C and an overload limit of 8 A. The efficiency is greater than 87% at 120 Vac and greater than 90% at 230 Vac.
Mounting and Housing
The power supplies are designed for vertical mounting on rails, with a 10 mm spacing between components. The housing is made of aluminum, and the connection terminals are fixed screw type for 4 and 6 mm² cables. The approximate weight is 1.3 kg.
The power supplies are designed for vertical mounting on rails, with a 10 mm spacing between components. The housing is made of aluminum, and the connection terminals are fixed screw type for 4 and 6 mm² cables. The approximate weight is 1.3 kg.
Applications and Features
These power supplies are suitable for civil automation and general installation applications, particularly in SELV and PELV circuits. They offer high efficiency, reducing energy consumption and operating temperatures, and are equipped with protections against surges from inductive loads. The design ensures compact dimensions and excellent ventilation.
These power supplies are suitable for civil automation and general installation applications, particularly in SELV and PELV circuits. They offer high efficiency, reducing energy consumption and operating temperatures, and are equipped with protections against surges from inductive loads. The design ensures compact dimensions and excellent ventilation.
Additional Features
The power supplies support parallel and redundant parallel connections with an external ORing diode. They have a status display with a "DC OK" green LED and are capable of delivering over 40% of nominal current for sustained periods, ensuring continuity of supply.
The power supplies support parallel and redundant parallel connections with an external ORing diode. They have a status display with a "DC OK" green LED and are capable of delivering over 40% of nominal current for sustained periods, ensuring continuity of supply.
Overview
This document provides technical specifications and features of a series of power supplies designed for industrial environments. These power supplies offer higher reliability compared to single-phase power supplies, with components capable of operating at 900 V, making them more resistant to voltage peaks.
This document provides technical specifications and features of a series of power supplies designed for industrial environments. These power supplies offer higher reliability compared to single-phase power supplies, with components capable of operating at 900 V, making them more resistant to voltage peaks.
Specifications
- Input Voltage Range: 185 to 550 Vac, suitable for single-phase 230V and three-phase 400V networks.
- Output Power: Available in 120 W and 240 W versions.
- Output Voltage: Options include 24 Vdc, 12-15 Vdc, and 48 Vdc.
- Efficiency: Greater than 86% for 230/400 Vac input.
- Operating Temperature: -20 to +60°C, with derating over 50°C.
- Protection: Short circuit, overload, over temperature, input and output overvoltage protections.
- Input Voltage Range: 185 to 550 Vac, suitable for single-phase 230V and three-phase 400V networks.
- Output Power: Available in 120 W and 240 W versions.
- Output Voltage: Options include 24 Vdc, 12-15 Vdc, and 48 Vdc.
- Efficiency: Greater than 86% for 230/400 Vac input.
- Operating Temperature: -20 to +60°C, with derating over 50°C.
- Protection: Short circuit, overload, over temperature, input and output overvoltage protections.
Key Features
- High reliability and immunity against overvoltage due to AC line failures.
- High efficiency reduces energy consumption and operating temperature.
- Capable of handling power boosts up to 150% during overloads and 250% during short circuits.
- Compact design with excellent ventilation and IP20 protection.
- Suitable for SELV and PELV circuit applications.
- High reliability and immunity against overvoltage due to AC line failures.
- High efficiency reduces energy consumption and operating temperature.
- Capable of handling power boosts up to 150% during overloads and 250% during short circuits.
- Compact design with excellent ventilation and IP20 protection.
- Suitable for SELV and PELV circuit applications.
Applications
- Industrial automation and process control.
- Heavy-duty applications.
- Civil automation systems.
- Industrial automation and process control.
- Heavy-duty applications.
- Civil automation systems.
Technical Data
- Frequency: 47 to 63 Hz.
- Inrush Peak Current: Less than 20 A.
- Power Factor: Greater than 0.65.
- External Protection: Circuit breaker and fuse specifications provided.
- Frequency: 47 to 63 Hz.
- Inrush Peak Current: Less than 20 A.
- Power Factor: Greater than 0.65.
- External Protection: Circuit breaker and fuse specifications provided.
Standards and Approvals
- Complies with EN50178, EN61558, EN60950, IEC950, UL508.
- EMC Standards: EN61000-6-2, EN61000-6-4, EN61000-4-2 to EN61000-4-11.
- Complies with EN50178, EN61558, EN60950, IEC950, UL508.
- EMC Standards: EN61000-6-2, EN61000-6-4, EN61000-4-2 to EN61000-4-11.
Mounting and Installation
- Vertical mounting on rail with specified spacing between components.
- Connection terminals are 2.5 mm² pluggable screw type.
- Vertical mounting on rail with specified spacing between components.
- Connection terminals are 2.5 mm² pluggable screw type.
Conclusion
This series of power supplies is designed for high reliability and efficiency in industrial settings, offering flexibility in installation and robust protection features to ensure safety and performance.
This series of power supplies is designed for high reliability and efficiency in industrial settings, offering flexibility in installation and robust protection features to ensure safety and performance.
Overview
This document provides technical specifications and features of various power supply models designed for industrial automation and machinery applications. The power supplies are characterized by high efficiency, low dissipated power, and suitability for SELV and PELV circuits.
This document provides technical specifications and features of various power supply models designed for industrial automation and machinery applications. The power supplies are characterized by high efficiency, low dissipated power, and suitability for SELV and PELV circuits.
Specifications
- Input Technical Data: Rated voltage ranges from 185-550 Vac / 270-770 Vdc, with a frequency of 47-63 Hz. Inrush peak current is less than 20 A, and the power factor is greater than 0.65.
- Output Technical Data: Output voltages include 24 Vdc, 12-15 Vdc, 48 Vdc, and 72 Vdc, with adjustable ranges. Continuous current varies by model, with overload limits and short circuit peak currents specified.
- General Technical Data: Efficiency exceeds 88%, with dissipated power ranging from 27 W to 34 W. Operating temperature is from -20 to +60°C, with derating over 50°C. Isolation standards and EMC standards are specified.
Features
- High efficiency and low power dissipation.
- Redundant versions available for certain models.
- Protection features include overload, short circuit, and over temperature protection.
- Parallel and redundant parallel connections are possible with external ORing diodes.
- Compact design with IP20 protection and compliance with international standards.
Applications These power supplies are suitable for machinery automation, industrial automation, and applications requiring high reliability and selectivity of surge protection devices on DC lines.
Additional Features
- Active electronic ASSIL protection for surge suppression and inrush current limiting.
- Integrated smart alarm contact for voltage monitoring.
- Wide range of power ratings and output voltages for various applications.
- Power boost capability for handling overloads and short circuits.
Overview
This document provides technical specifications and details for a range of three-phase switching power supplies with varying output power capacities. These power supplies are designed for industrial applications, offering high efficiency, multiple protections, and compatibility with SELV and PELV circuits.
This document provides technical specifications and details for a range of three-phase switching power supplies with varying output power capacities. These power supplies are designed for industrial applications, offering high efficiency, multiple protections, and compatibility with SELV and PELV circuits.
Specifications
- Operating Temperature: -20°C to +60°C, with derating required above 50°C.
- Isolation: Input/output isolation at 3 KVac for 60 seconds, input/ground at 2 KVac, and output/ground at 0.5 KVac.
- Standards and Approvals: Compliant with EN50178, EN61558, EN60950, IEC950, UL508, and EMC standards including EN61000 series.
- Protection Degree: IP 20 according to IEC 529 and EN60529.
- Connection Terminals: Fixed screw type, supporting 4-6 mm² cables.
- Housing Material: Aluminium.
Technical Data
- Input Voltage: 3x 400–500 Vac, with a range of 340–550 Vac.
- Frequency: 47 to 63 Hz.
- Power Factor: Greater than 0.75 with Power Factor Correction (PFC).
- Efficiency: Ranges from 91% to 95% depending on the model and input voltage.
- MTBF: Greater than 500,000 hours at 25°C according to SN 29500.
Output Data
- Output Voltage: Options include 24 Vdc, 48 Vdc, and 72 Vdc, with adjustable ranges.
- Continuous Current: Varies by model, with derating required above 50°C.
- Overload and Short Circuit Protection: Includes hiccup mode with auto reset and over temperature protection.
- Parallel and Redundant Connections: Supported with external or internal ORing diodes.
Mounting and Accessories
- Mounting: Vertical on rail with a 10 mm spacing between components.
- Mounting Rail Types: Compatible with IEC60715/TH35-7.5 and G32 standards.
Additional Features
- High outrush current capability for starting heavy loads.
- Input protection via ASSIL circuit (Surge Suppressor and Inrush Limiter).
- Status Display: Includes "DC OK" green LED, "Overload" red LED, and alarm contacts.
Specifications
The document outlines the technical specifications for various power supply units, including the Series CSG2401 and DC/DC insulated converters. The Series CSG2401 features a three-phase input of 340-550 Vac, with an output power of 2400 W. It includes input and output protections, high efficiency, and is suitable for PELV circuits. The DC/DC converters have a wide range of DC inputs and offer short circuit, overload, and over temperature protection.
The document outlines the technical specifications for various power supply units, including the Series CSG2401 and DC/DC insulated converters. The Series CSG2401 features a three-phase input of 340-550 Vac, with an output power of 2400 W. It includes input and output protections, high efficiency, and is suitable for PELV circuits. The DC/DC converters have a wide range of DC inputs and offer short circuit, overload, and over temperature protection.
Mounting Accessories
Mounting rail types are specified according to IEC60715 standards, with specific types for different models. The document advises on spacing requirements for mounting, recommending 60 mm spacing for the Series CSG2401 and 10 mm for DC/DC converters.
Mounting rail types are specified according to IEC60715 standards, with specific types for different models. The document advises on spacing requirements for mounting, recommending 60 mm spacing for the Series CSG2401 and 10 mm for DC/DC converters.
Applications
The Series CSG2401 is equipped with a microprocessor for programmable functions, displayed on a front panel. It includes features like battery charging, remote sensing, and communication ports for remote monitoring.
The Series CSG2401 is equipped with a microprocessor for programmable functions, displayed on a front panel. It includes features like battery charging, remote sensing, and communication ports for remote monitoring.
Input and Output Protection
Input protection includes an ASSIL circuit for overvoltage protection, PFC circuit failure protection, and phase control systems. Output protection allows for current limit selection and includes options for overload and short circuit protection.
Input protection includes an ASSIL circuit for overvoltage protection, PFC circuit failure protection, and phase control systems. Output protection allows for current limit selection and includes options for overload and short circuit protection.
Additional Functions
Additional features include battery charging, remote sensing, remote switch-off, auxiliary voltage, temperature control, and communication ports.
Additional features include battery charging, remote sensing, remote switch-off, auxiliary voltage, temperature control, and communication ports.
Technical Data
Detailed technical data is provided for input and output specifications, including voltage ranges, current ratings, efficiency, and isolation standards. The document also includes information on EMC standards and protection degrees.
Detailed technical data is provided for input and output specifications, including voltage ranges, current ratings, efficiency, and isolation standards. The document also includes information on EMC standards and protection degrees.
Notes
Various notes are provided regarding derating at higher temperatures, insulation testing requirements, and specific conditions for peak current and voltage drop.
Various notes are provided regarding derating at higher temperatures, insulation testing requirements, and specific conditions for peak current and voltage drop.
Standards and Approvals The document references several standards including IEC950, EN60950 for safety, and multiple EMC standards such as EN61000-6-2 and EN61000-6-4, ensuring compliance with electromagnetic compatibility requirements.
Technical Specifications The power supplies have a Mean Time Between Failures (MTBF) of over 500,000 hours at 25°C according to SN 29500, and over 150,000 hours according to MIL Std. HDBK 217F. They are designed for overvoltage category II and pollution degree 2, with a protection degree of IP 20.
Mounting and Connection The devices are mounted vertically on a rail with specific spacing requirements. Connection terminals are 2.5 mm² pluggable or fixed screw types, depending on the model.
Input and Output Technical Data The power supplies operate with an input voltage of 24 Vac and provide an output of 24 Vdc with adjustable ranges. They include protections against short circuit, overload, and over temperature, and feature a "DC OK" status display.
General Technical Data Efficiency is greater than 90%, with dissipated power varying by model. Operating temperature ranges from -10°C to +60°C, with derating applied over certain temperatures. Input and output are not isolated, requiring external transformers for safety isolation.
Applications and Warnings Suitable for SELV and PELV circuits, with specific grounding instructions to prevent damage. The document warns against connecting certain poles to ground simultaneously.
Additional Features Some models allow for parallel and redundant parallel connections with external ORing diodes. The document also includes information on battery charging accessories and filtered power supplies without transformers.
Battery Charger and Power Supply Module
Specifications
The module can be used as a battery charger with a Cabur power supply, supporting both 12Vdc and 24Vdc batteries with maximum charging currents of 0.5A and 1A respectively. It includes a diode for decoupling and a resistance to limit current, ensuring longer battery life. A fuse protects against short circuits.
Specifications
The module can be used as a battery charger with a Cabur power supply, supporting both 12Vdc and 24Vdc batteries with maximum charging currents of 0.5A and 1A respectively. It includes a diode for decoupling and a resistance to limit current, ensuring longer battery life. A fuse protects against short circuits.
Procedures
1. Battery Charging: The module allows simultaneous battery charging and load feeding. It disconnects the load if the battery voltage drops below a certain threshold to prevent deep discharge.
2. Parallel Connection: The module can connect two power supplies in parallel by removing a specific fuse.
1. Battery Charging: The module allows simultaneous battery charging and load feeding. It disconnects the load if the battery voltage drops below a certain threshold to prevent deep discharge.
2. Parallel Connection: The module can connect two power supplies in parallel by removing a specific fuse.
Technical Data
- Input Voltage: 26-28.5 Vdc or 12-15 Vdc
- Rated Current: ≥ 3 A
- Load Voltage: 26-28 Vdc or 10-15 Vdc
- Max Load Current: 15 A
- Charging Current: Selectable 2 A or 4 A
- Battery Disconnection Voltage: ≤ 18 Vdc or ≤ 9.2 Vdc
- Protection: Reverse polarity, short circuit, overload, deep discharge
- Operating Temperature: –10 to +50°C
- Standards: IEC 664-1, DIN VDE
- Input Voltage: 26-28.5 Vdc or 12-15 Vdc
- Rated Current: ≥ 3 A
- Load Voltage: 26-28 Vdc or 10-15 Vdc
- Max Load Current: 15 A
- Charging Current: Selectable 2 A or 4 A
- Battery Disconnection Voltage: ≤ 18 Vdc or ≤ 9.2 Vdc
- Protection: Reverse polarity, short circuit, overload, deep discharge
- Operating Temperature: –10 to +50°C
- Standards: IEC 664-1, DIN VDE
Features
- LED indicators for power supply, battery status, and load status
- Alarm relay for remote system status
- Suitable for DIN rail installation
- LED indicators for power supply, battery status, and load status
- Alarm relay for remote system status
- Suitable for DIN rail installation
Motor Brake Controller (MBC2K)
Specifications
The MBC2K is a microprocessor-controlled device for motor braking, capable of handling up to 2kW per module, with the ability to connect up to four modules for a total of 8kW. It dissipates energy through an external resistor to manage overvoltage on the DC Bus.
Specifications
The MBC2K is a microprocessor-controlled device for motor braking, capable of handling up to 2kW per module, with the ability to connect up to four modules for a total of 8kW. It dissipates energy through an external resistor to manage overvoltage on the DC Bus.
Setup and Operation
The MBC2K requires setup through menu navigation using buttons. It includes settings for brake intervention threshold, hysteresis, and master/slave mode for parallel connections.
The MBC2K requires setup through menu navigation using buttons. It includes settings for brake intervention threshold, hysteresis, and master/slave mode for parallel connections.
Protections and Indicators
- Active protections against overvoltage, undervoltage, and overtemperature
- LED display for DC Bus voltage and error codes
- Alarm LED and relay for remote failure indication
- Active protections against overvoltage, undervoltage, and overtemperature
- LED display for DC Bus voltage and error codes
- Alarm LED and relay for remote failure indication
Technical Data
- DC Bus Voltage Range: 24-100 Vdc
- Maximum Braking Current: 50 A for 1 s
- Brake Activation Voltage: Adjustable in 20 steps
- User Interface: Push buttons and LED displays
- Operating Temperature: –20 to +60°C
- DC Bus Voltage Range: 24-100 Vdc
- Maximum Braking Current: 50 A for 1 s
- Brake Activation Voltage: Adjustable in 20 steps
- User Interface: Push buttons and LED displays
- Operating Temperature: –20 to +60°C
Applications
The modules are suitable for use in systems requiring battery backup, motor braking, and redundant power supply connections, with features ensuring protection and reliability.
The modules are suitable for use in systems requiring battery backup, motor braking, and redundant power supply connections, with features ensuring protection and reliability.
Specifications
- Braking current: Greater than 80 A
- Overload: Braking time exceeds 1 second
- Parallel Connection: Up to 4 units can be connected in parallel for a total braking power of 8kW, requiring 4 x 2kW braking resistors.
- Dissipated Power: 20 W
- Operating Temperature Range: 0 to +70°C
- Input/Ground Isolation: 500 Vac for 60 seconds
- Standards/Approvals: IEC950, EN60950 for SELV use up to 60Vdc; not classifiable as SELV above 60Vdc
- EMC Standards: EN55011 Class B
- Overvoltage Category/Pollution Degree: I / 2
- Protection Degree: IP 20 IEC 529, EN60529
- Connection Terminal: 1.5 and 2.5 mm² pluggable screw type
- Housing Material: Aluminium
- Approximate Weight: 200 g
- Mounting Information: Vertical on rail, allow 10 mm spacing between adjacent components
- Braking current: Greater than 80 A
- Overload: Braking time exceeds 1 second
- Parallel Connection: Up to 4 units can be connected in parallel for a total braking power of 8kW, requiring 4 x 2kW braking resistors.
- Dissipated Power: 20 W
- Operating Temperature Range: 0 to +70°C
- Input/Ground Isolation: 500 Vac for 60 seconds
- Standards/Approvals: IEC950, EN60950 for SELV use up to 60Vdc; not classifiable as SELV above 60Vdc
- EMC Standards: EN55011 Class B
- Overvoltage Category/Pollution Degree: I / 2
- Protection Degree: IP 20 IEC 529, EN60529
- Connection Terminal: 1.5 and 2.5 mm² pluggable screw type
- Housing Material: Aluminium
- Approximate Weight: 200 g
- Mounting Information: Vertical on rail, allow 10 mm spacing between adjacent components
Mounting Accessories
- Mounting Rail Type: According to IEC60715/TH35-7.5 PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB
- Mounting Rail Type: According to IEC60715/TH35-7.5 PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB
Device Description
The MBC2K is a microprocessor-controlled device designed to automatically insert a power resistor into the DC BUS for motor braking. It dissipates energy delivered by the motor in an external resistor, damping over-voltage on the DC Bus. The device offers several protections for reliable operation and can be connected to any DC Bus within 24Vdc and 100Vdc. It features a 2.5 digits 7 segments LED display for DC Bus voltage display and error messages.
The MBC2K is a microprocessor-controlled device designed to automatically insert a power resistor into the DC BUS for motor braking. It dissipates energy delivered by the motor in an external resistor, damping over-voltage on the DC Bus. The device offers several protections for reliable operation and can be connected to any DC Bus within 24Vdc and 100Vdc. It features a 2.5 digits 7 segments LED display for DC Bus voltage display and error messages.
Applications
The MBC2K is suitable for applications requiring motor braking with enhanced safety and reliability features.
The MBC2K is suitable for applications requiring motor braking with enhanced safety and reliability features.
See more
Catalog excerpts

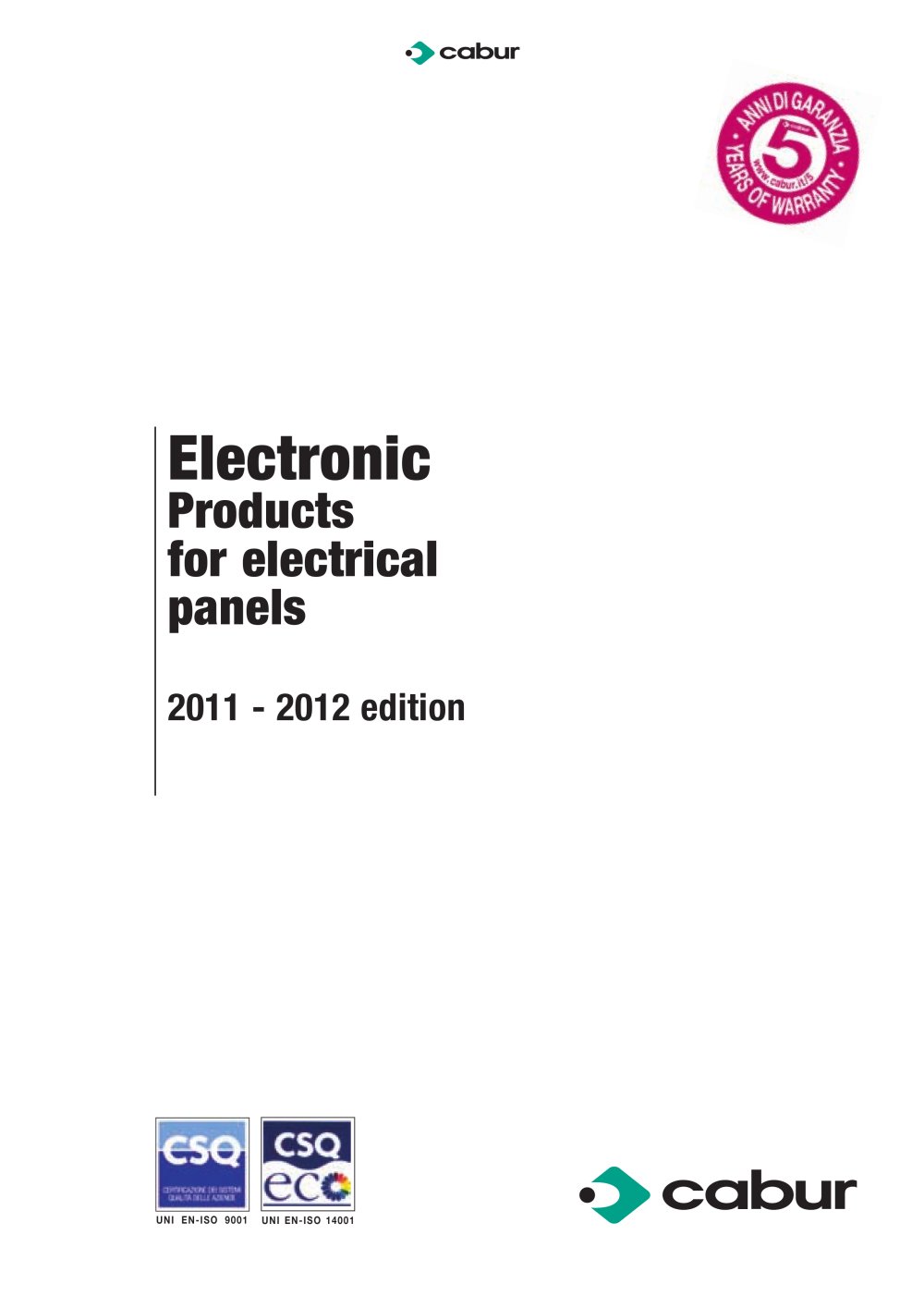

UNI EN-ISO 9001 UNI EN-ISO 14001 Electronic Products for electrical panels 2011 - 2012 edition
Open the catalog to page 1
2 WARNING If not specified, the technical data in this catalogue are typical and measured at 25°C (77°F), 230 Vac, Unom, Vdc and rated current; ripple is measured at 20 MHz with probe connected to 0.1 ìF. The technical data in this catalogue are typical and are not binding for Cabur and may be modified without prior notice, simply for production or improvement and/or evolution reason. Please contact our technical-commercial offices for any relevant confirmation or updates. For more informations visit our web site www.cabur.eu. Catalogue printed on FSC certified, ecological and recyclable matt...
Open the catalog to page 2
3 Quality wins! That’s guaranteed! Quality, reliability, high technology, know-how, efficient use are all aspects and features of a product of primary importance. For the safety and piece of mind of its Customers, Cabur designs and creates its Electronic Products with great care, using selected materials and components, in perfect harmony with the Quality choices made by the company in the last few decades. That’s why we can guarantee our electronic products for five years. Cabur’s electronic products warranty Cabur guarantees its electronic products against manufacturing defects and faults as...
Open the catalog to page 3
4 Introduction Cabur . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 6 Products range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 8 Web site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 9 Quality and environment. . . . ....
Open the catalog to page 4
5 Frequency to analog signal converters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 97 Auxiliary power supply for sensors and potentiometers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 98 NPN and PNP signal inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pag. 99 Electromechanical relay modules Single relay quick selection table . . . . . . . . . . . . ....
Open the catalog to page 5
6 The data provided will be stored and used by Cabur srl in both paper and electronic form, both directly and through a reliable service provider, safely and with attention to privacy. At any time, you may exercise your rights pursuant to Italian Legislative Decree no. 196/2003, by writing to the data manager at the following address: Cabur srl, with offices in Altare (SV), Località Isola Grande 45 - Italy. I authorize the use of my data in accordance with Italian Legislative Decree no. 196/2003, as amended, for: • The provision of goods and services (necessary to send documentation) YES NO •...
Open the catalog to page 6
7 1952 2011 UNI EN-ISO 14001 UNI EN-ISO 9001 SP29 A6 A6 SP29 A6 SP5 Altare Shortly after its foundation, back in 1952, Cabur became a leading manufacturer of electrical panel terminal blocks, by focusing on installers’ needs and providing leading edge technical solutions that, in some cases, would become popular in the industry. In particular, in our product design and manufacturing, we have pioneered a quality focus on raw materials, functionality, reliability over time, and respect for the environment. That is the reason why Cabur was granted Class 1E (Equipment for Nuclear Power Generating...
Open the catalog to page 7
8 With over 50 years of experience, Cabur develops and produces, by its own designs, a wide range of products for the electrical industry, providing the best in working conditions, in terms of operability and reliability. Current production of: • Terminal blocks for electrical boards • Electronic products for electrical boards • Installation products • Connection systems for photovoltaic equipments • Industrial marking systems Fully meets users’ varied and complex installation needs. Our varied and diversified production represents the optimal synthesis of Cabur’s long experience as partner of...
Open the catalog to page 8
9 www.cabur.eu web site O n our web site, our customers and industry operators can always get up-to-date information on new products and sales offers. All data sheets of Cabur product range, including those in this Catalogue, are available on our online catalogue featuring advanced user-friendly search functions. Moreover, on our web site you can: • ask our specialists for technical information and application advice • contact our sales staff and ask them for estimates • download manuals and other technical literature • get access to quality and compliance certificates • look at our latest sales...
Open the catalog to page 9
10 UNI EN-ISO 14001 UNI EN-ISO 9001 CERTIFICATO N. CERTIFICA TE N. SI CERTIFICA CHE IL SISTEMA QUALITA' DI WE HEREBY CERTlFY THAT THE QUALlTY SYSTEM OPERATED BY CABUR SRL LOCALITA' ISOLA GRANDE 45 -17041 ALTARE (SV) UNITA' OPERATIVE OPERA TI VE UNITS LOCALlTA'ISOLA GRANDE 45 -17041 ALTARE (SV) E' CONFORME ALLA NORMA IS IN COMPLIANCE WITH THE STANDARD PER LE SEGUENTI ATIIVITA' FOR THE FOLLOWING ACTIVITIES Progettazione, sviluppo, costruzione e commercializzazione di morsetteria e prodotti elettrici ed elettronici per bassa tensione Design, development, manufacturing, marketing and sale of low...
Open the catalog to page 10
11 The 2002/95/CE Directive, known as RoHS, sets limits to the use of specific dangerous materials in electric and electronic devices. The Directive applies exclusively to devices included in the following categories, as listed in attachment 1A of 2002/96/EC Directive, also knows as WEEE, excluding categories 8 and 9. 1. Large appliances excluding fixed ones 2. Small appliances 3. IT and telecommunication appliances 4. Consumers’ appliances 5. Lighting appliances 6. Electric and electronic tools, excluding large fixed industrial tools 7. Toys and devices for hobbies and sports 10. Vending machines...
Open the catalog to page 11All Cabur catalogs and technical brochures
MarKing Pro1 Page
Photovoltaic Catalog108 Pages
terminal blocks catalog200 Pages
products for installation28 Pages
industrial marking systems64 Pages
Archived catalogs
PHOTOVOLTAIC PLANTS108 Pages
Industrial marking systems76 Pages
Power supplies - short form16 Pages
Electromechanical relay modules29 Pages
Terminals11 Pages
Photovoltaic connection systems72 Pages
Accessories for mounting rails4 Pages
Related Searches
- AMOT connector
- AMOT DC power supply
- AMOT AC/DC power supply
- Electrical cable
- AMOT data connector
- Rectangular housing
- Copper cable
- Copper electrical cable
- AMOT surge arrester
- AMOT round connector
- Power cable
- AMOT circular connector
- AMOT single-output power supply
- AMOT DIN rail surge arrester
- AMOT switching relay
- Flexible cable
- AMOT type 2 surge arrester
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
