Data Sheet Typ 8656

Data Sheet Typ 8656
7Pages

Catalog excerpts

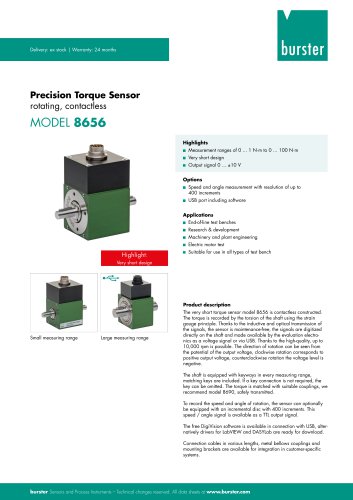

Delivery: ex stock | Warranty: 24 months rotating, contactless Highlights ■ Measurement ranges of 0 ... 1 N-m to 0 ... 100 N-m ■ Very short design ■ Speed and angle measurement with resolution of up to 400 increments ■ USB port including software ■ End-of-line test benches ■ Machinery and plant engineering ■ Electric motor test ■ Suitable for use in all types of test bench Product description The very short torque sensor model 8656 is contactless constructed. The torque is recorded by the torsion of the shaft using the strain gauge principle. Thanks to the inductive and optical transmission of the signals, the sensor is maintenance-free, the signals are digitized directly on the shaft and made available by the evaluation electronics as a voltage signal or via USB. Thanks to the high-quality, up to 10,000 rpm is possible. The direction of rotation can be seen from the potential of the output voltage, clockwise rotation corresponds to positive output voltage, counterclockwise rotation the voltage level is negative. The shaft is equipped with keyways in every measuring range, matching keys are included. If a key connection is not required, the key can be omitted. The torque is matched with suitable couplings, we recommend model 8690, safely transmitted. To record the speed and angle of rotation, the sensor can optionally be equipped with an incremental disc with 400 increments. This speed / angle signal is available as a TTL output signal. The free DigiVision software is available in connection with USB, alternatively drivers for LabVIEW and DASYLab are ready for download. Connection cables in various lengths, metal bellows couplings and mounting brackets are available for integration in customer-specific systems. burster Sensors and Process Instruments - Technical changes reserved. All data sheets at www.burster.com

Open the catalog to page 1

Measuring range Electrical values Rated supply voltage range Output voltage at ± rated torque Output resistance Insulation resistance Update rate Ripple Control signal Environmental conditions on the zero point 0.015 % F.S./K on the sensitivity 0.015 % F.S./K Range of operating and nominal temperature Sensitivity of temperature effects Mechanical values Dynamic overload safe Max. operation torque Breakaway torque Alternating load Maximum limit axial load Maximum limit radial load Spring constant recommended 70 % of nominal torque Mass moment of inertia measuring side Mass moment of inertia...

Open the catalog to page 2

Dimensional drawing Measurement side Measuring range* For detailed dimensions you can find sensor CAD data on our website www.burster.com. burster Sensors and Process Instruments - Technical changes reserved. All data sheets at www.burster.com

Open the catalog to page 3

12-pin connector or mini USB with screw connection for configuration / measurement (option, USB connection cable included) Metal bellow couplings The mounting block has a central hole and special design allowing a range of options for reliable cable attachment. Two clips ensure the sensor is fixed securely. For further information please see accessories data sheet 8600-Z02X Couplings are necessary for correct installation. We recommend torsionally free metal bellows couplings to achieve an optimum compensation of misalignment. The couplings are characterized by their excellent torsional...

Open the catalog to page 4

Torque sensor with integrated rotational speed / angular displacement measurement 8656 torque sensors are optionally available with integrated rotational speed and angular displacement measurement. Two pulse channels with TTL level - channel A and channel B - are always available. For clockwise rotation (looking at the test side), channel A leads channel B with a phase shift of 90°. Only one pulse channel is needed for speed measurement. For angular displacement measurement (or direction detection), both channels need to be evaluated. To achieve the maximum angular resolution, four-edge...

Open the catalog to page 5

burster Sensors and Process Instruments - Technical changes reserved. All data sheets at www.burster.com

Open the catalog to page 6

Order Code Measuring Range r Without angle/speed measurement r Speed/angle measurement 400 increments Output signals Rounded shaft ends with keyway burster Sensors and Process Instruments - Technical changes reserved. All data sheets at www.burster.com

Open the catalog to page 7
