Data Sheet Model 8718
2Pages

{{requestButtons}}

Catalog excerpts

Data Sheet Model 8718 - 1

Potentiometric Displacement code: Sensor Delivery: Application The high resolution allows linear measurements to be accurately sized even in large measurement ranges. Conversion of rotatory and translational motion by spindles, wires or others is not necessary for direct displacement measurement. Areas of application are: ► Hydraulic and pneumatic cylinders ► Detection of positions on coordinate inspection machines ► Displacement of plungers, knee levers or extruders ► Coil and de coil lengths ► Strokes on chassis ► Metering strokes ■ Measurement ranges from 0 ... 100 mm to 0 ... 2000 mm ■ Non-linearity up to 0.05 % F.S. ■ Compact design, without rod ■ Displacement speed up to 10 m/s ■ Durability >108 operations Description Displacement sensors model 8718, using a resistance track made of conductive plastic material, are suitable for direct, accurate and absolute measurements of displacements and lengths. Special processes are applied to give the resistance tracks low friction, low tendency to stick/slip, resistance to abrasion and long-term stability. The vibration-cushioned slider allows a clear signal output even by slight shocks or high operating speeds up to 10 m/s. Due to its simple design the sensor is largely protected against electrical interference fields (Al-housing), it keeps the measured value after a power failure and does not generate any electrical interference. A magnetically hold steel band covers the whole measurement device gap free. Any lateral forces are avoided by a ball joint coupling mounted to the sensor. Technical changes reserved. All data sheets at www.burster.com burster praezisionsmesstechnik gmbh & co kg Germany www.burster.com Talstr. 1-5 Gernsbach 76593 Phone +49-7224-6450 info@bursler.com

Open the catalog to page 1
Data Sheet Model 8718 - 2

Technical Data Meas. Range Dimensional drawing Electrical values Tolerance of resistance: ± 20 % Operating current in slider circuit: recomm. < 0.1 |jA Environmental conditions Operation temperature range: Storage temperature range: Temperature coefficient of resistance: Temperature coefficient of output voltage: Mechan ical values Resolution: Durability: Displacement force (horizontal): Displacement speed: Vibration: Acceleration in operation: Shock resistance: Weight of the slider: Protection class: Material: acc. EN 60529 slider stainless steel AISI303 housing anodized aluminium...

Open the catalog to page 2

All Burster präzisionsmesstechnik gmbh & co kg catalogs and technical brochures

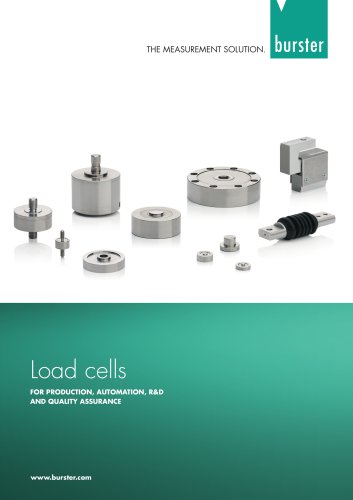

  1. Load cells
