Standars Band Saw

Product catalog summary

Overview: The document provides technical specifications and options for three models of a product, each with over 30 versions. The models are categorized as Standard or Artisan.

Specifications:

Wheels are 4 mm thick and oversized.
Features include a rack and pinion guide, blade tension indicator, and transport wheels on the standard model.

Models and Versions:

R 45, R 55, and R 65 models with cutting diameters of 450 mm, 550 mm, and 650 mm respectively.
Available in fixed or mobile versions, with electric options of 220V or 380V, thermal options, tractor power take-off, and mixed electric + 3-point options.
Standard and Artisan versions available for each model.

Technical Data:

Cutting height ranges from 270 mm to 400 mm depending on the model.
Cutting width ranges from 440 mm to 640 mm.
Blade length varies from 3200 mm to 4540 mm.
Table dimensions and suction connection diameter are specified for each model.
Motor power options include three-phase and single-phase, with additional options for gasoline motors.
Net weight varies by model, ranging from 150 kg to 260 kg.

Additional Features:

Automatic blade braking in less than 10 seconds on all versions.
Options for direct drive or belt drive.

Contact Information: Chauvency St-Hubert, F-55600 Montmedy, Tel: 03 29 80 13 32, Fax: 03 29 80 23 63.

Catalog excerpts

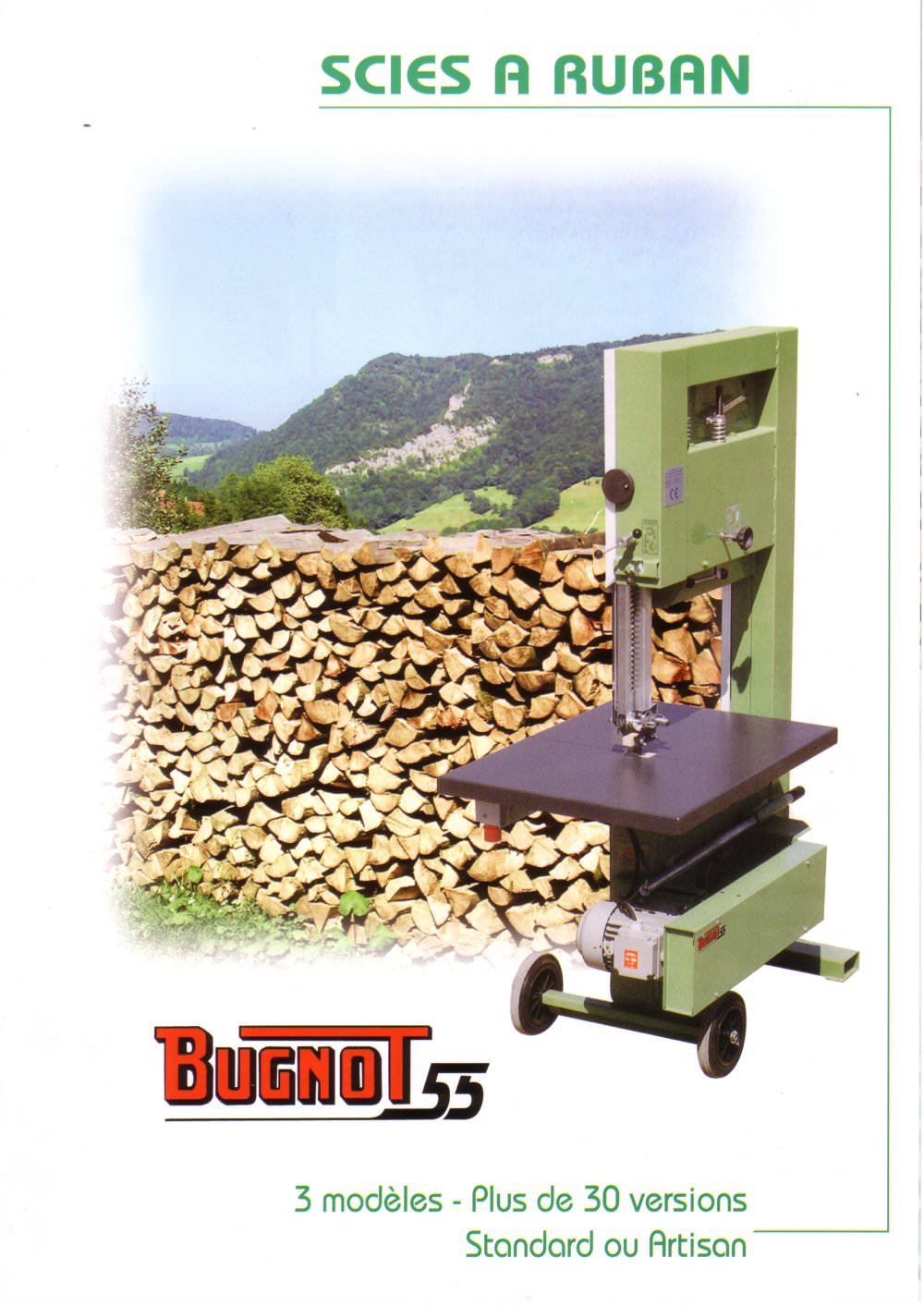

SCICS RUBRN R 3 modèlesPlus 30 versions de Stondord llrtison ou

Open the catalog to page 1

• Volont en acier embouti de 4 mm • Rati surd i mens ionne en acier • Indicateur de tension de lame • Roulettes de transport sur modele standard Standard Artisan Guide-lame inferieur Table mobile Voir tarif Voir tarif Voir tarif Voir tarif • Prise de force tracteur • Mixte : electrique + 3 points • Remorque routiere

Open the catalog to page 2

Freinage automatique de la lome en moins de 10 secondes sur toutes les versions, des la mise en arret ou I'ouverture du capot MOD€l€ RRTISRN Prise de force tracteur et version mixte : 3 points

Open the catalog to page 3

■ EntraTnement par prise directe - Direktantrieb □ EntraTnement par poulies courroies - Mit Keilriemenantrieb

Open the catalog to page 4
