BUG-O SYSTEMS offers non-metallic weld backings designed for full penetration welding. These backings are engineered to enhance welding efficiency by achieving X-ray quality welds with full penetration from one side, resulting in a uniform back bead of finished quality.
- Elimination of defects and costly rework.
- Removal of the need for gouging and backgrinding.
- Reduction in material handling requirements.
The weld backings are non-metallic, non-hygroscopic, and neutral, ensuring they do not become part of the finished weld. They support molten weld metal across a wide range of welding heats, facilitating one-sided one-pass and multi-pass welds.
The document provides detailed measurements for various configurations of the weld backings, including dimensions in both inches and millimeters. These specifications ensure compatibility with different welding setups.
BUG-O SYSTEMS' non-metallic weld backings are a reliable solution for achieving high-quality welds efficiently, minimizing the need for additional processing and handling.
Catalog excerpts

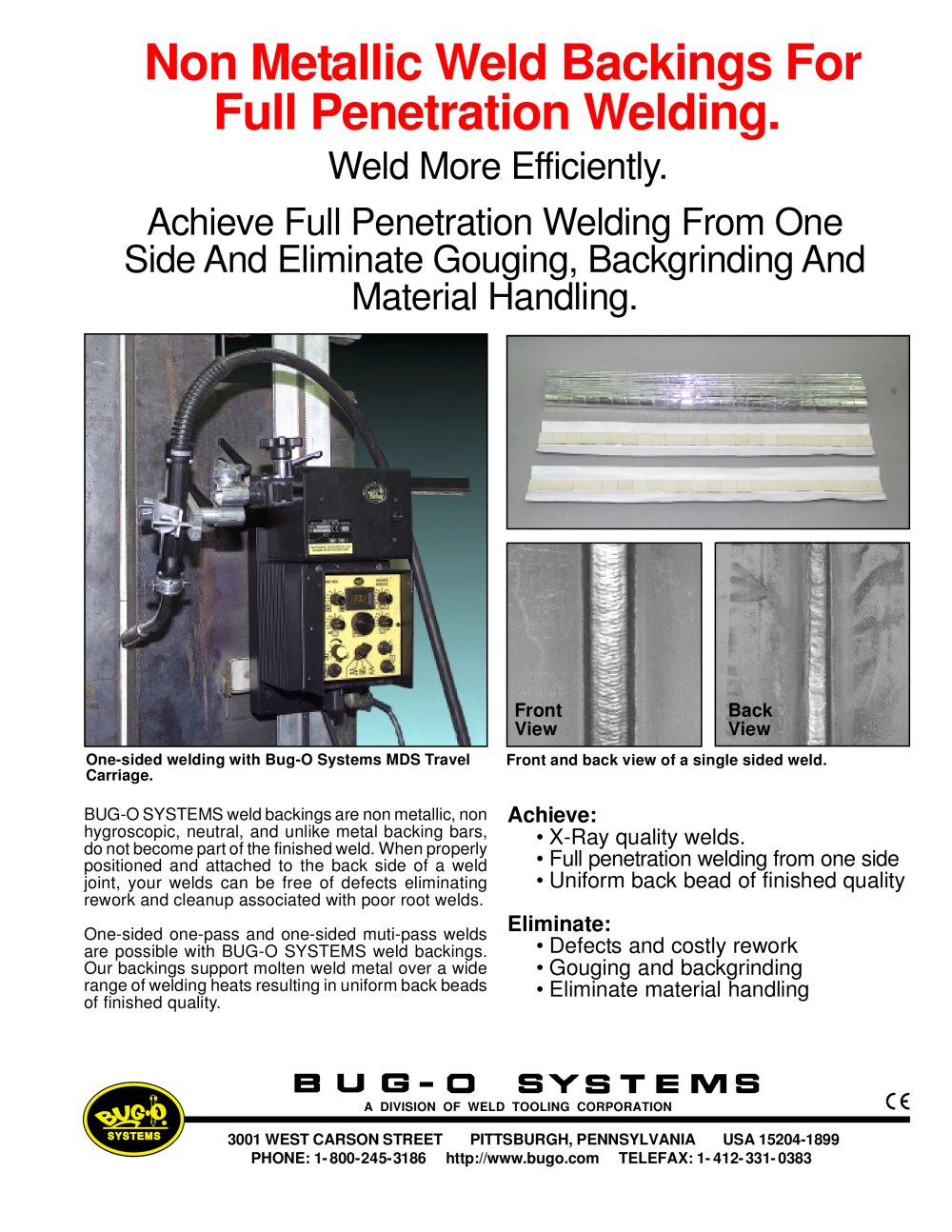

BackViewFrontView One-sided welding with Bug-O Systems MDS TravelCarriage. Front and back view of a single sided weld. BUG-O SYSTEMS weld backings are non metallic, nonhygroscopic, neutral, and unlike metal backing bars, do not become part of the finished weld. When properlypositioned and attached to the back side of a weldjoint, your welds can be free of defects eliminating rework and cleanup associated with poor root welds.One-sided one-pass and one-sided muti-pass weldsare possible with BUG-O SYSTEMS weld backings.Our backings support molten weld metal over a widerange of welding heats resulting in uniform back beads of finished quality. Achieve: X-Ray quality welds.?Full penetration welding from one side?Uniform back bead of finished quality Eliminate: ?Defects and costly rework ?Gouging and backgrinding?Eliminate material handling > A DIVISION OF WELD TOOLING CORPORATION 3001 WEST CARSON STREET PITTSBURGH, PENNSYLVANIA USA 15204-1899 PHONE: 1-800-245-3186 http://www.bugo.com TELEFAX: 1-412-331-0383 size="-3">
Open the catalog to page 1
0.04"1.02mm 0.44"11.18mm0.32"8.13mm1.23"31.24mm 24"609.6mm > A DIVISION OF WELD TOOLING CORPORATION 3.5"88.9mm > 3001 WEST CARSON STREET PITTSBURGH, PENNSYLVANIA USA 15204-1899 Weld Tooling Corp. ROM 1:16 Litho in U.S.A.LIT-CSM-BRO-0905 Other configurations are available. Please consult factoryfor more information. 3"25.4mm >
