Unibug II

Product catalog summary

Overview: The UNI-BUG II is a versatile welding and cutting system designed by BUG-O Systems. It is engineered to operate directly on workpieces up to 2 inches (51 mm) thick and can handle both straight lines and curves with a radius as small as 6 inches (152 mm). The system is lightweight, weighing only 14 lbs (6.5 kg), and is equipped with a built-in carrying handle for easy mounting and removal.

Specifications:

Power Requirements: Available in 120 VAC, 240 VAC, and 42 VAC models.
Dimensions: 8.00" L x 7.62" W x 10.50" H (203 x 194 x 267 mm).
Speed Range: 4 to 75 inches per minute (102 to 1905 mm/min).
Stiffener Size: Compatible with sizes from 0.188 inches (5 mm) to 2 inches (50.8 mm).
Net Weight: 14 lbs (6.36 kg); Shipping Weight: 16 lbs (7.27 kg).

Features:

Runs directly on the workpiece with a gear motor driving two wheels on one side and a bracket with four idler wheels on the other.
Capable of carrying a cutting torch or welding gun into tight areas without a track.
Supports a load capacity of 50 lbs (22.7 kg).
Front and rear rollers provide better control and traction.

Kits and Accessories:

UNI-BUG II Welding Kit: Available in 120 VAC, 240 VAC, and 42 VAC models, includes BUG-1855 Welding Group.
UNI-BUG II Cutting Group: Available in 120 VAC, 240 VAC, and 42 VAC models, includes BUG-1875 Cutting Group.
BUG-1780 Rigid Rail: For straight line applications, 40 inches (1 m) long, includes two ON/OFF magnets.

Applications: The UNI-BUG II is suitable for various applications including straight line burning, beam splitting, irregular shape burning and welding, fillet welding, circle burning and welding, and coaming welding.

Additional Information: The product is made in the USA and comes with a 3-year warranty. BUG-O Systems emphasizes honesty, integrity, and ethics in their service.

Catalog excerpts

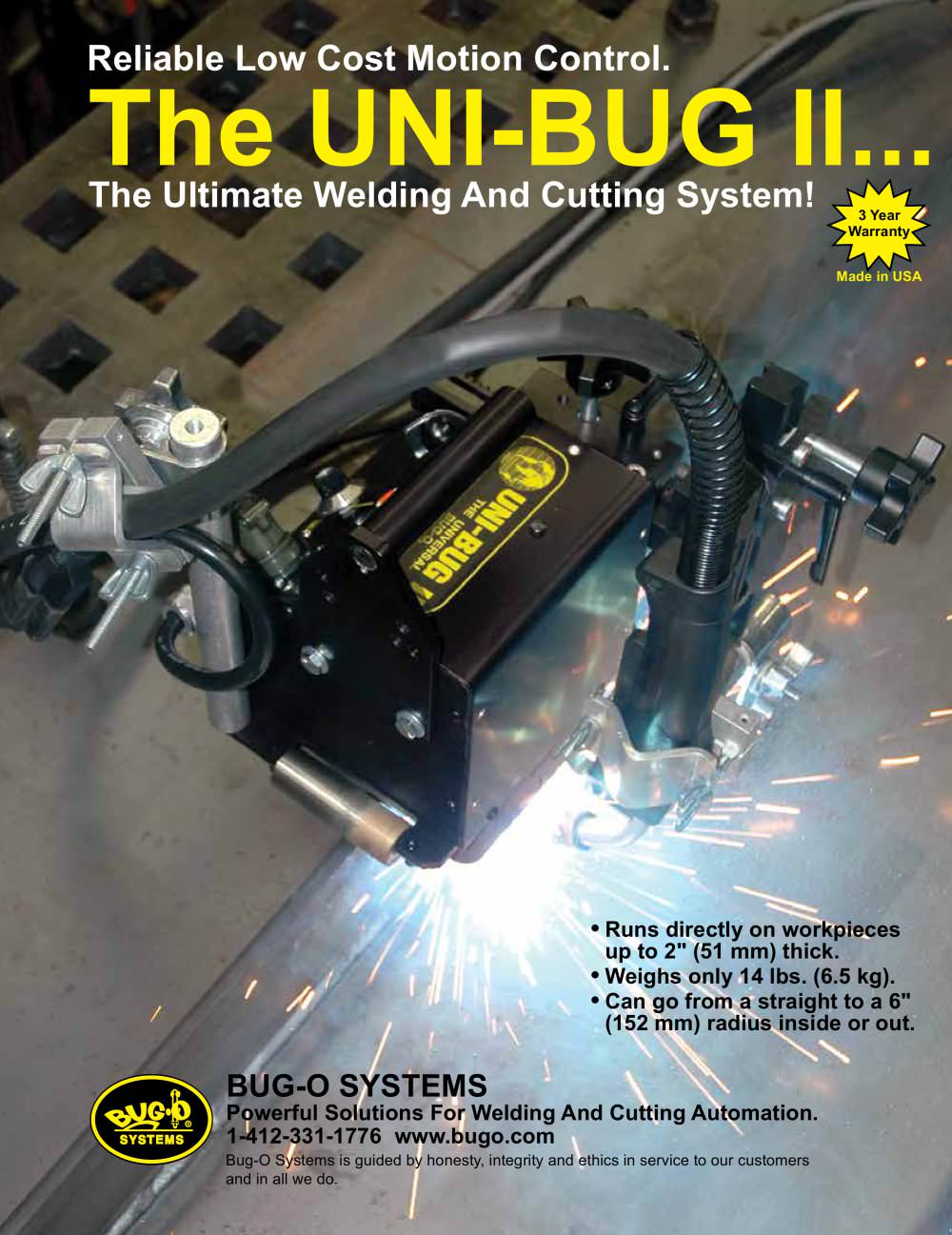

Reliable Low Cost Motion Control. THE UNIVERSAL BUG-O II Dimensions: Technical Data: Speed Range: Stiffener Size: Shipping Weight: 3 Year Warranty Made in USA The Ultimate Welding And Cutting System! NOTE: Minimum work height is 2" (50.8 mm). (4" [101.6 mm] when welding). Minimum work height with corner follower is 5" (127 mm). BUG-1780 Rigid Rail is available for straight line applications, 40" (1 m) long, includes two ON/OFF magnets. UNI-1100 UNI-BUG II Welding Kit UNI-1102 UNI-BUG II Welding Kit UNI-1104 UNI-BUG II Welding Kit UNI-1200 UNI-BUG II Cutting Group UNI-1202 UNI-BUG II Cutting Group UNI-1204 UNI-BUG II Cutting Group Shipping Weight: Shipping Weight: • Runs directly on workpieces up to 2" (51 mm) thick. • Weighs only 14 lbs. (6.5 kg). • Can go from a straight to a 6" (152 mm) radius inside or out. Welding Group UNI-BUG II Cutting Group UNI-BUG II A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. Litho in U.S.A. LIT- UBII-BRO-1014 ROM 1:16 BUG-O SYSTEMS Powerful Solutions For Welding And Cutting Automation. 1-412-331-1776 www.bugo.com Bug-O Systems is guided by honesty, integrity and ethics in service to our customers and in all we do.

Open the catalog to page 1

THE UNIVERSAL BUG-O II The UNI-BUG II will carry a cutting torch or welding gun into tight work areas or around very tight curves without the use of a track. The built-in carrying handle allows for easy mounting and removal at any point along the workpiece. The UNI-BUG II can weld or cut both straight lines and radii as small as 6" (152.4 mm). It will travel at speeds of 4-75 ipm (102-1905 mm/min) with a 50 lb. (22.7 kg) load capacity. The UNI-BUG II is designed to run on the edge of a bar or stiffener from .188" (5mm) up to 2" (50.8 mm) thick as shown below. (Torch holding devices not shown...

Open the catalog to page 2

Open the catalog to page 3

Open the catalog to page 4
