Uni-bug III

Product catalog summary

Overview: The Programmable UNI-BUG III Stitch Welder is a high-quality product from Bug-O Systems, designed for producing uniform, high-quality welds. It is suitable for various welding applications, including straight-line, beam splitting, irregular shapes, fillet, circle, and coaming welding.

Technical Specifications:

Power Requirements: Models UNI-2500, 2600, 2700, 2800, 2900 require 110 VAC; models UNI-2502, 2602, 2702, 2802, 2902 require 240 VAC; models UNI-2504, 2604, 2704, 2804, 2904 require 42 VAC.
Welding Speed Range: 4 to 75 inches per minute (102 to 1905 mm/min).
Skip Speed: 75 inches per minute (1905 mm/min).
Minimum Stiffener Height: 2 inches (50.8 mm).
Net Weight: 27 lb. (12.2 kg).
Shipping Weight: 36.5 lb. (16.6 kg).

Features:

The UNI-BUG III can perform both continuous and intermittent stitch welds, programmable by distance.
It mounts directly on the workpiece and is available in various kits tailored for specific steel profiles like flat bars, angles, channels, I-beams, and bulb flats.
Integrated weld contactor for automatic activation and deactivation of the wire feeder.

Model Variants:

UNI-2500 Series: Single torch kit for flat bars or stiffeners with a minimum height of 2 inches and a maximum width of 2 inches. Capable of turning on a radius down to 6 inches.
UNI-2600 Series: Dual torch kit similar to the UNI-2500 but equipped for two torches.
UNI-2700 Series: Dual torch bulb profile welding kit for bulb sizes from 140 mm to 430 mm.
UNI-2800 Series: Dual torch "T" profile welding kit for "T" profiles ranging from 2 to 6 inches in height.
UNI-2900 Series: Dual torch angle welding kit for angles with a minimum height of 4 inches and widths up to 4 inches.

Applications: The UNI-BUG III is versatile, suitable for straight-line burning and welding, beam splitting, irregular shape burning and welding, fillet welding, circle burning and welding, and coaming welding.

Company Information: Bug-O Systems, a division of Weld Tooling Corporation, has been providing welding and cutting automation solutions since 1948. The company emphasizes honesty, integrity, and ethics in its operations.

Warranty: The product comes with a 3-year warranty and is made in the USA.

Catalog excerpts

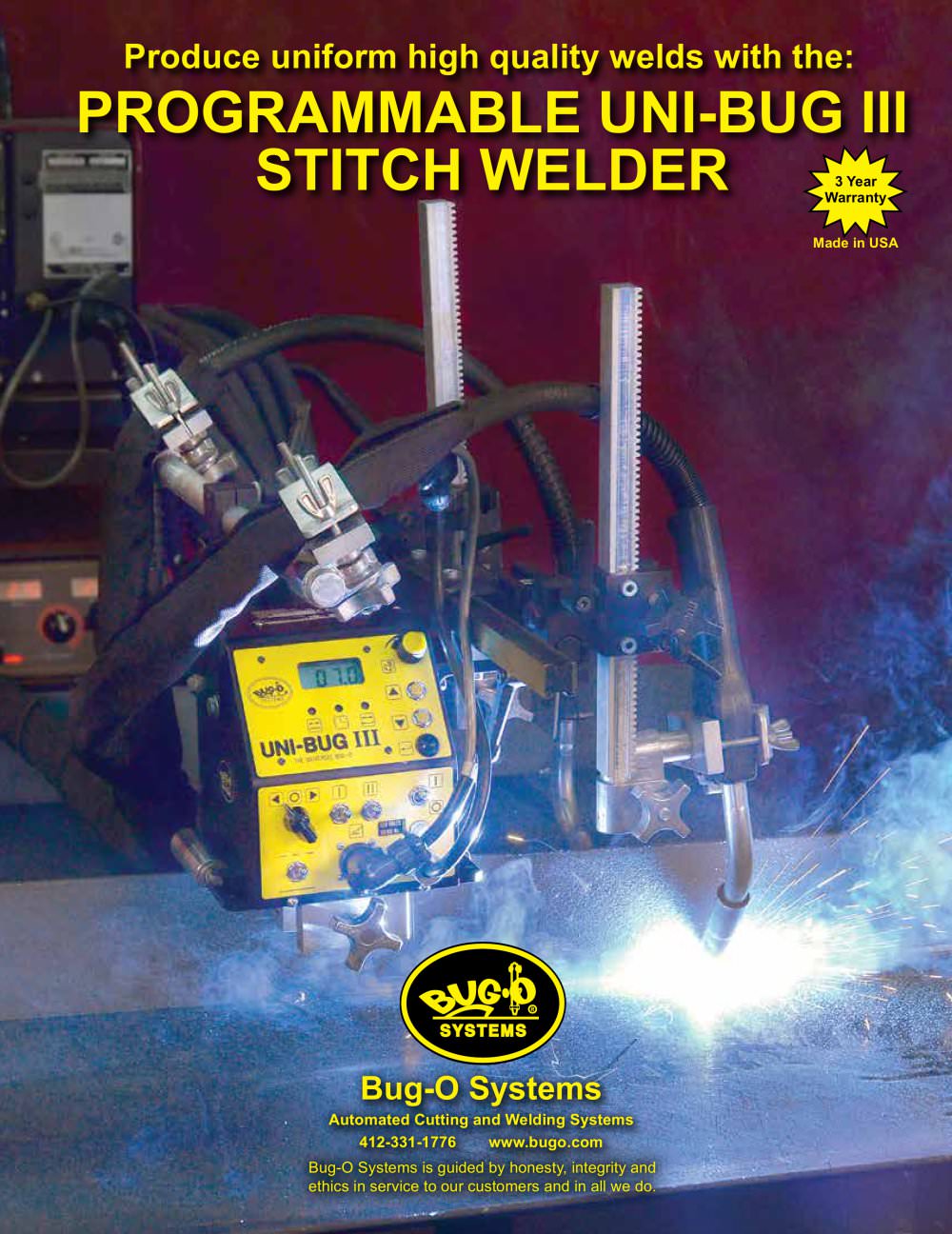

Produce uniform high quality welds with the: PROGRAMMABLE UNI-BUG III STITCH WELDER THE UNI-BUG III STITCH WELDER Typical UNI-BUG III applications: Fillet welding Straightline burning and welding Beam splitting Coaming welding (min. 5.5" (140 mm) height) Irregular shape burning and welding Shipping Weight: Circle burning and welding BUG-O SYSTEMS Welding & Cutting Automation Since 1948 www.bugo.com 412-331-1776 A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho in U.S.A. LIT-UBIII-BRO-1014 Bug-O Systems Automated Cutting and Welding Systems 412-331-1776 www.bugo.com Bug-O Systems is guided by honesty, integrity and ethics in service to our customers and in all we do.

Open the catalog to page 1

THE UNI-BUG III STITCH WELDER Produce stitch or continuous welds – Programmable by distance – Runs directly on the work piece – Carriage attachments designed to run a variety of structural steel profiles. The UNI-BUG III will make continuous or intermittent stitch welds. The machine will mount and run directly on the work piece. The unit is available in a variety of kits. Each kit is designed to fit on a specific steel profile such as flat bar, angle, channel, I-beams and bulb flats (holland profiles). The UNI-BUG III features stitch welding which is programmable by distance. If you require stitch...

Open the catalog to page 2

Open the catalog to page 3

Open the catalog to page 4
