Trac-Bug
Trac-Bug
- TRB-1000 Trac-Bug Oxy-Fuel: Includes a GOF-3025 quick action manifold and a CIR-1010-3, 32" twin hose assembly.
- TRB-1500 Trac-Bug Plasma: Includes Bug-5485 plasma contactor and cable support.
Catalog excerpts

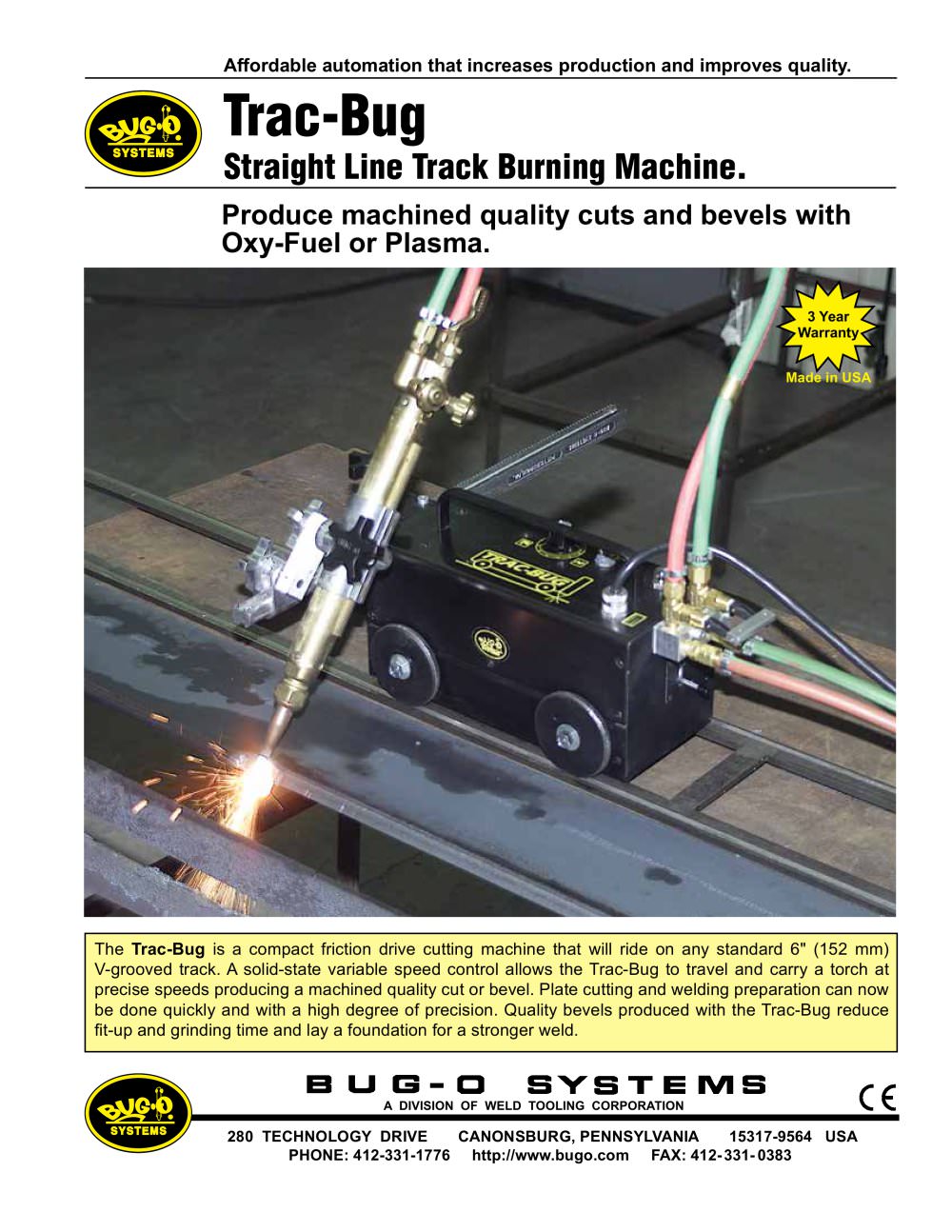

Affordable automation that increases production and improves quality. Straight Line Track Burning Machine. Produce machined quality cuts and bevels with Oxy-Fuel or Plasma. 3 Year Warranty Made in USA The Trac-Bug is a compact friction drive cutting machine that will ride on any standard 6" (152 mm) V-grooved track. A solid-state variable speed control allows the Trac-Bug to travel and carry a torch at precise speeds producing a machined quality cut or bevel. Plate cutting and welding preparation can now be done quickly and with a high degree of precision. Quality bevels produced with the Trac-Bug reduce fit-up and grinding time and lay a foundation for a stronger weld. A DIVISION OF WELD TOOLING CORPORATION 280 TECHNOLOGY DRIVE CANONSBURG, PENNSYLVANIA 15317-9564 USA PHONE: 412-331-1776 http://www.bugo.com FAX: 412- 331- 0383
Open the catalog to page 1
Trac-Bug The Trac-Bug is available in two standard configurations, for Oxy-Fuel cutting TRB-1000 and for Plasma Cutting TRB-1500. Each version is equipped with a 22-7/8" (581 mm) geared rack with 1-3/8" (47.6 mm) diameter machine torch holder that will accommodate a 32 pitch rack. TRB-1000 Trac-Bug Oxy-Fuel* Includes a GOF-3025 quick action manifold and a CIR-1010-3, 32" twin hose assembly. TRB-1500 Trac-Bug Plasma* Includes Bug-5485 plasma contactor and cable support. *Does not include track or torch. Technical Specifications: Travel Speed: 4-72 ipm (100-1800 mm/min) Net Weight: 33 lbs. (15...
